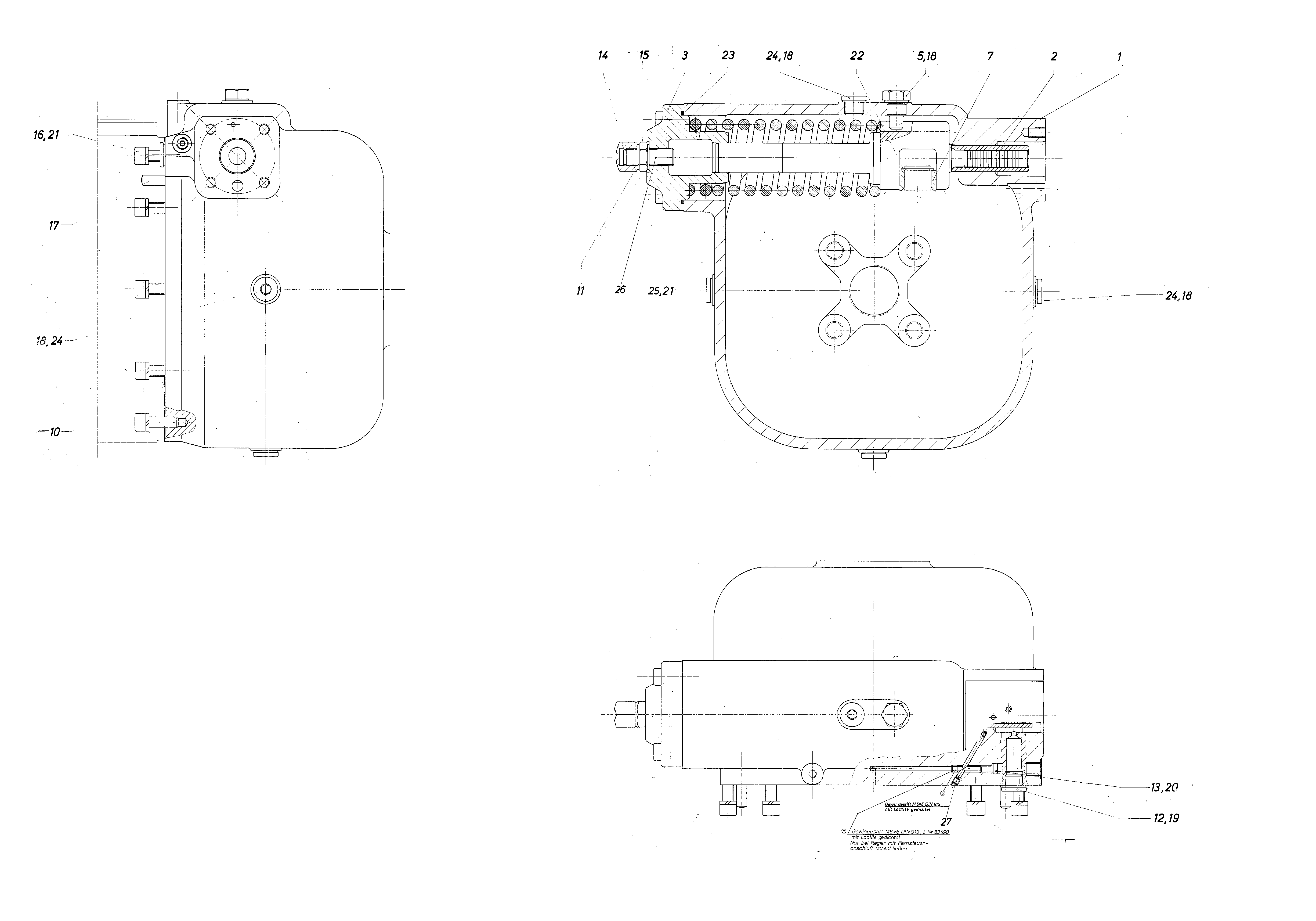

Assembly
PRESSURE REGULATORR909068069
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909063653 | CONTROL HOUSING | 1 | ||
| R909067899 | GOVERNOR ROD | 1 | ||
| 3 | R909007118 | COVER | 1 | |
| R909007232 | GUIDE SCREW | 1 | ||
| R909651536 | SLIDER | 1 | ||
| 11 | R909150512 | SEAL RINGD | 2 | |
| 12 | R909083221 | SCREW PLUG | 1 | |
| R909083018 | SOCKET HEAD CAP SCREW | 1 | ||
| R909085855 | CAP NUT | 1 | ||
| R909154311 | HEXAGON NUT | 1 | ||
| 16 | R909083061 | SOCKET HEAD CAP SCREW | 10 | |
| 17 | R909084722 | HALF LENGTH TPR GRVD DOWEL PIN | 2 | |
| R909152731 | SEAL RINGD | 5 | ||
| 19 | R909152729 | SEAL RINGD | 1 | |
| R909152271 | SEAL RINGD | 1 | ||
| R909083251 | SPRING LOCK WASHER | 14 | ||
| R909083355 | RETAINING RING | 1 | ||
| R909085568 | O-RINGD | 1 | ||
| R909083223 | SCREW PLUG | 4 | ||
| R909083062 | SOCKET HEAD CAP SCREW | 4 | ||
| 26 | R909086499 | SETSCREW | 1 | |
| R909083491 | SETSCREW | 1 |
