Assembly

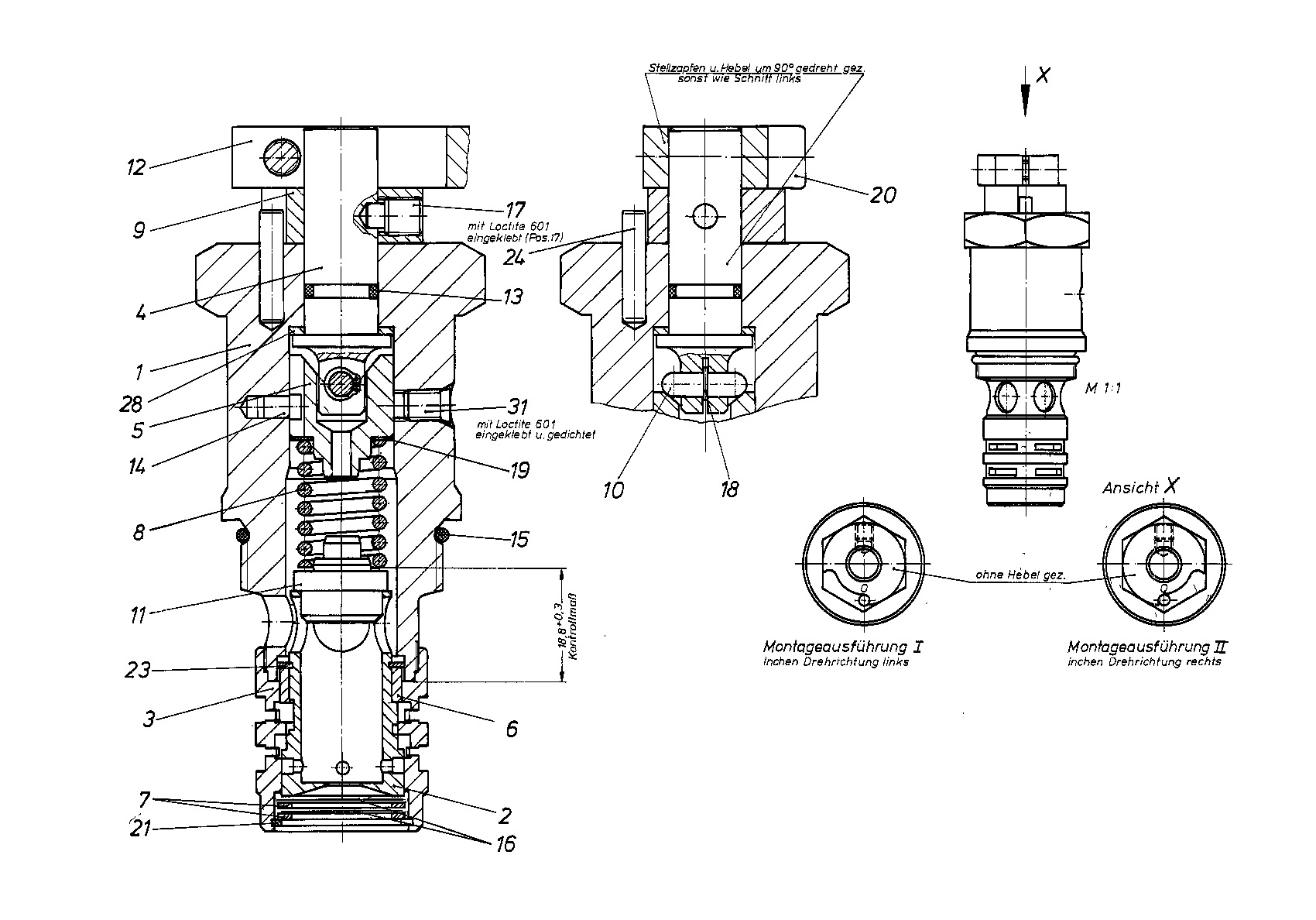

CONTROL CARTRIDGER909074303
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909069415 | CONTROL SCREW | 1 | ||
| R909079223 | DIFFERENTIAL PISTON | 1 | ||
| R909074199 | CONTROLLER PIPE | 1 | ||
| R909071442 | POSITIONING STUD | 1 | ||
| R909074383 | SPRING DISK | 1 | ||
| R909074341 | RING | 1 | ||
| R909069535 | WASHER | 2 | ||
| R909074292 | COMPRESSION SPRING | 1 | ||
| R909069537 | STOP RING | 1 | ||
| R909071349 | PIN | 1 | ||
| R909074382 | SPRING DISK | 1 | ||
| R909401723 | LEVER | 1 | ||
| R909085709 | O-RINGD | 1 | ||
| R909410125 | PIN | 1 | ||
| R909086731 | O-RINGD | 1 | ||
| R909153202 | WASHER | 2 | ||
| R909084523 | SETSCREW | 1 | ||
| R909151257 | RETAINING RING | 1 | ||
| R909153402 | SHIM RING | 1 | ||
| R909083012 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153850 | RETAINING RING | 1 | ||
| R909153847 | RETAINING RING | 1 | ||
| R913017230 | SLOTTED SPRING PIN | 1 | ||
| R909411076 | SUPPORTING DISC | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
