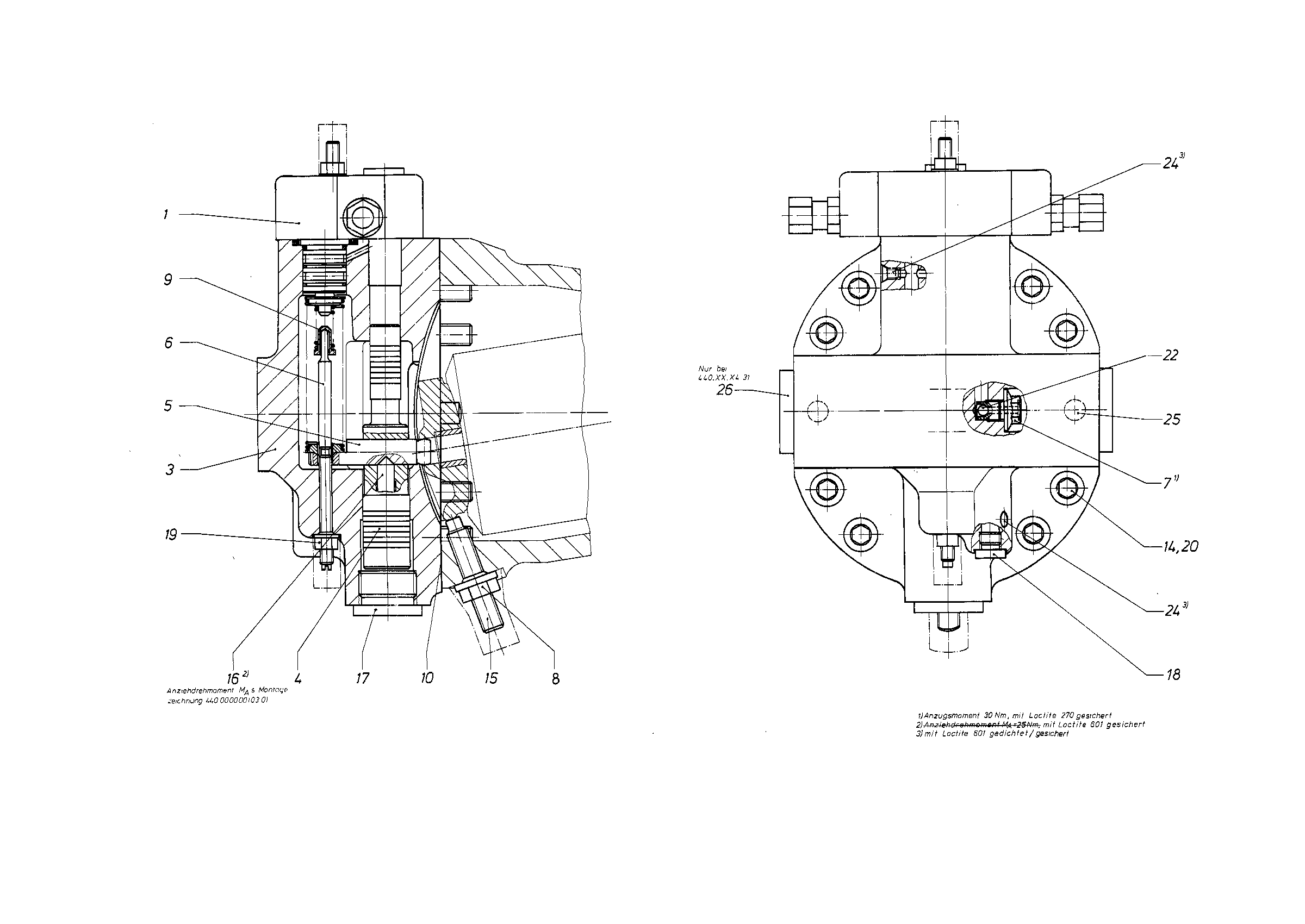

Assembly
CONTROLR909077711
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909077713 | CONTROL PART Assembly parts list →L | 1 | ||
| R909081405 | COVER PLATE | 1 | ||
| R909409580 | POSITIONING PISTON | 1 | ||
| 5 | R909409585 | POSITIONING STUD | 1 | |
| 6 | R909079967 | STUD BOLT | 1 | |
| 7 | R909074796 | SCREW | 2 | |
| R909152459 | SEALING NUTD | 1 | ||
| 9 | R909079757 | SPRING DISK | 1 | |
| R902011879 | SEALD | 1 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 8 | ||
| 15 | R909085976 | SETSCREW | 1 | |
| 15 | R909153075 | SETSCREW | 1 | |
| 15 | R909153975 | SETSCREW | 1 | |
| 15 | R909154041 | SETSCREW | 1 | |
| R909409591 | SETSCREW | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| 18 | R909153364 | SCREW PLUGD | 1 | |
| 19 | R909152425 | SEALING NUTD | 1 | |
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R909083258 | BALL | 2 | ||
| 24 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| 25 | R913009666 | STRAIGHT PIN | 2 |
