Assembly

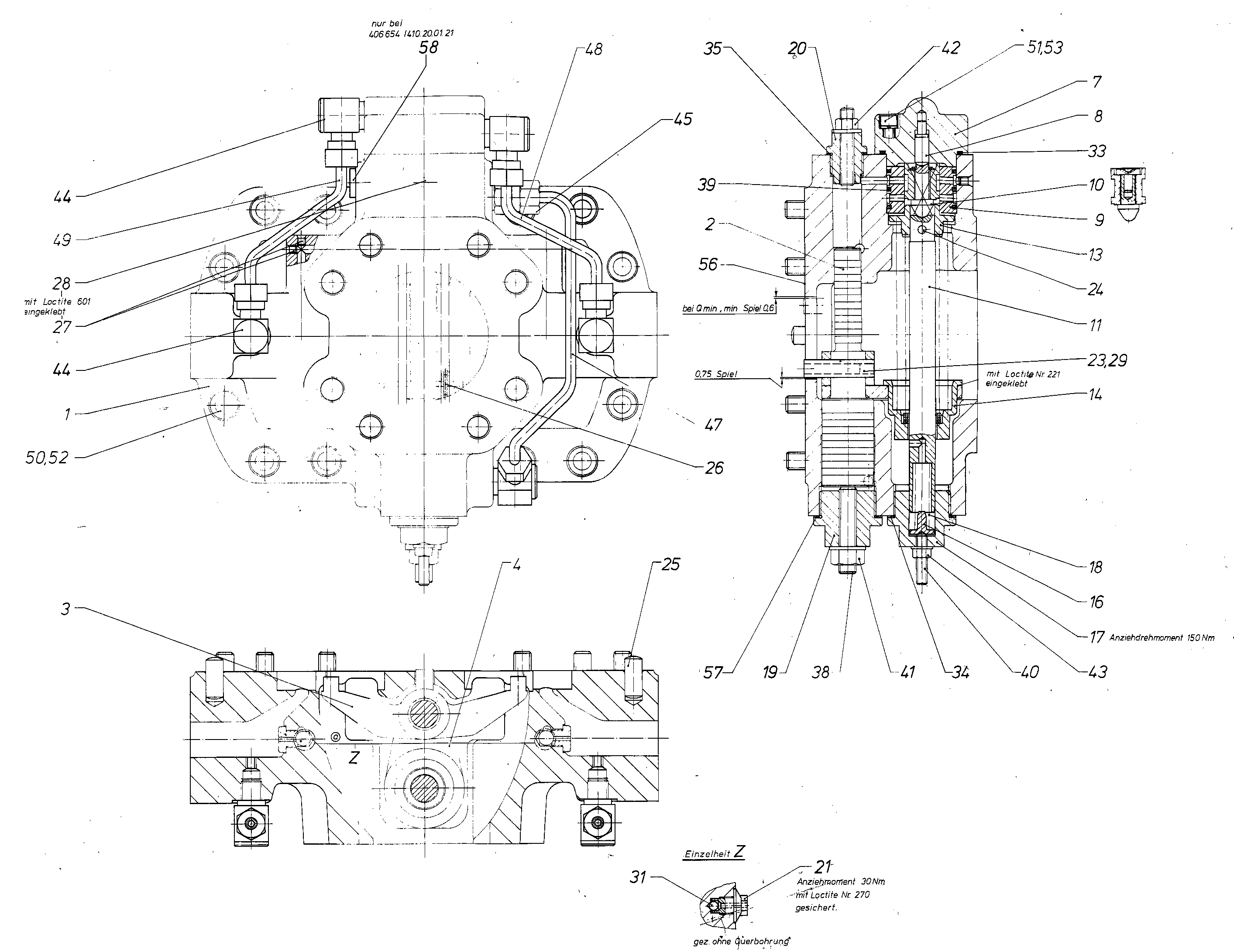

POWER REGULATORR909078501
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909400198 | CONTROL HOUSING | 1 | ||
| R909404349 | POSITIONING PISTON | 1 | ||
| R909071933 | SWIVEL FORK | 1 | ||
| R909071934 | CARRIER PLATE | 1 | ||
| R909401032 | CONTROL HEAD | 1 | ||
| R909071936 | REGULATOR PISTON | 1 | ||
| R909071937 | CONTROL BUSH | 1 | ||
| R909402190 | CONTROL PISTON | 1 | ||
| R909073509 | SPRING ROD | 1 | ||
| R909075705 | SPRING DISK | 1 | ||
| R909078065 | SPRING DISK | 1 | ||
| R909417606 | SPRING DISK | 1 | ||
| R909073507 | SCREW PLUG | 1 | ||
| R909073506 | COMPRESSION SPRING | 1 | ||
| R909404351 | SCREW PLUG | 1 | ||
| R909404352 | SCREW PLUG | 1 | ||
| R909074796 | SCREW | 2 | ||
| R909153567 | SLOTTED SPRING PIN | 1 | ||
| R909153623 | SLOTTED SPRING PIN | 1 | ||
| R909075984 | STRAIGHT PIN | 2 | ||
| R909151658 | HALF LENGTH TPR GRVD DOWEL PIN | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909085966 | SLOTTED SPRING PIN | 1 | ||
| R909083258 | BALL | 2 | ||
| R909086375 | O-RINGD | 1 | ||
| R909152741 | SEAL RINGD | 1 | ||
| R909083761 | O-RINGD | 1 | ||
| R909153010 | SETSCREW | 1 | ||
| R909156479 | R-RINGD | 3 | ||
| R909420990 | SETSCREW | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909404235 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909404244 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909404245 | HYDRAULIC LINE Assembly parts list →L | 1 | ||
| R909083060 | SOCKET HEAD CAP SCREW | 12 | ||
| R909083023 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083251 | SPRING LOCK WASHER | 12 | ||
| R909083249 | SPRING LOCK WASHER | 4 | ||
| R902011881 | SEALD | 1 | ||
| R909085684 | O-RINGD | 1 |
