Assembly

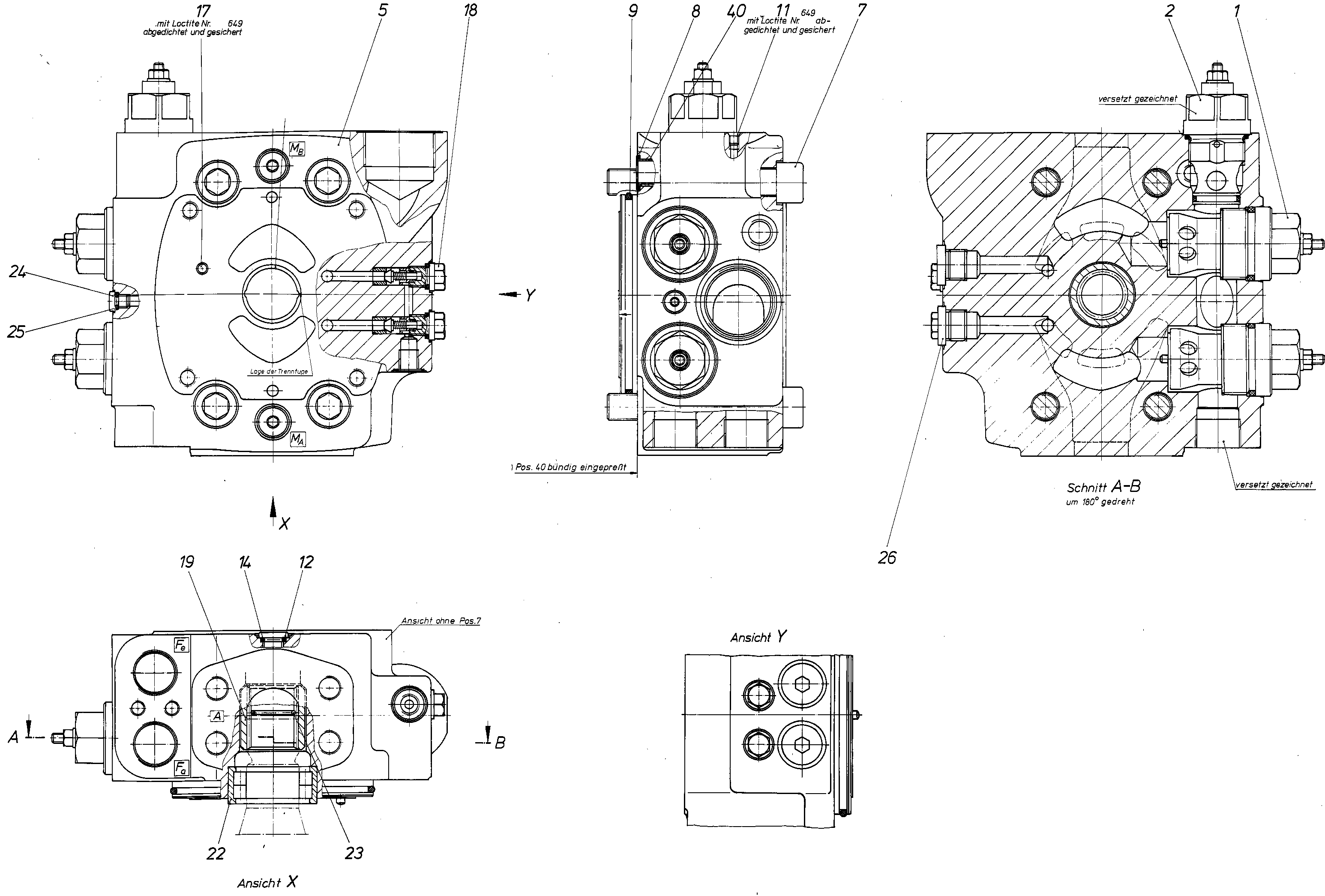

CONNECTION PLATER909079471
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909408590 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909427263 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909079477 | CONNECTION PLATE | 1 | ||
| R909083145 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157085 | QUAD RINGD | 2 | ||
| R909083828 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083219 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909078295 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909079500 | CHECK VALVE | 2 | ||
| R909445051 | COUPLING HUB | 1 | ||
| R909156113 | CYL. ROLLER BEARING | 1 | ||
| R909153971 | SNAP RING | 1 | ||
| R909087873 | SCREW PLUG | 1 | ||
| R909086380 | O-RINGD | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R909830411 | SLOTTED SPRING PIN | 1 |
