Assembly

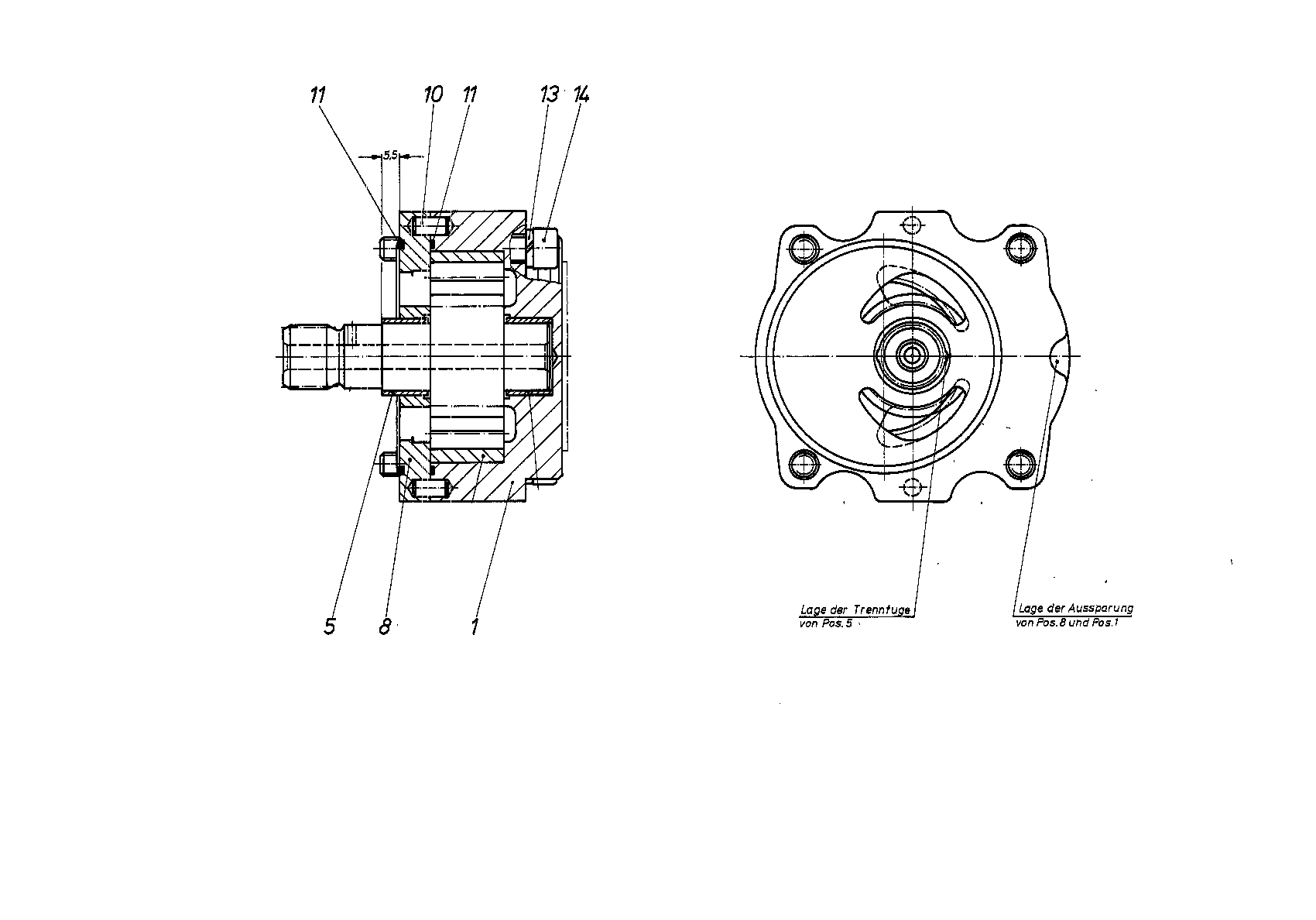

INTERNAL GEAR PUMPR909079484
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909403651 | PUMP COVER Assembly parts list →L | 1 | |
| 5 | R909069490 | BUSHING | 1 | |
| 8 | R909079492 | INTERMEDIATE PLATE | 1 | |
| 10 | R909084162 | STRAIGHT PIN | 2 | |
| 11 | R909083748 | O-RINGD | 2 | |
| 13 | R909083250 | SPRING LOCK WASHER | 4 | |
| 14 | R909083043 | SOCKET HEAD CAP SCREW | 4 |
