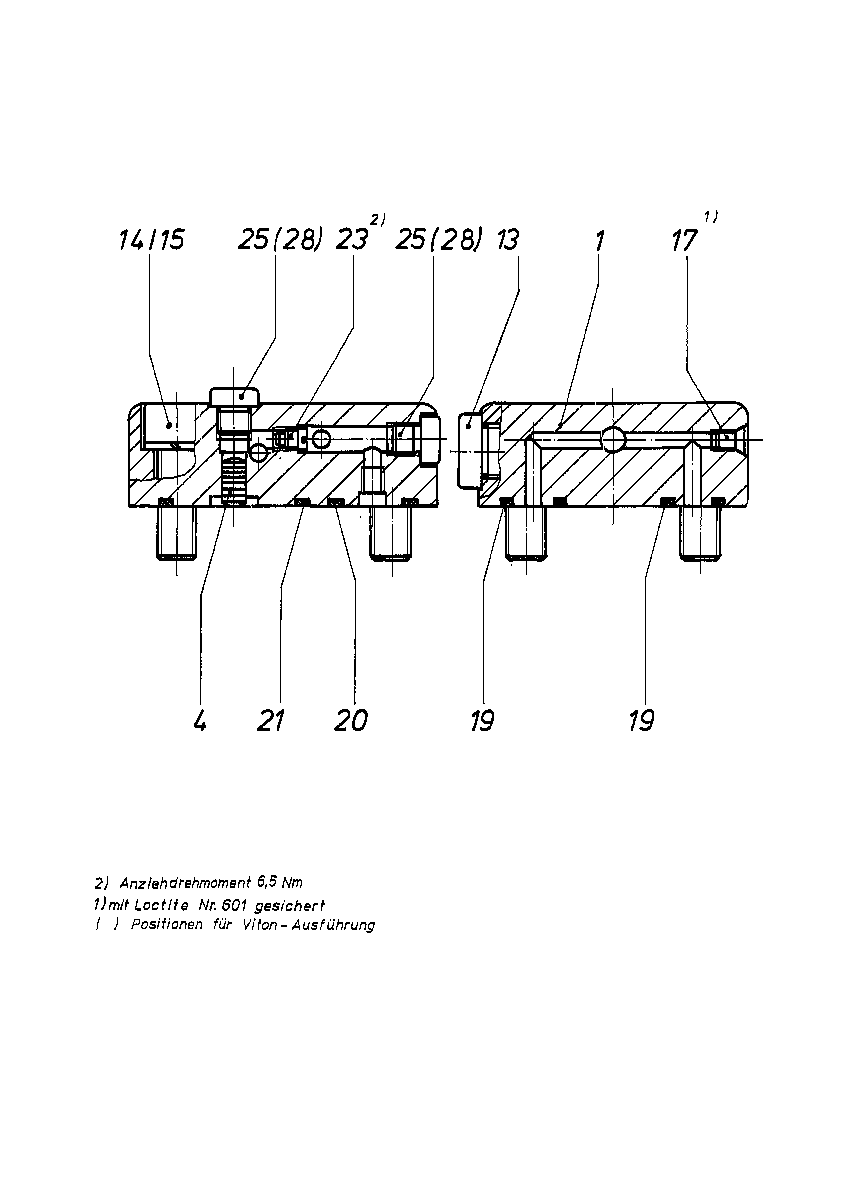

Assembly
COVERR909400285
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909079986 | COVER | 1 | ||
| R909073816 | PISTON | 1 | ||
| 13 | R909151979 | SCREW PLUGD | 1 | |
| 14 | R909083061 | SOCKET HEAD CAP SCREW | 4 | |
| 15 | R909083251 | SPRING LOCK WASHER | 4 | |
| 17 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909086729 | O-RINGD | 2 | ||
| R909083753 | O-RINGD | 1 | ||
| 21 | R909087513 | O-RINGD | 1 | |
| 23 | R909156492 | NOZZLE | 1 | |
| 25 | R909154024 | SCREW PLUGD | 2 |
