Assembly

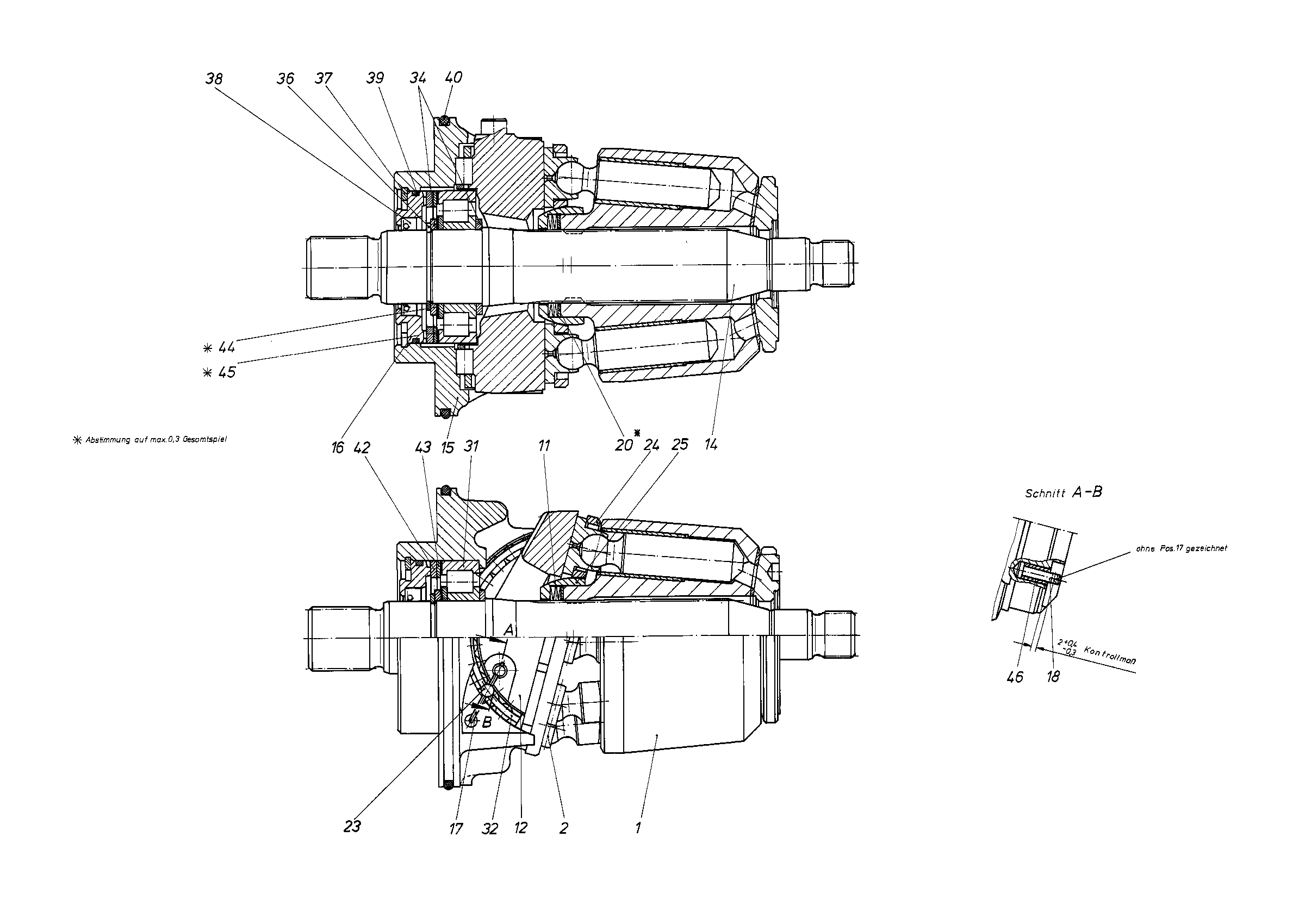

ROTARY GROUPR909400315
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909405625 | CYLINDER Assembly parts list →L | 1 | ||
| R909440190 | PISTON PAD | 9 | ||
| R909074126 | CUP-SPRING STACK | 1 | ||
| R909431357 | CRADLE | 1 | ||
| R909416999 | DRIVE SHAFT | 1 | ||
| R909080294 | BEARING FLANGE | 1 | ||
| R909069525 | LOCKING RINGD | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909078316 | SHIM RING | 1 | ||
| R909078317 | SHIM RING | 1 | ||
| R909411553 | SHIM RING | 1 | ||
| R909411554 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902205417 | RETAINING PLATE | 1 | ||
| R909426454 | RETAINING BALL | 1 | ||
| R909153801 | CYL. ROLLER BEARING | 1 | ||
| R909154734 | CAGE PAIR | 1 | ||
| R909153183 | SUPPORTING DISC | 2 | ||
| R909083360 | RETAINING RING | 1 | ||
| R909083412 | RETAINING RING | 1 | ||
| R909153179 | SHAFT SEALING RINGD | 1 | ||
| R909084462 | O-RINGD | 1 | ||
| — | O-RINGD | 1 | ||
| R909087188 | SUPPORTING DISCD | 1 | ||
| R909086815 | SHIM RING | 1 | ||
| R909086706 | SHIM RING | 1 | ||
| R909086707 | SHIM RING | 1 | ||
| R909153353 | SHIM RING | 1 | ||
| R909153354 | SHIM RING | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 |
