Assembly

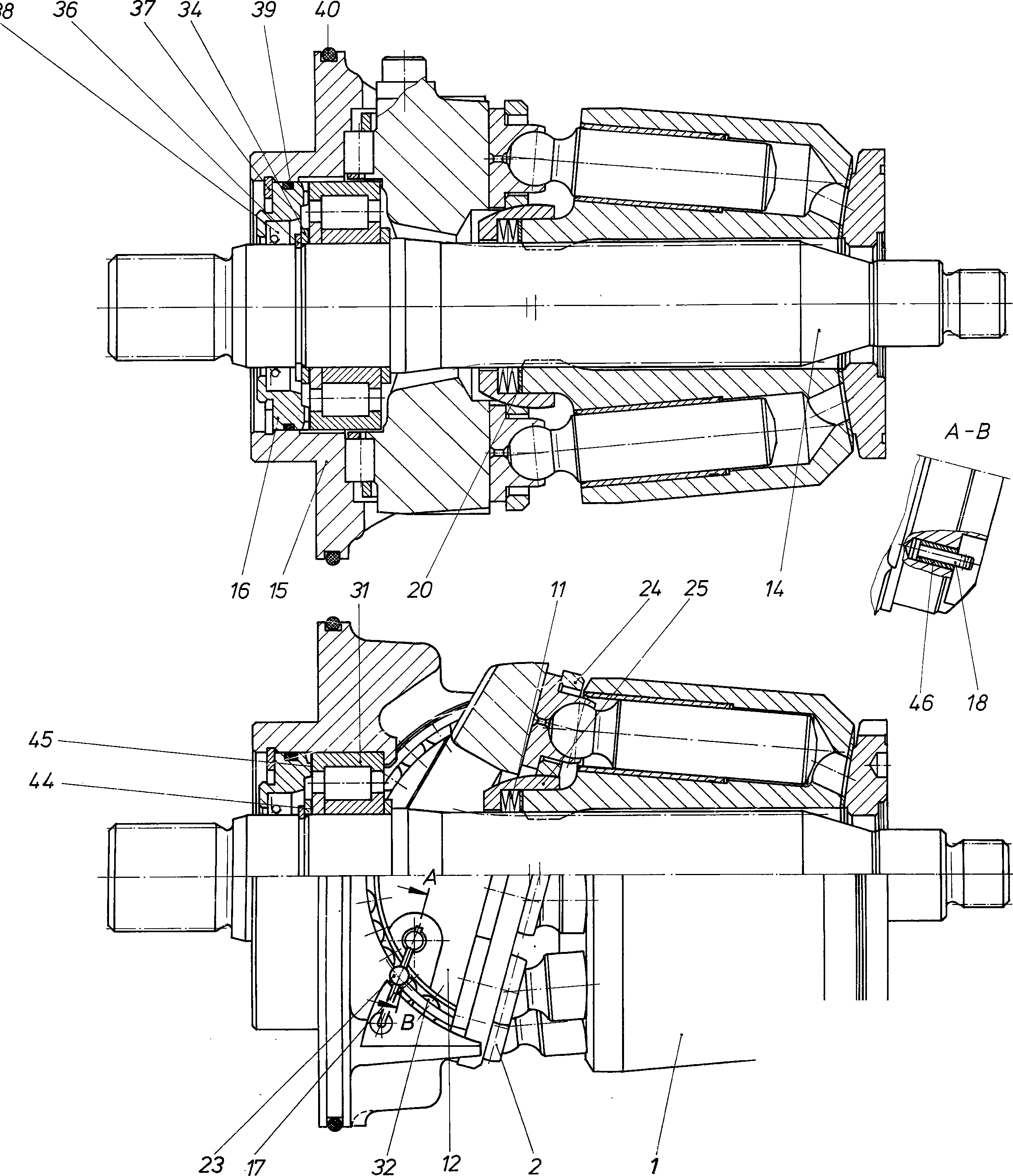

ROTARY GROUPR909400453
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909433368 | CYLINDER Assembly parts list →L | 1 | ||
| R909443559 | PISTON PAD | 9 | ||
| R909074127 | CUP-SPRING STACK | 1 | ||
| R909431358 | CRADLE | 1 | ||
| R909079270 | DRIVE SHAFT | 1 | ||
| R909080295 | BEARING FLANGE | 1 | ||
| R909069366 | LOCKING RINGD | 1 | ||
| R909076233 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909080152 | SHIM RING | 1 | ||
| R909080153 | SHIM RING | 1 | ||
| R909412704 | SHIM RING | 1 | ||
| R909412705 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902205486 | RETAINING PLATE | 1 | ||
| R909426458 | RETAINING BALL | 1 | ||
| R909153104 | CYL. ROLLER BEARING | 1 | ||
| R909154621 | CAGE PAIR | 1 | ||
| R909086229 | SUPPORTING DISC | 2 | ||
| R909083362 | RETAINING RING | 1 | ||
| R909083415 | RETAINING RING | 1 | ||
| R909830382 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909084461 | O-RINGD | 1 | ||
| R909083833 | O-RINGD | 1 | ||
| R909086230 | SHIM RING | 1 | ||
| R909086231 | SHIM RING | 1 | ||
| R909084586 | SHIM RING | 1 | ||
| R909084587 | SHIM RING | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 |
