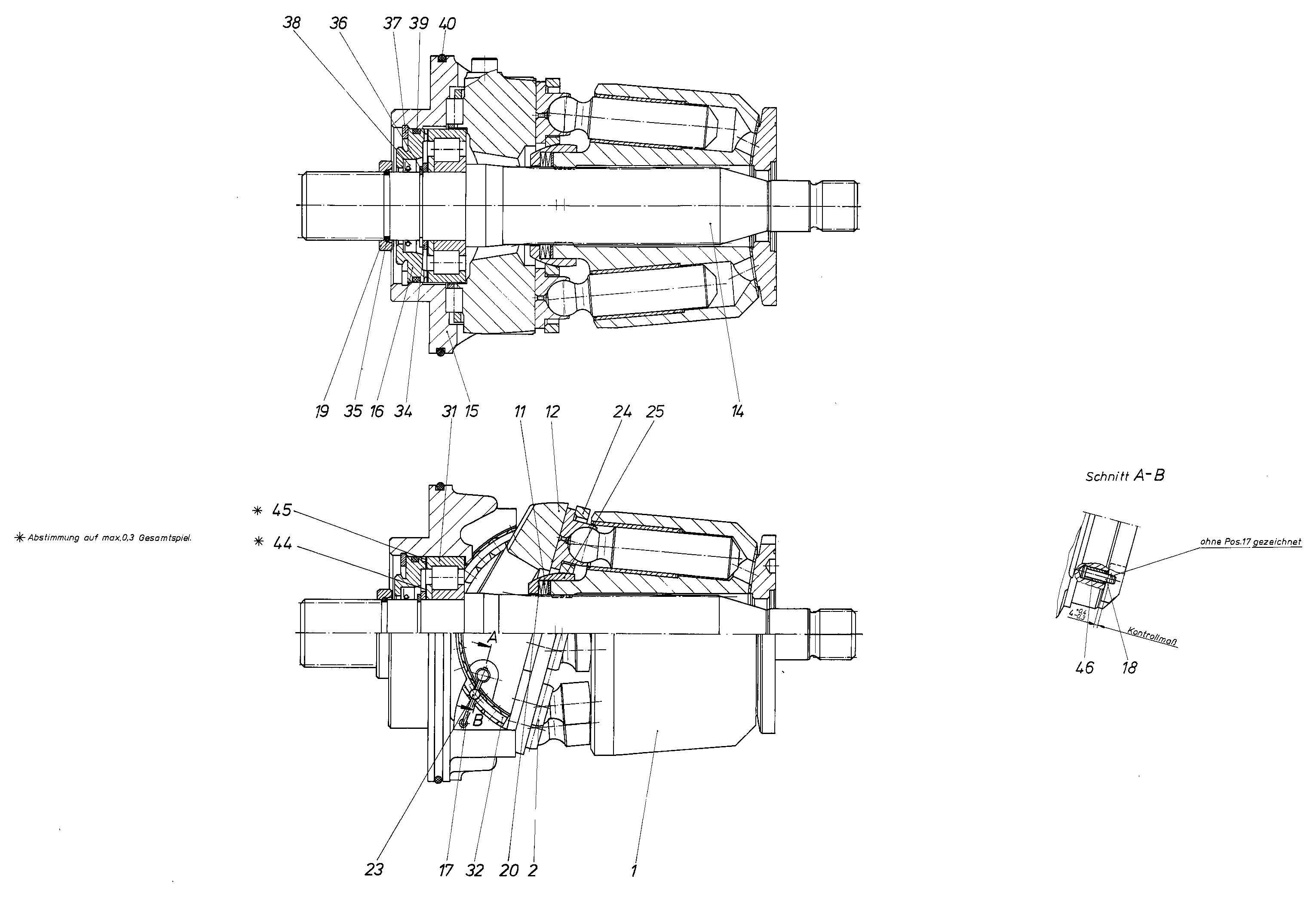

Assembly
ROTARY GROUPR909400454
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909405633 | CYLINDER Assembly parts list →L | 1 | ||
| R909078189 | PISTON PAD | 9 | ||
| R909074128 | CUP-SPRING STACK | 1 | ||
| R909431359 | CRADLE | 1 | ||
| R909079271 | DRIVE SHAFT | 1 | ||
| R909080296 | BEARING FLANGE | 1 | ||
| R909071336 | LOCKING RINGD | 1 | ||
| R909417959 | WIRE | 2 | ||
| R909076231 | PIVOT PIN | 2 | ||
| R909074142 | STOP RING | 1 | ||
| R909078319 | SHIM RING | 1 | ||
| R909412706 | SHIM RING | 1 | ||
| R909412707 | SHIM RING | 1 | ||
| R909413043 | SHIM RING | 1 | ||
| R909401842 | IDLE ROLLER | 2 | ||
| R902210083 | RETAINING PLATE | 1 | ||
| R909426460 | RETAINING BALL | 1 | ||
| R909153803 | CYL. ROLLER BEARING | 1 | ||
| R909830058 | CAGE PAIR | 1 | ||
| R909086229 | SUPPORTING DISC | 1 | ||
| R909153675 | SNAP RING | 1 | ||
| R909083362 | RETAINING RING | 1 | ||
| R909083416 | RETAINING RING | 1 | ||
| R909830382 | ROTARY SHAFT LIP SEALD | 1 | ||
| R909083822 | O-RINGD | 1 | ||
| R909086482 | O-RINGD | 1 | ||
| R909086230 | SHIM RING | 1 | ||
| R909086231 | SHIM RING | 1 | ||
| R909084588 | SHIM RING | 1 | ||
| R909084589 | SHIM RING | 1 | ||
| R909153928 | SLOTTED SPRING PIN | 2 |
