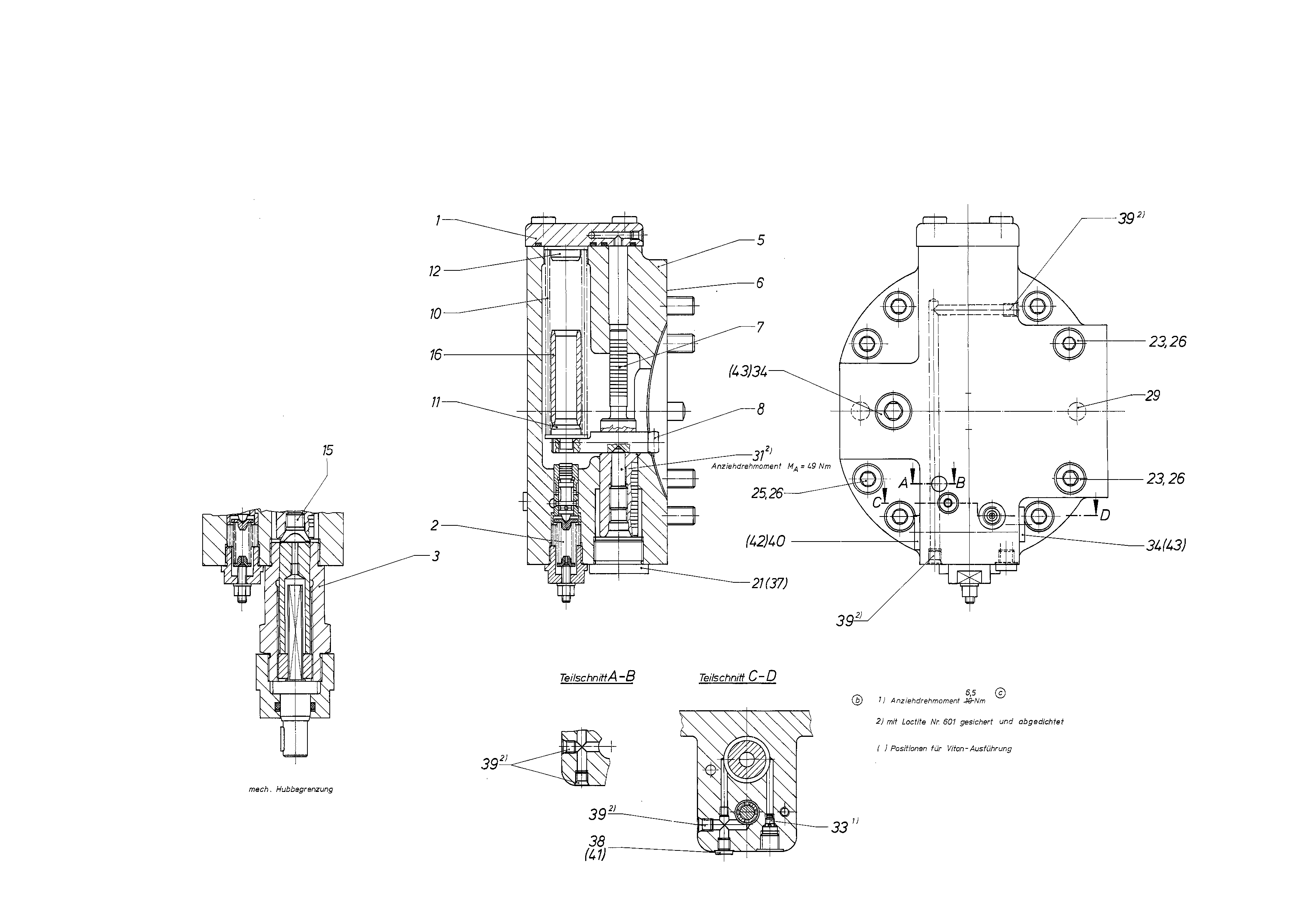

Assembly
CONTROLR909401325
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909401160 | COVER Assembly parts list →L | 1 | ||
| 2 | R909401339 | CONTROL PART Assembly parts list →L | 1 | |
| R909406271 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011878 | SEALD | 1 | ||
| R909409965 | POSITIONING PISTON | 1 | ||
| 8 | R909073897 | POSITIONING STUD | 1 | |
| 10 | R909073899 | COMPRESSION SPRING | 1 | |
| 11 | R909080342 | SPRING DISK | 1 | |
| 12 | R909073653 | SPRING DISK | 1 | |
| R909402331 | GUIDE SLEEVE | 1 | ||
| 21 | R909153861 | SCREW PLUGD | 1 | |
| 22 | R909153364 | SCREW PLUGD | 1 | |
| R909083105 | SOCKET HEAD CAP SCREW | 2 | ||
| 25 | R909083091 | SOCKET HEAD CAP SCREW | 6 | |
| R909083252 | SPRING LOCK WASHER | 8 | ||
| 29 | R913009666 | STRAIGHT PIN | 2 | |
| 31 | R909409591 | SETSCREW | 1 | |
| R909156493 | NOZZLE | 1 | ||
| 34 | R909153815 | SCREW PLUGD | 2 | |
| 38 | R909154024 | SCREW PLUGD | 1 | |
| 39 | R909831319 | DOUBLE BREAK-OFF PLUG | 3 | |
| 40 | R909153815 | SCREW PLUGD | 1 |
