Assembly

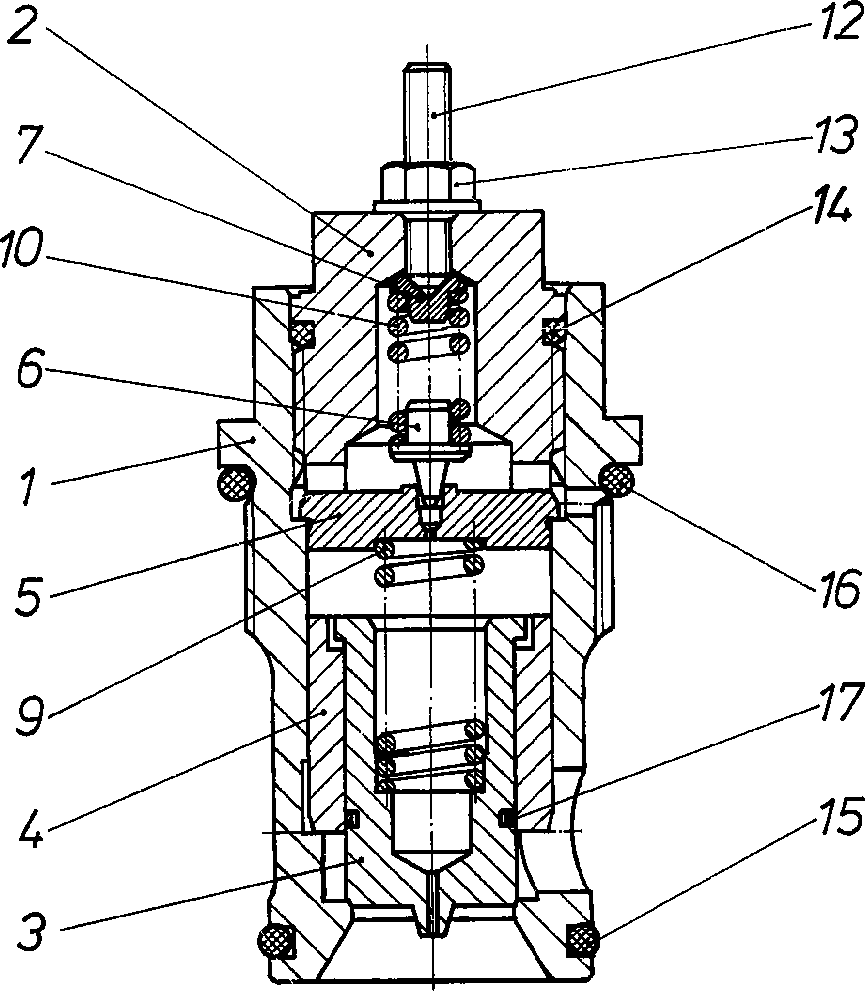

PRESSURE RELIEF VALVER909403905
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909403923 | VALVE BUSHING | 1 | ||
| R909403922 | SPRING SLEEV | 1 | ||
| R909445718 | PISTON | 1 | ||
| R909445719 | RING PISTON | 1 | ||
| R909426735 | VALVE PLATE | 1 | ||
| R909443630 | VALVE CONE | 1 | ||
| R909402842 | SPRING DISK | 1 | ||
| R909432977 | COMPRESSION SPRING | 1 | ||
| R909443624 | COMPRESSION SPRING | 1 | ||
| R909154140 | SETSCREW | 1 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909152146 | O-RINGD | 1 | ||
| R909084890 | O-RINGD | 1 | ||
| R909086336 | O-RINGD | 1 | ||
| R909831892 | STEEL SEALING RING | 1 |
