Assembly

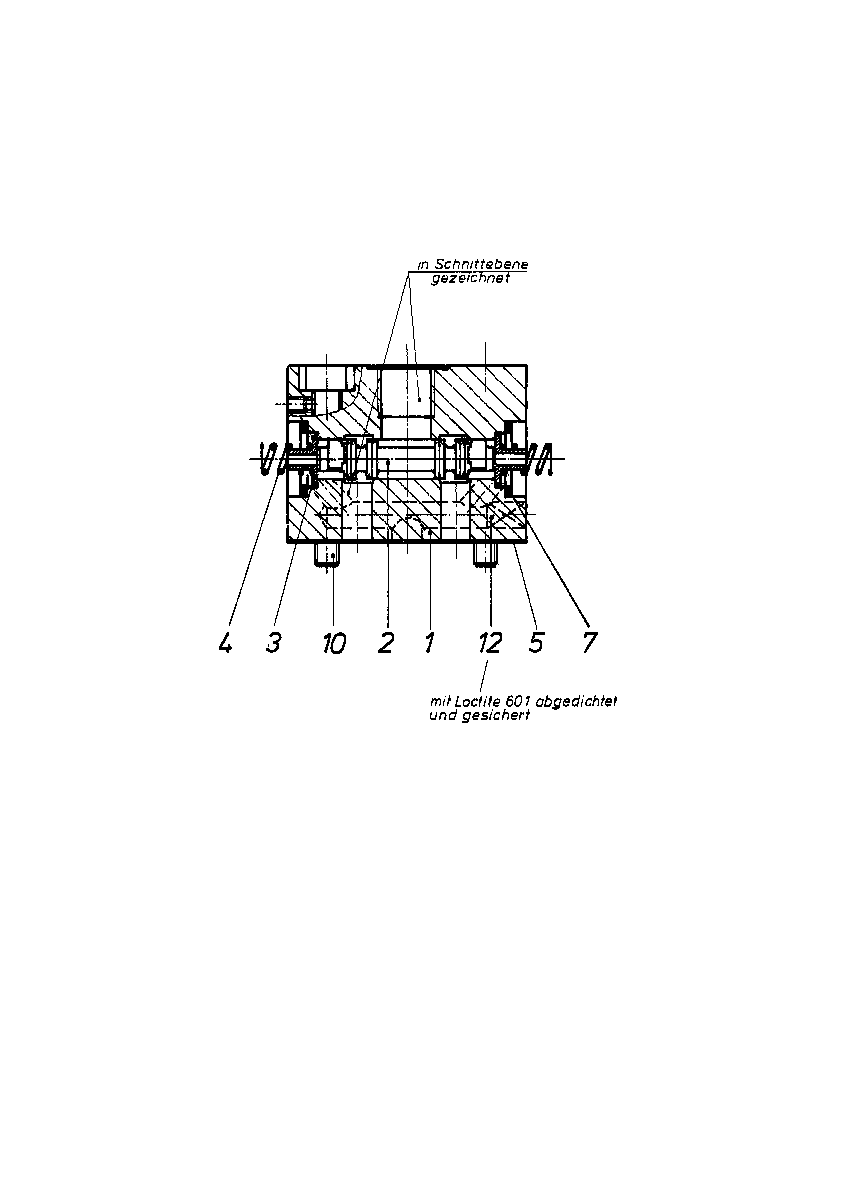

VALVE HOUSINGR909404609
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909651412 | VALVE HOUSING | 1 | |
| 2 | R909071345 | CONTROL PISTON | 1 | |
| 3 | R909069544 | SPRING DISK | 2 | |
| 4 | R909071362 | COMPRESSION SPRING | 2 | |
| 5 | R902603829 | SEALD | 1 | |
| 7 | R909083734 | O-RINGD | 2 | |
| 10 | R909083027 | SOCKET HEAD CAP SCREW | 4 | |
| 12 | R909419974 | DOUBLE BREAK-OFF PLUG | 2 |
