Assembly

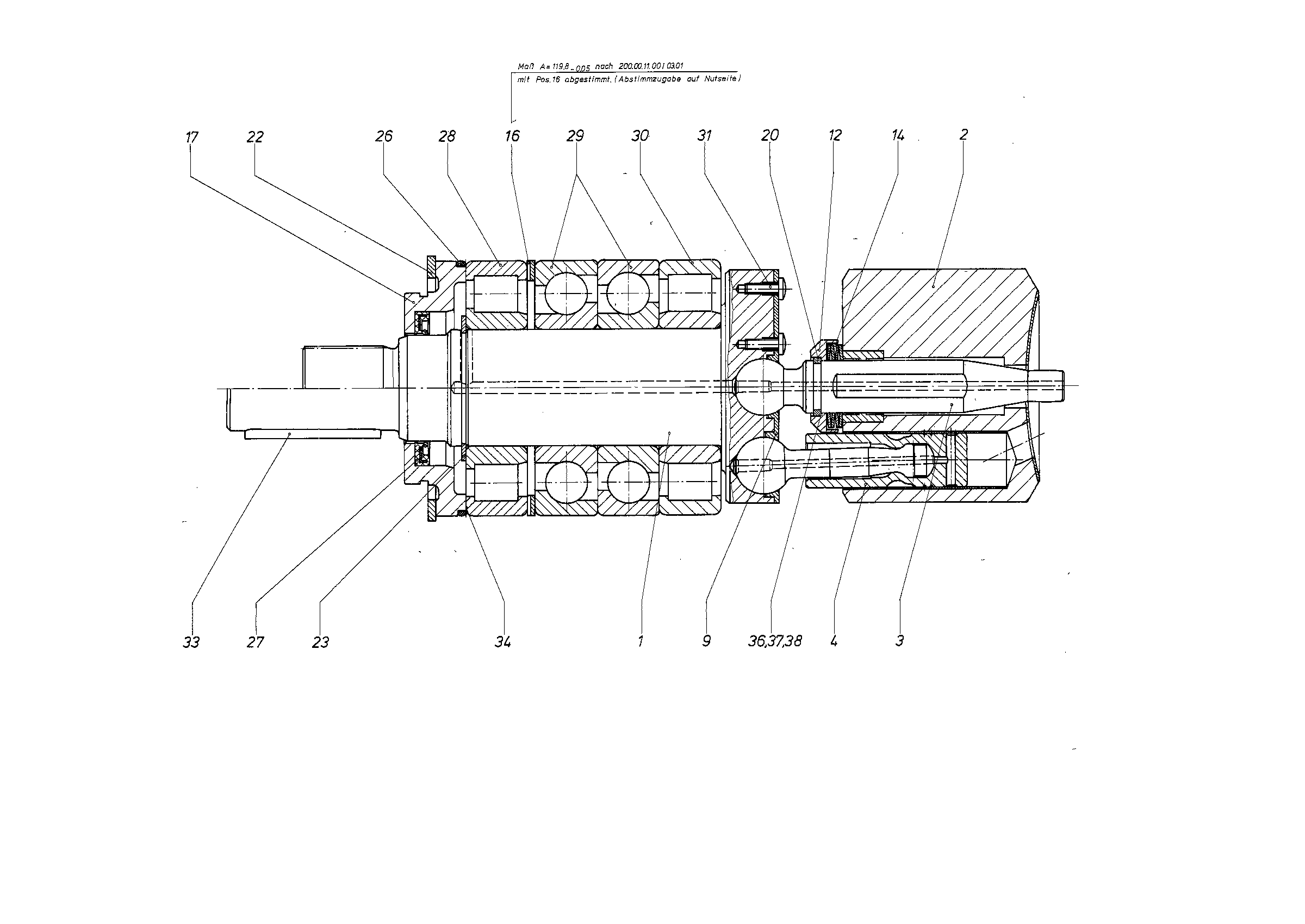

ROTARY GROUPR909405256
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909401461 | DRIVE SHAFT | 1 | ||
| 2 | R909404099 | CYLINDER | 1 | |
| 3 | R909062889 | CENTER PIN | 1 | |
| R909069099 | PISTON/PISTON ROD | 7 | ||
| R902072552 | RETAINING PLATE | 1 | ||
| 12 | R909062900 | SPRING DISK | 1 | |
| 14 | R909062898 | DISC SPRING | 4 | |
| R909402865 | SPACER RING | 1 | ||
| R909401244 | LOCKING RINGD | 1 | ||
| R909062899 | RING | 1 | ||
| R909083419 | RETAINING RING | 1 | ||
| R909083365 | RETAINING RING | 1 | ||
| R909086538 | O-RINGD | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R909087625 | CYL. ROLLER BEARING | 1 | ||
| R913032714 | ANG. CONTACT BALL BEARING | 2 | ||
| 30 | R909154385 | CYL. ROLLER BEARING | 1 | |
| 31 | R902602493 | PAN-HEAD SCREW | 14 | |
| R909083989 | PARALLEL KEY | 1 | ||
| R909084591 | SHIM RING | 3 | ||
| 36 | R909087160 | SHIM RING | 1 | |
| 37 | R909087380 | SHIM RING | 1 | |
| 38 | R909087161 | SHIM RING | 2 |
