Assembly

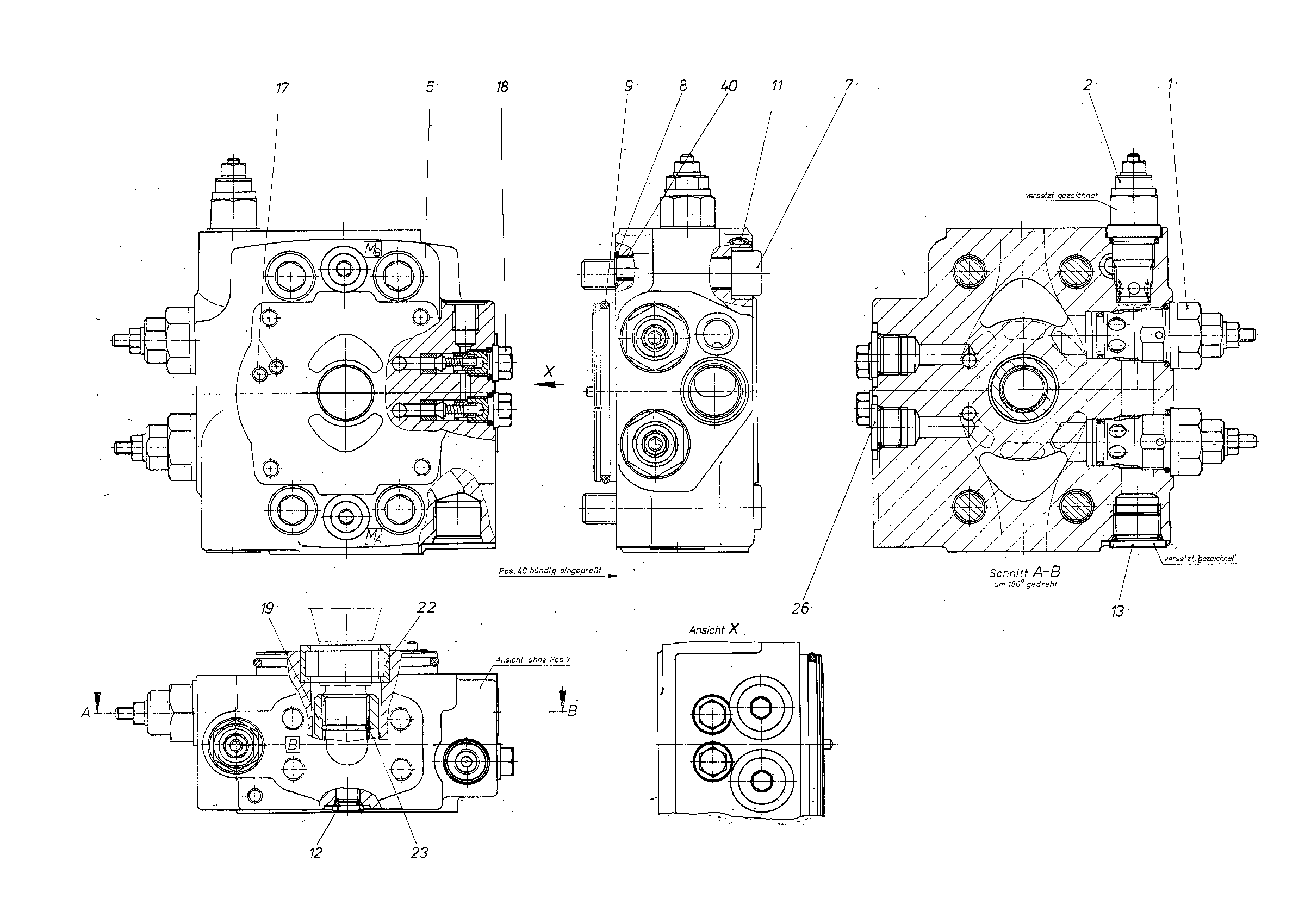

CONNECTION PLATER909405573
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909417693 | PRESSURE RELIEF VALVE Assembly parts list →L | 2 | ||
| R909423981 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909405567 | CONNECTION PLATE | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157083 | QUAD RINGD | 2 | ||
| R909083821 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909154478 | SCREW PLUGD | 2 | ||
| R909153339 | SCREW PLUGD | 1 | ||
| R909078295 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909079500 | CHECK VALVE | 2 | ||
| R909078306 | COUPLING HUB | 1 | ||
| R909153245 | CYL. ROLLER BEARING | 1 | ||
| R909152509 | SNAP RING | 1 | ||
| R909153338 | SCREW PLUGD | 2 | ||
| R909830409 | SLOTTED SPRING PIN | 1 |
