Assembly

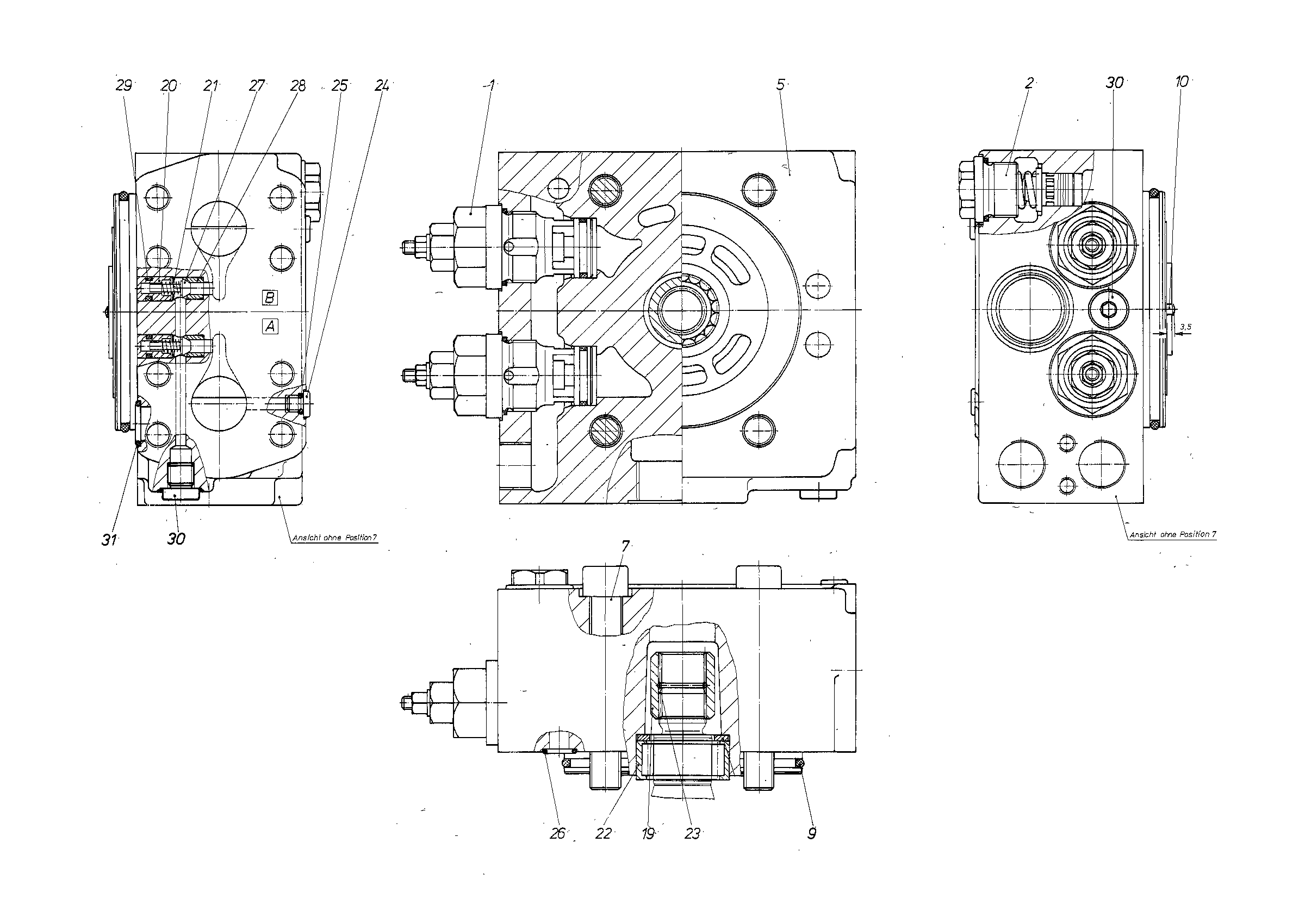

CONNECTION PLATER909408391
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902603814 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 2 | ||
| R909433403 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909439087 | CONNECTION PLATE | 1 | ||
| R909153797 | SOCKET HEAD CAP SCREW | 4 | ||
| R909085365 | O-RINGD | 1 | ||
| R909078306 | COUPLING HUB | 1 | ||
| R909411289 | SPRING SLEEV | 2 | ||
| R909002466 | COMPRESSION SPRING | 2 | ||
| R909156100 | CYL. ROLLER BEARING | 1 | ||
| R909152509 | SNAP RING | 1 | ||
| R909087873 | SCREW PLUG | 2 | ||
| R909086380 | O-RINGD | 2 | ||
| R902600645 | O-RINGD | 1 | ||
| R909154215 | VALVE CONE | 2 | ||
| R909085836 | VALVE SEAT | 2 | ||
| R909157512 | O-RINGD | 2 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909156360 | O-RING | 1 |
