Assembly

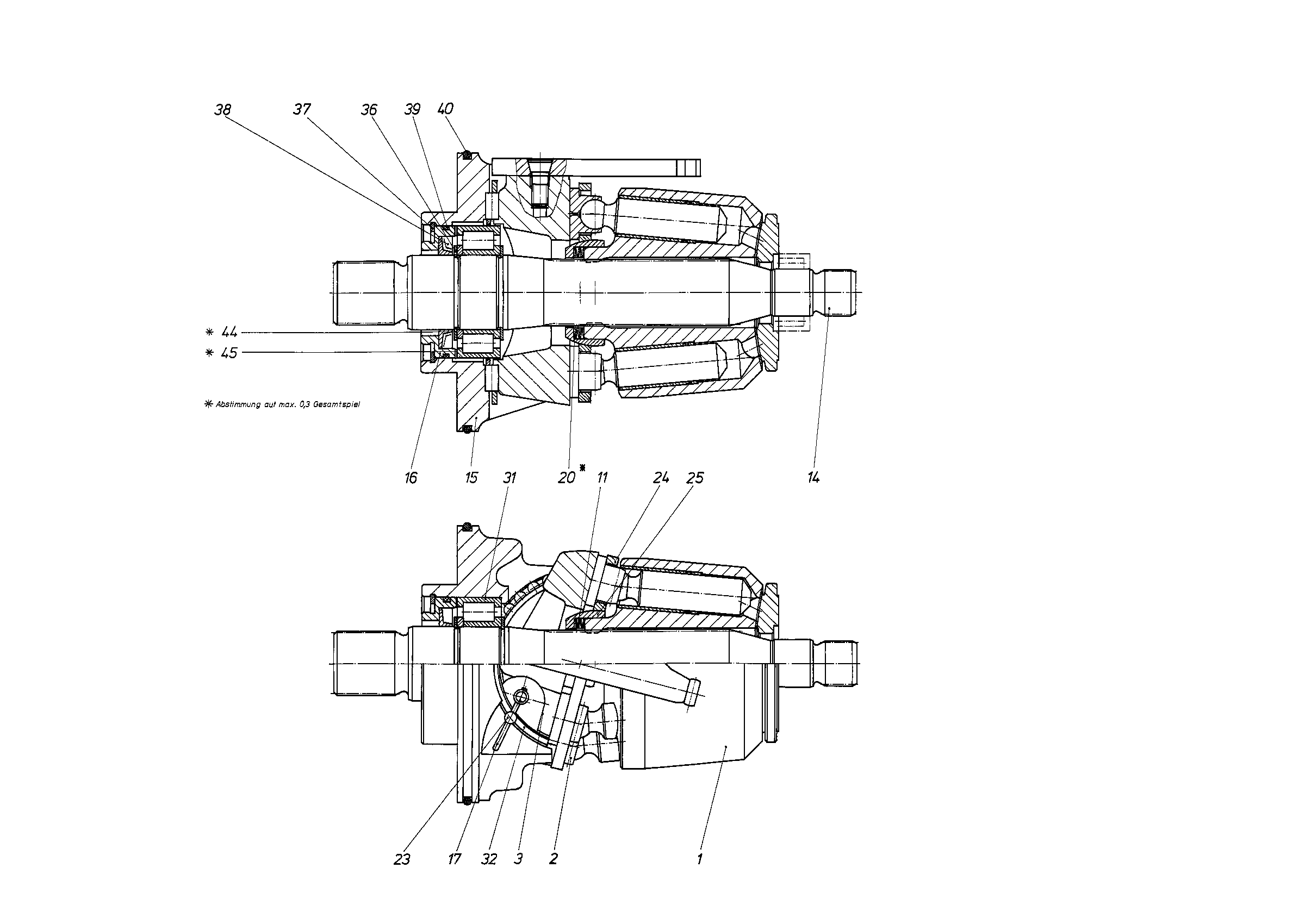

ROTARY GROUPR909408437
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909417869 | CYLINDER Assembly parts list →L | 1 | |
| R909410658 | PISTON PAD | 9 | ||
| 3 | R909408438 | CRADLE Assembly parts list →L | 1 | |
| 11 | R909074125 | CUP-SPRING STACK | 1 | |
| R909408440 | DRIVE SHAFT | 1 | ||
| R909080293 | BEARING FLANGE | 1 | ||
| 16 | R902108977 | LOCKING RINGD | 1 | |
| 17 | R909408786 | WIRE | 2 | |
| 20 | R909078313 | SHIM RING | 1 | |
| 20 | R909078314 | SHIM RING | 1 | |
| 20 | R909412495 | SHIM RING | 1 | |
| 20 | R909412496 | SHIM RING | 1 | |
| R909401842 | IDLE ROLLER | 2 | ||
| 24 | R902205484 | RETAINING PLATE | 1 | |
| 25 | R909426452 | RETAINING BALL | 1 | |
| 31 | R909153685 | CYL. ROLLER BEARING | 1 | |
| 32 | R909154681 | CAGE SEGMENT | 1 | |
| R909083360 | RETAINING RING | 2 | ||
| R909083408 | RETAINING RING | 1 | ||
| R909830380 | SHAFT SEALING RINGD | 1 | ||
| 39 | R909151810 | O-RINGD | 1 | |
| 40 | R909083830 | O-RINGD | 1 | |
| 44 | R909086706 | SHIM RING | 1 | |
| 44 | R909086707 | SHIM RING | 1 | |
| 45 | R909083427 | SHIM RING | 1 | |
| 45 | R909083428 | SHIM RING | 1 |
