Assembly

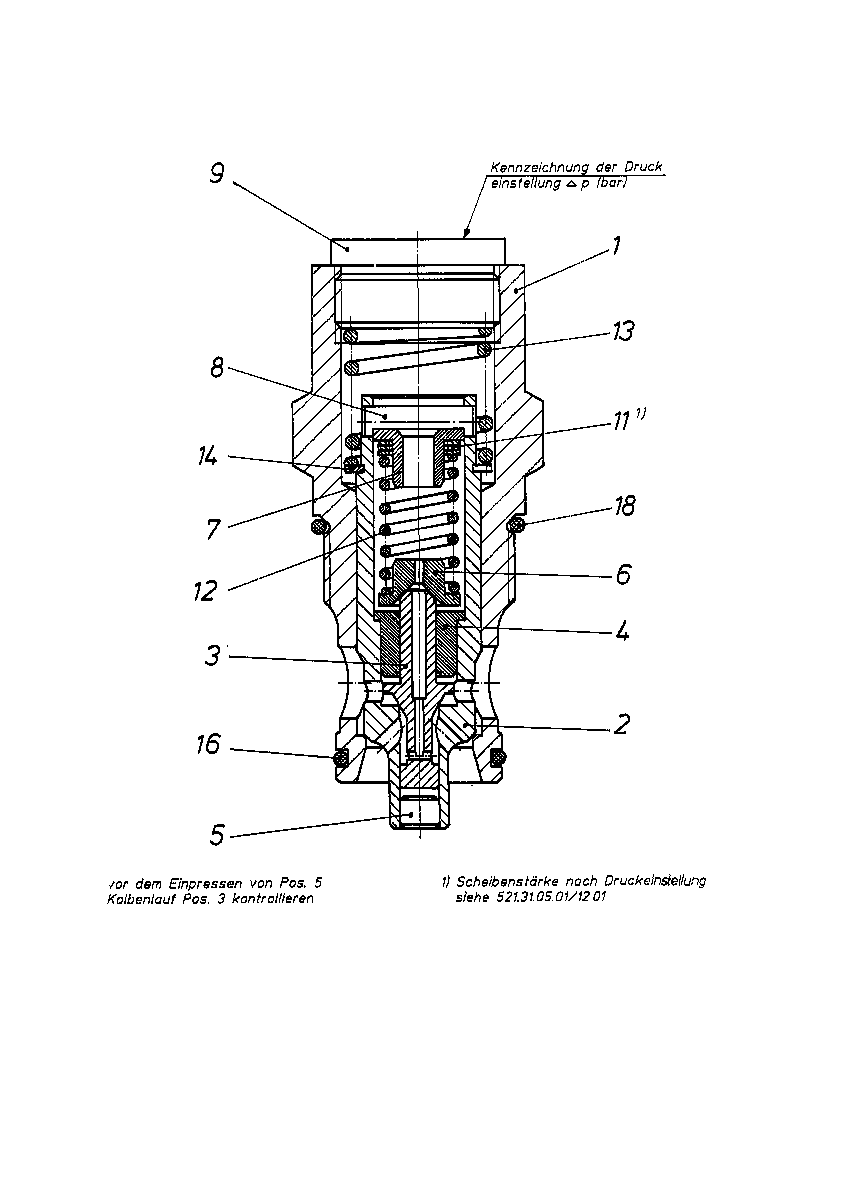

PRESSURE RELIEF VALVER909408831
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909408832 | VALVE BUSHING | 1 | |
| 2 | R909432455 | PISTON | 1 | |
| 3 | R909408834 | VALVE SPOOL | 1 | |
| 4 | R909411726 | GUIDE BUSHING | 1 | |
| R909002447 | PLUG | 1 | ||
| 6 | R909449466 | SPRING DISK | 1 | |
| 7 | R909408836 | SPRING DISK | 1 | |
| 8 | R909408837 | RETAINING PIN | 1 | |
| 9 | R909153862 | SCREW PLUGD | 1 | |
| 11 | R909153380 | SHIM RING | 3 | |
| 11 | R909154296 | SHIM RING | 1 | |
| 11 | R909154727 | SHIM RING | 1 | |
| 12 | R909408752 | COMPRESSION SPRING | 1 | |
| 13 | R909408753 | COMPRESSION SPRING | 1 | |
| 14 | R909830071 | V-RING | 1 | |
| R909084890 | O-RINGD | 1 | ||
| 18 | R909086336 | O-RINGD | 1 |
