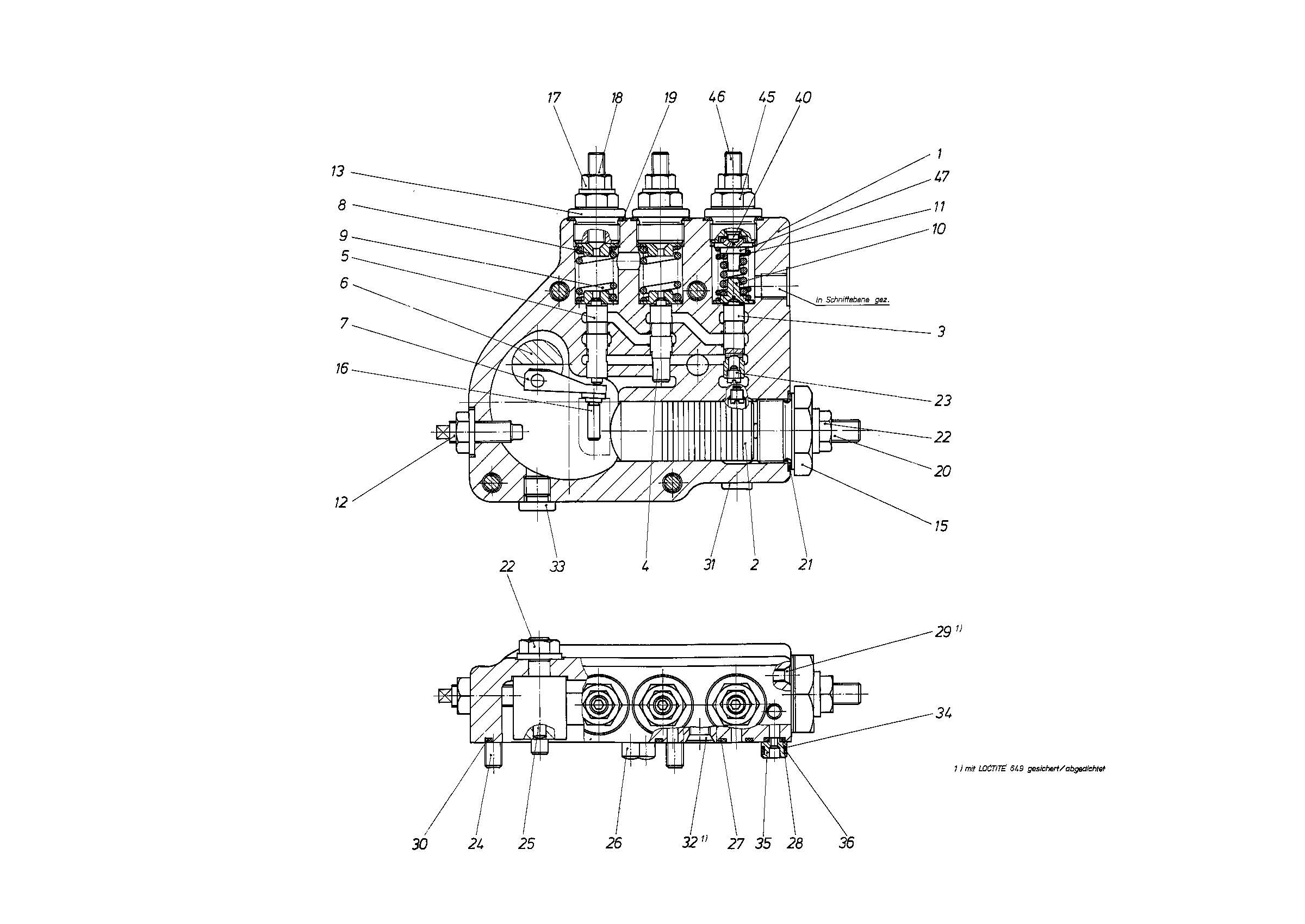

Assembly
REGULATORR909408969
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909435132 | CONTROL HOUSING | 1 | ||
| 2 | R909425015 | PISTON | 1 | |
| R909435245 | CONTROL PISTON | 1 | ||
| R909430275 | CONTROL PISTON | 1 | ||
| 5 | R909430276 | CONTROL PISTON | 1 | |
| R909408862 | ECCENTRIC | 1 | ||
| R909408866 | LEVER | 1 | ||
| 8 | R909408853 | SPRING DISK | 4 | |
| 9 | R909431610 | COMPRESSION SPRING | 2 | |
| 10 | R909439104 | SPRING BOLT | 1 | |
| 11 | R909439100 | COMPRESSION SPRING | 1 | |
| R909410086 | SETSCREW | 1 | ||
| R909408860 | SCREW PLUG | 2 | ||
| 15 | R909408861 | SCREW PLUG | 1 | |
| 16 | R909408859 | PISTON PAD | 1 | |
| R909152707 | SEALING NUTD | 3 | ||
| 18 | R909153555 | SETSCREW | 2 | |
| R909152734 | SEAL RINGD | 3 | ||
| 20 | R909086752 | SETSCREW | 1 | |
| 21 | R909152739 | SEAL RINGD | 1 | |
| R909152426 | SEALING NUTD | 3 | ||
| 23 | R909156492 | NOZZLE | 2 | |
| R909083042 | SOCKET HEAD CAP SCREW | 4 | ||
| R909156247 | STRAIGHT PIN | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| 27 | R909083749 | O-RINGD | 2 | |
| 28 | R909157512 | O-RINGD | 1 | |
| 29 | R909831318 | DOUBLE BREAK-OFF PLUG | 2 | |
| R909085360 | O-RINGD | 1 | ||
| 31 | R909153364 | SCREW PLUGD | 1 | |
| 32 | R909831320 | DOUBLE BREAK-OFF PLUG | 2 | |
| 33 | R909153815 | SCREW PLUGD | 1 | |
| R909087062 | BACKUP RINGD | 1 | ||
| 35 | R909435015 | SEAL BUSHING | 1 | |
| R909085709 | O-RINGD | 1 | ||
| 40 | R909439099 | COMPRESSION SPRING | 1 | |
| 45 | R909435133 | SCREW PLUG | 1 | |
| R909435138 | SETSCREW | 1 | ||
| R909439103 | SPRING BOLT | 1 |
