Assembly

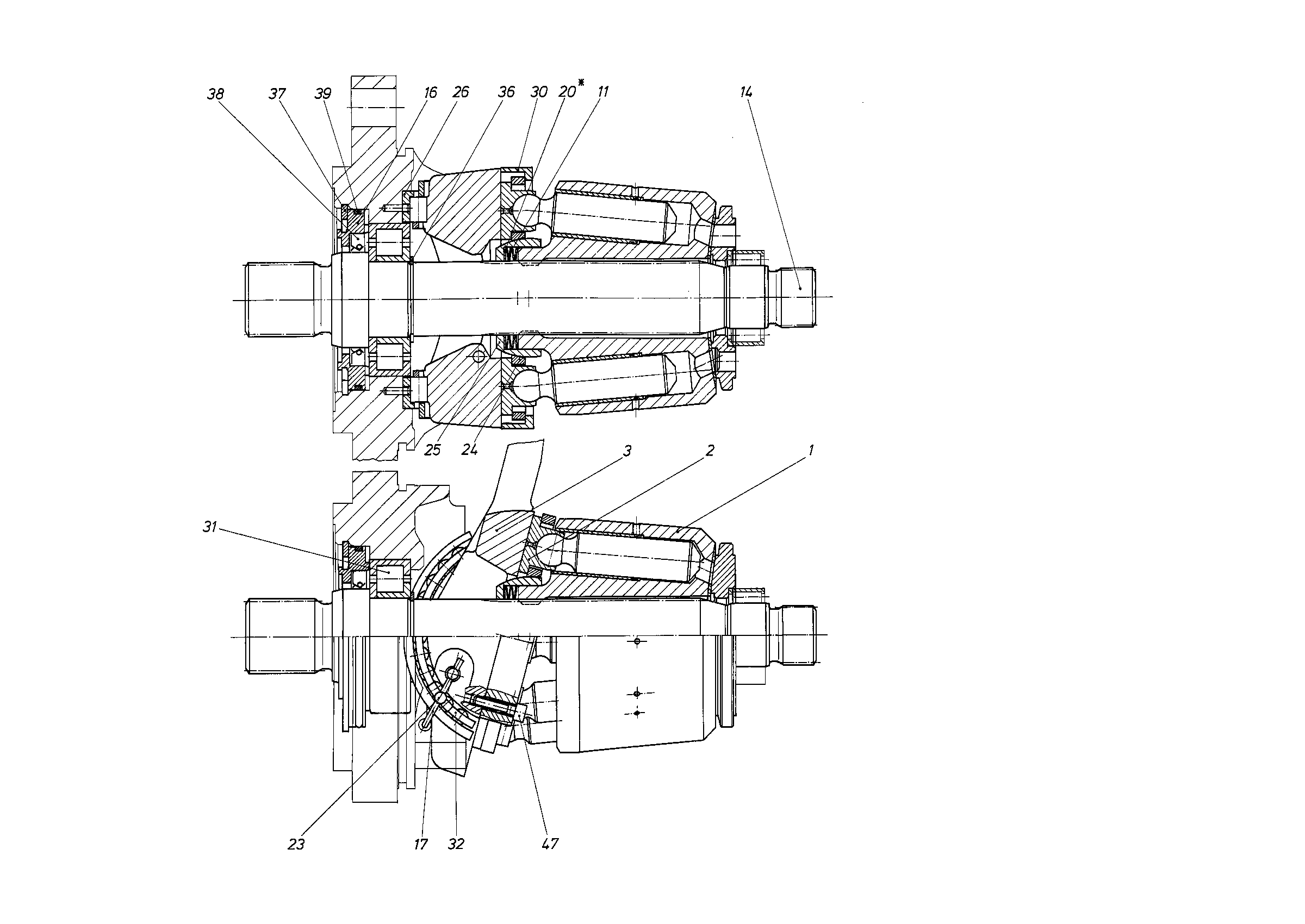

ROTARY GROUPR909410130
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909440264 | CYLINDER Assembly parts list →L | 1 | |
| R909440190 | PISTON PAD | 9 | ||
| R909433323 | CRADLE | 1 | ||
| 11 | R909074126 | CUP-SPRING STACK | 1 | |
| 14 | R909408798 | DRIVE SHAFT | 1 | |
| 16 | R909443771 | LOCKING RINGD | 1 | |
| 17 | R909076233 | WIRE | 2 | |
| 20 | R909078316 | SHIM RING | 1 | |
| 20 | R909078317 | SHIM RING | 1 | |
| 20 | R909411553 | SHIM RING | 1 | |
| 20 | R909411554 | SHIM RING | 1 | |
| R909401842 | IDLE ROLLER | 2 | ||
| 24 | R902205417 | RETAINING PLATE | 1 | |
| 25 | R909426454 | RETAINING BALL | 1 | |
| 26 | R909408794 | BEARING SHELL PAIR | 1 | |
| 30 | R909432414 | RETAINING SEGMENT | 2 | |
| 31 | R909153801 | CYL. ROLLER BEARING | 1 | |
| 32 | R909154734 | CAGE PAIR | 1 | |
| 36 | R909083360 | RETAINING RING | 1 | |
| R909086328 | RETAINING RING | 1 | ||
| R909830384 | SHAFT SEALING RINGD | 1 | ||
| R909083790 | O-RINGD | 1 | ||
| R909831328 | SOCKET HEAD CAP SCREW | 4 |
