Assembly

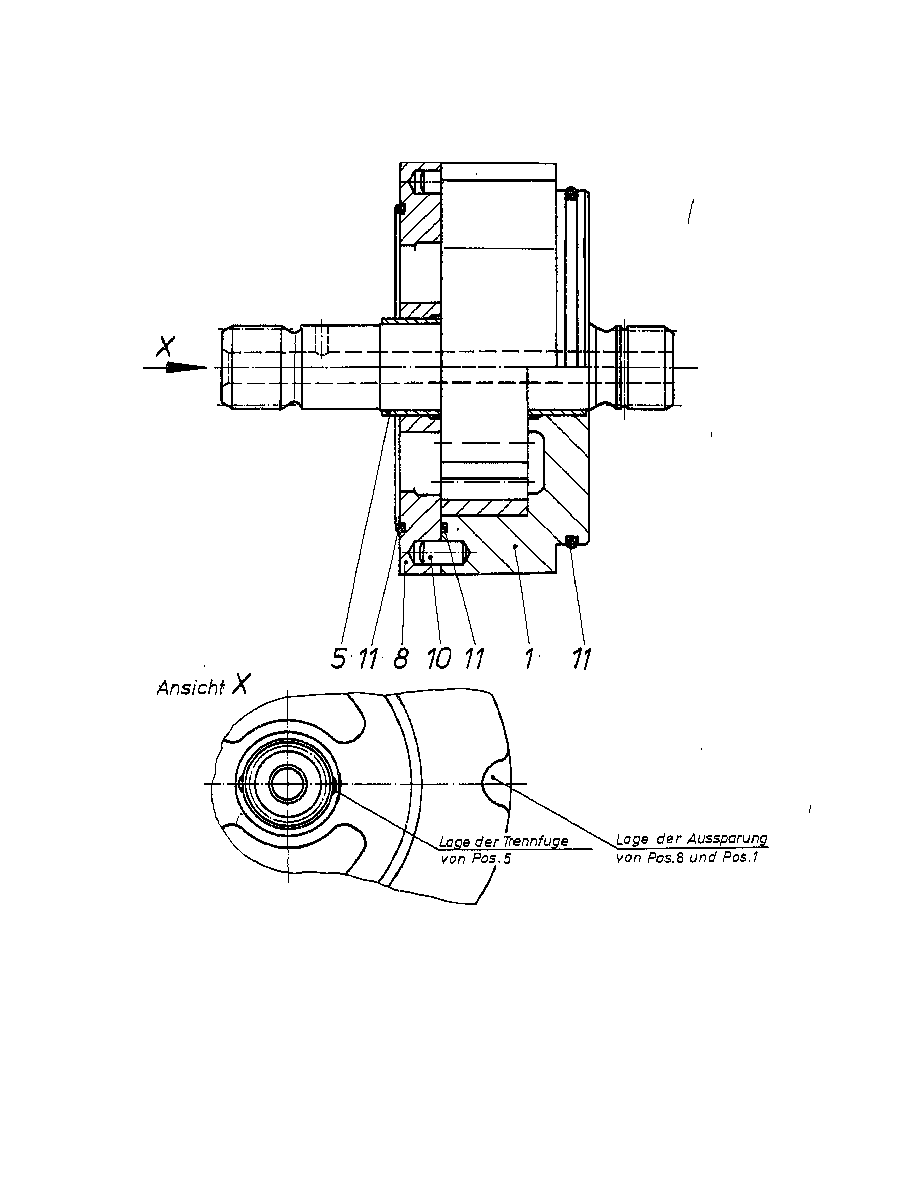

INTERNAL GEAR PUMPR909410167
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410165 | PUMP COVER Assembly parts list →L | 1 | ||
| 5 | R909079478 | BUSHING | 1 | |
| 8 | R909079494 | INTERMEDIATE PLATE | 1 | |
| 10 | R909084162 | STRAIGHT PIN | 2 | |
| 11 | R909086823 | O-RINGD | 3 |
Assembly
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410165 | PUMP COVER Assembly parts list →L | 1 | ||
| 5 | R909079478 | BUSHING | 1 | |
| 8 | R909079494 | INTERMEDIATE PLATE | 1 | |
| 10 | R909084162 | STRAIGHT PIN | 2 | |
| 11 | R909086823 | O-RINGD | 3 |
