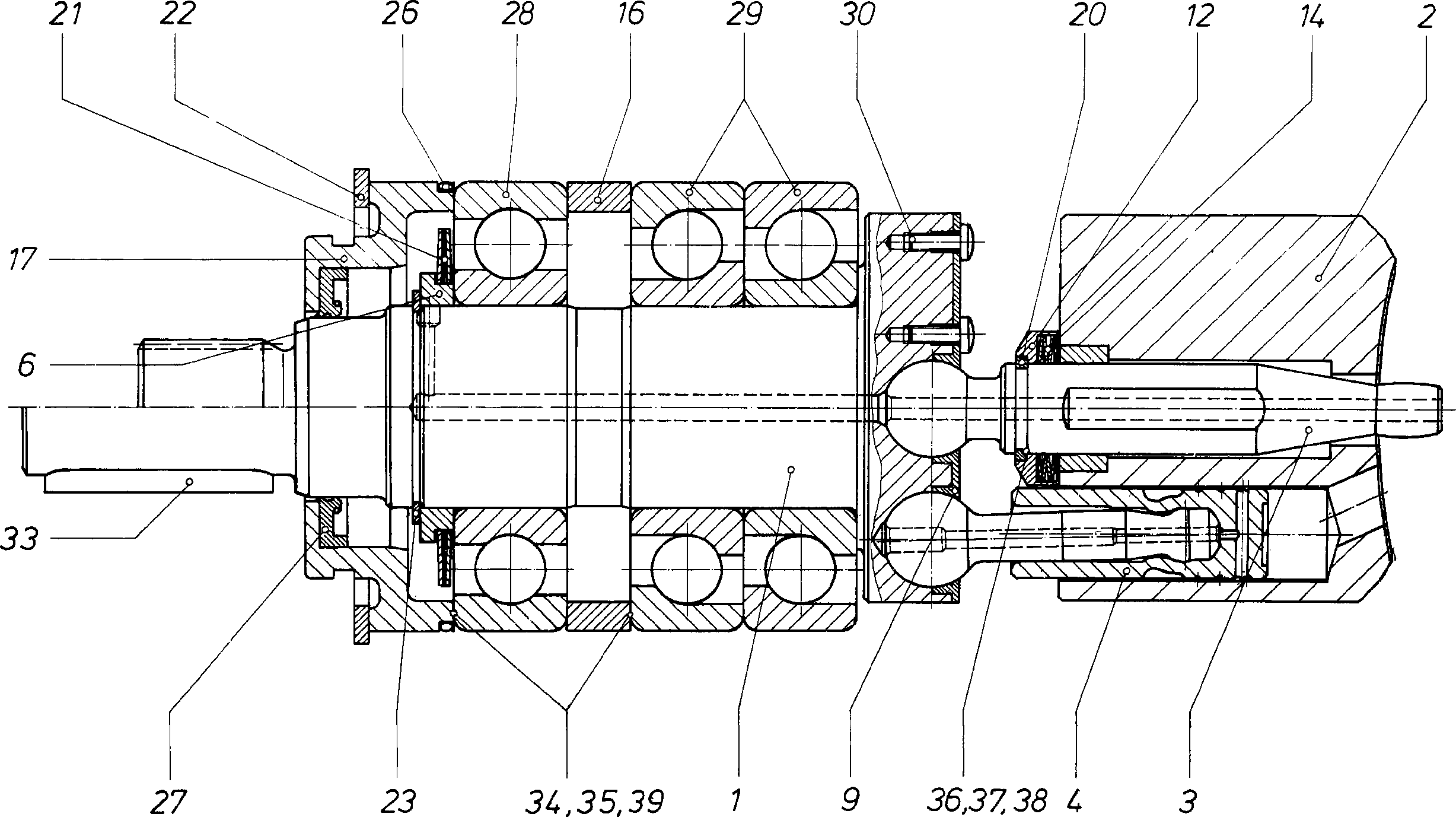

Assembly
ROTARY GROUPR909410355
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909072850 | DRIVE SHAFT | 1 | ||
| R909404100 | CYLINDER | 1 | ||
| R909060118 | CENTER PIN | 1 | ||
| R909069120 | PISTON/PISTON ROD | 7 | ||
| R909449381 | SPRING DISK | 1 | ||
| R902024999 | RETAINING PLATE | 1 | ||
| R909060393 | SPRING DISK | 1 | ||
| R909060355 | DISC SPRING | 4 | ||
| R909406412 | SPACER RING | 1 | ||
| R909067718 | LOCKING RINGD | 1 | ||
| R909001040 | RING | 1 | ||
| R909006731 | SPECIAL DISK SPRING | 2 | ||
| R909083419 | RETAINING RING | 1 | ||
| R909083365 | RETAINING RING | 1 | ||
| R909086538 | O-RINGD | 1 | ||
| R909830386 | SHAFT SEALING RINGD | 1 | ||
| R913023200 | DEEP-GROOVE BALL BEARING | 1 | ||
| R913032714 | ANG. CONTACT BALL BEARING | 2 | ||
| R902602493 | PAN-HEAD SCREW | 14 | ||
| R909084591 | SHIM RING | 2 | ||
| R909084594 | SHIM RING | 1 | ||
| R909087160 | SHIM RING | 1 | ||
| R909087380 | SHIM RING | 1 | ||
| R909087161 | SHIM RING | 2 | ||
| R909085948 | SHIM RING | 1 |
