Assembly

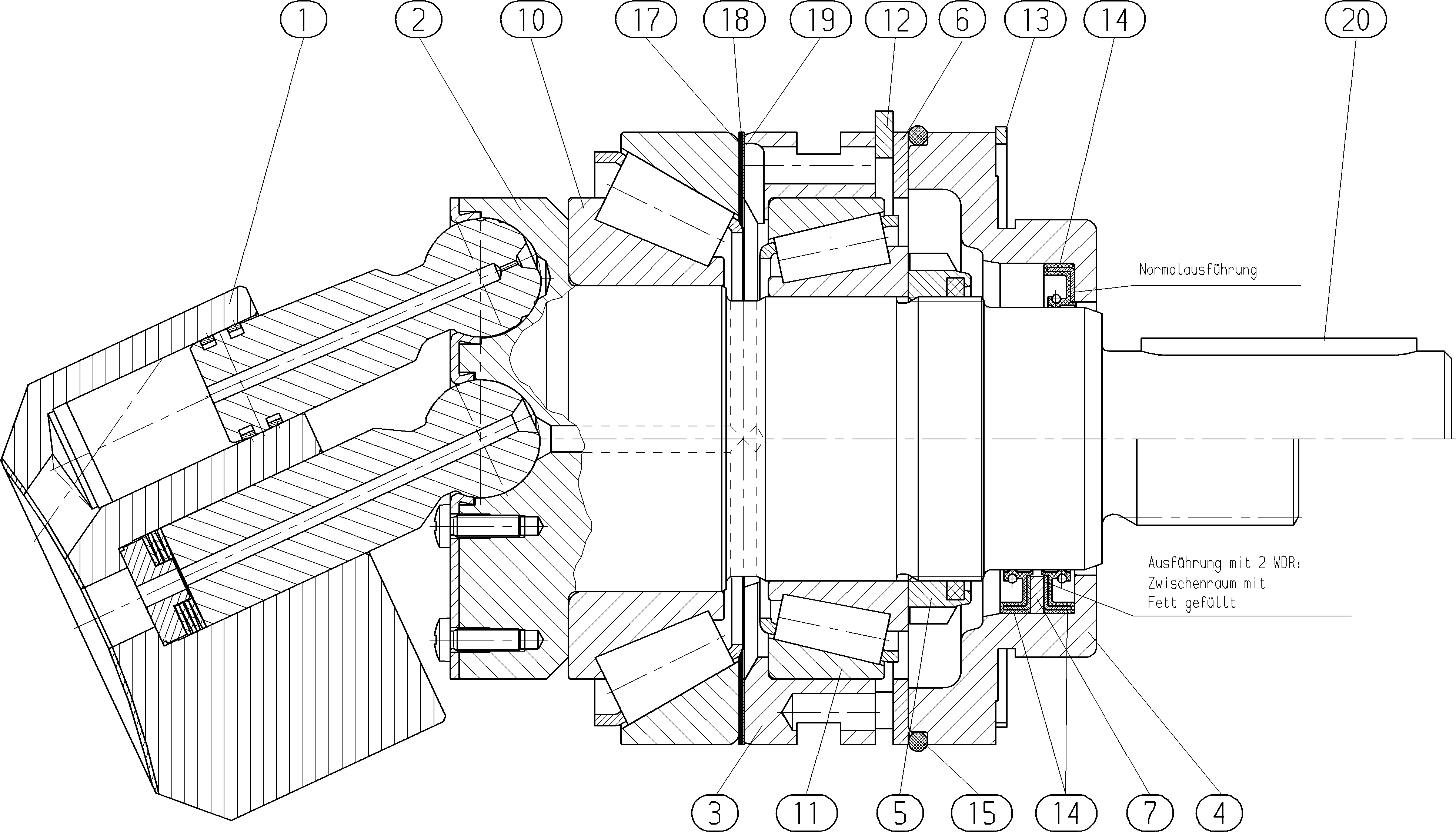

ROTARY GROUPR909410499
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909410390 | ROTARY GROUP Assembly parts list →L | 1 | ||
| R909425713 | DRIVE SHAFT | 1 | ||
| R909410429 | BEARING RING | 1 | ||
| R909410498 | LOCKING RINGD | 1 | ||
| R913037933 | SLOTTED ROUND NUT | 1 | ||
| R909156292 | SUPPORTING DISC | 1 | ||
| R909154344 | TAPERED-ROLLER BEARING | 1 | ||
| R909152775 | TAPERED-ROLLER BEARING | 1 | ||
| R909083421 | RETAINING RING | 1 | ||
| R909154380 | SNAP RING | 1 | ||
| R909830388 | SHAFT SEALING RINGD | 1 | ||
| R909085366 | O-RINGD | 1 | ||
| R909154260 | SHIM RING | 2 | ||
| R909087601 | SHIM RING | 1 | ||
| R909154259 | SHIM RING | 1 | ||
| R909083994 | PARALLEL KEY | 1 |
