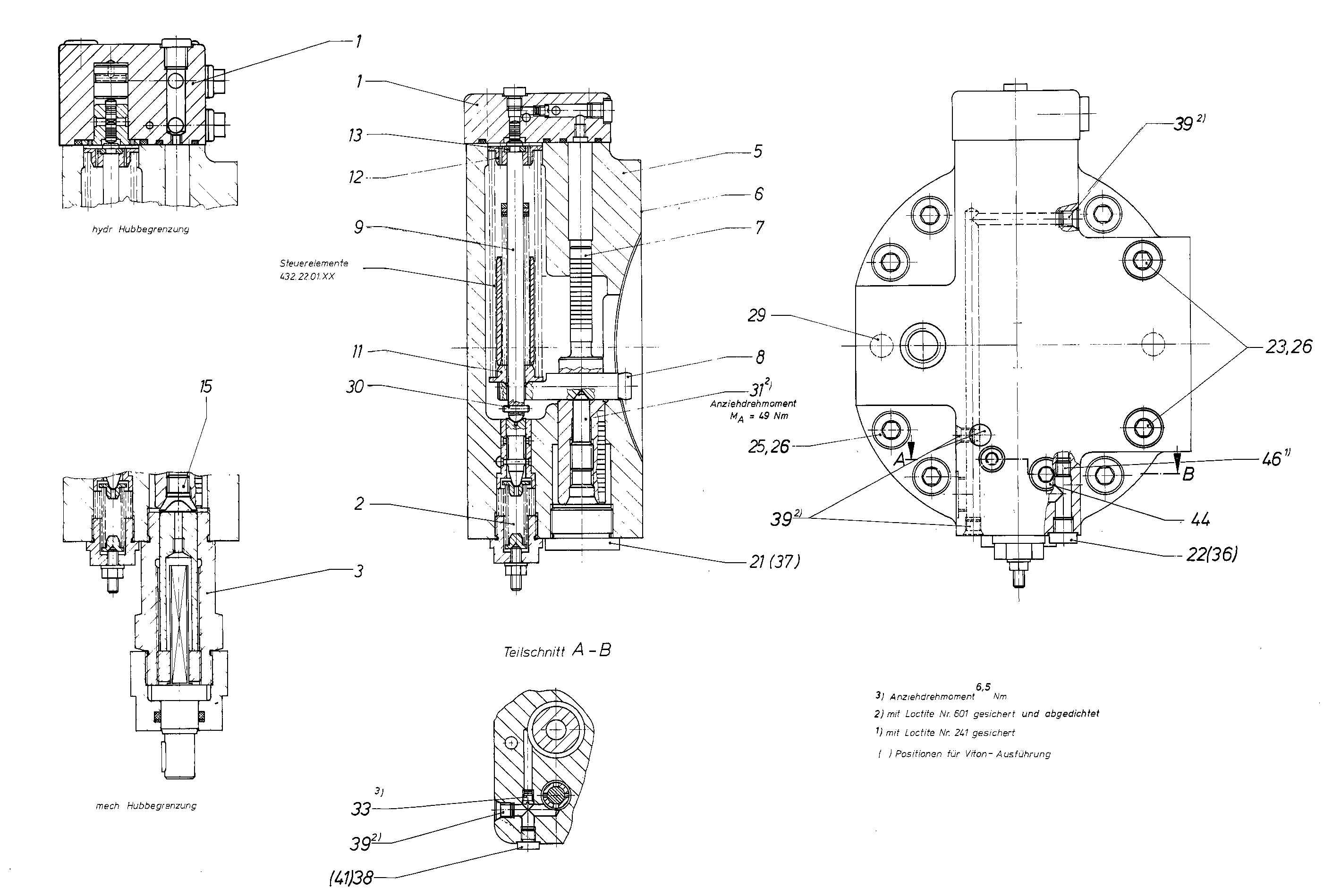

Assembly
CONTROLR909410599
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909401159 | COVER Assembly parts list →L | 1 | ||
| R909081755 | CONTROL PART Assembly parts list →L | 1 | ||
| R909406270 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902011878 | SEALD | 1 | ||
| R909409965 | POSITIONING PISTON | 1 | ||
| R909073897 | POSITIONING STUD | 1 | ||
| R909073898 | GUIDE ROD | 1 | ||
| R909073469 | SPRING DISK | 1 | ||
| R909073653 | SPRING DISK | 1 | ||
| R909073652 | RING | 1 | ||
| R909153861 | SCREW PLUGD | 1 | ||
| R909153364 | SCREW PLUGD | 1 | ||
| R909083105 | SOCKET HEAD CAP SCREW | 2 | ||
| R909083207 | SOCKET HEAD CAP SCREW | 6 | ||
| R909083252 | SPRING LOCK WASHER | 8 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R913016375 | SLOTTED SPRING PIN | 1 | ||
| R909409591 | SETSCREW | 1 | ||
| R909156493 | NOZZLE | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909151692 | SCREW PLUGD | 2 | ||
| R909083493 | SETSCREW | 1 |
