Assembly

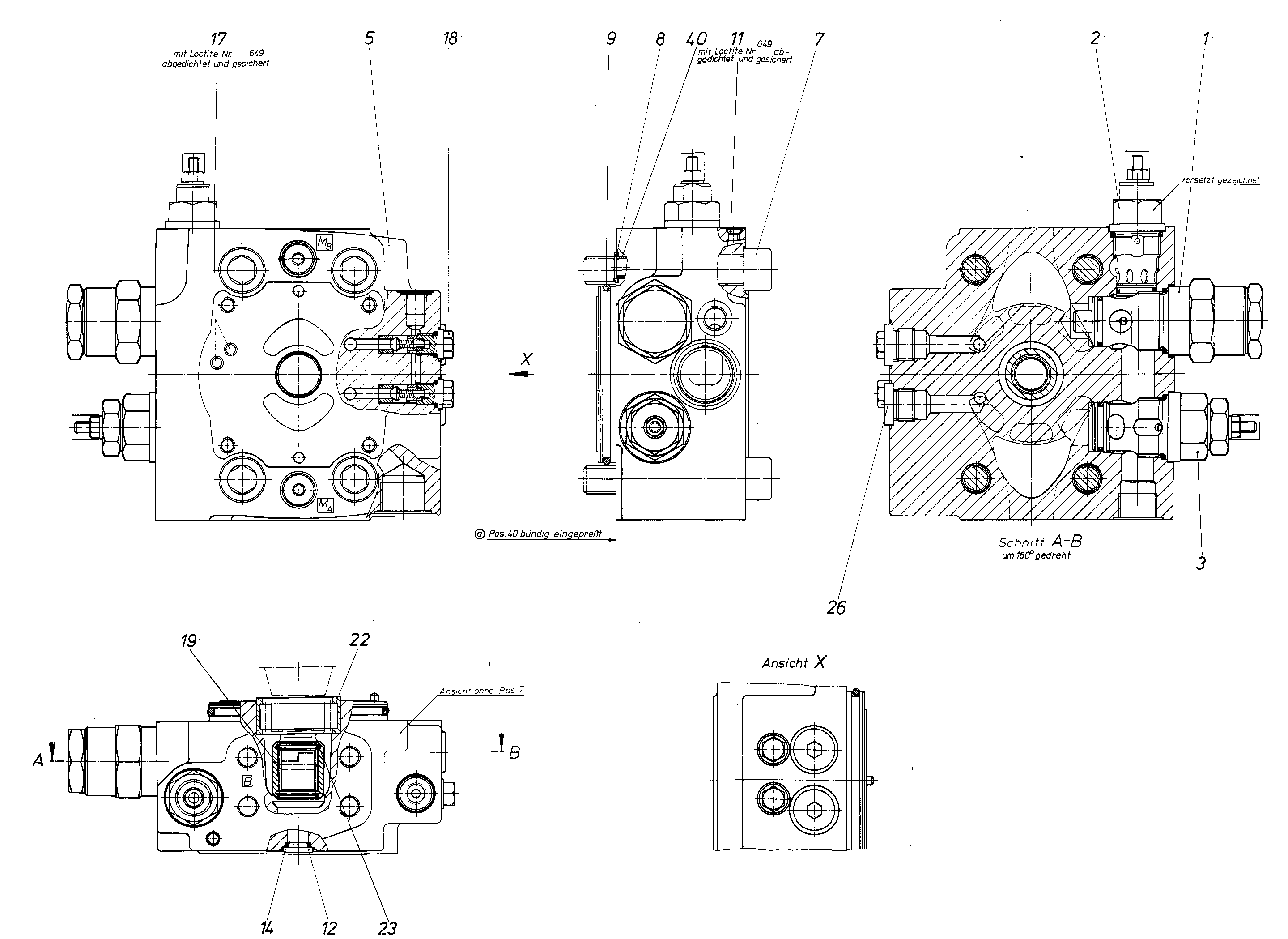

CONNECTION PLATER909411833
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909409805 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R909427211 | PRESSURE RELIEF VALVE Assembly parts list →L | 1 | ||
| R902603814 | DELIVERY-VALVE ASSEMBLY Assembly parts list →L | 1 | ||
| R909079444 | CONNECTION PLATE | 1 | ||
| R909083141 | SOCKET HEAD CAP SCREW | 4 | ||
| R909157084 | QUAD RINGD | 2 | ||
| R909083825 | O-RINGD | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083219 | SCREW PLUG | 2 | ||
| R909083749 | O-RINGD | 2 | ||
| R909078295 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909079500 | CHECK VALVE | 2 | ||
| R909079257 | COUPLING HUB | 1 | ||
| R909153103 | CYL. ROLLER BEARING | 1 | ||
| R909154167 | SNAP RING | 1 | ||
| R909153815 | SCREW PLUGD | 2 | ||
| R902601517 | SLOTTED SPRING PIN | 1 |
