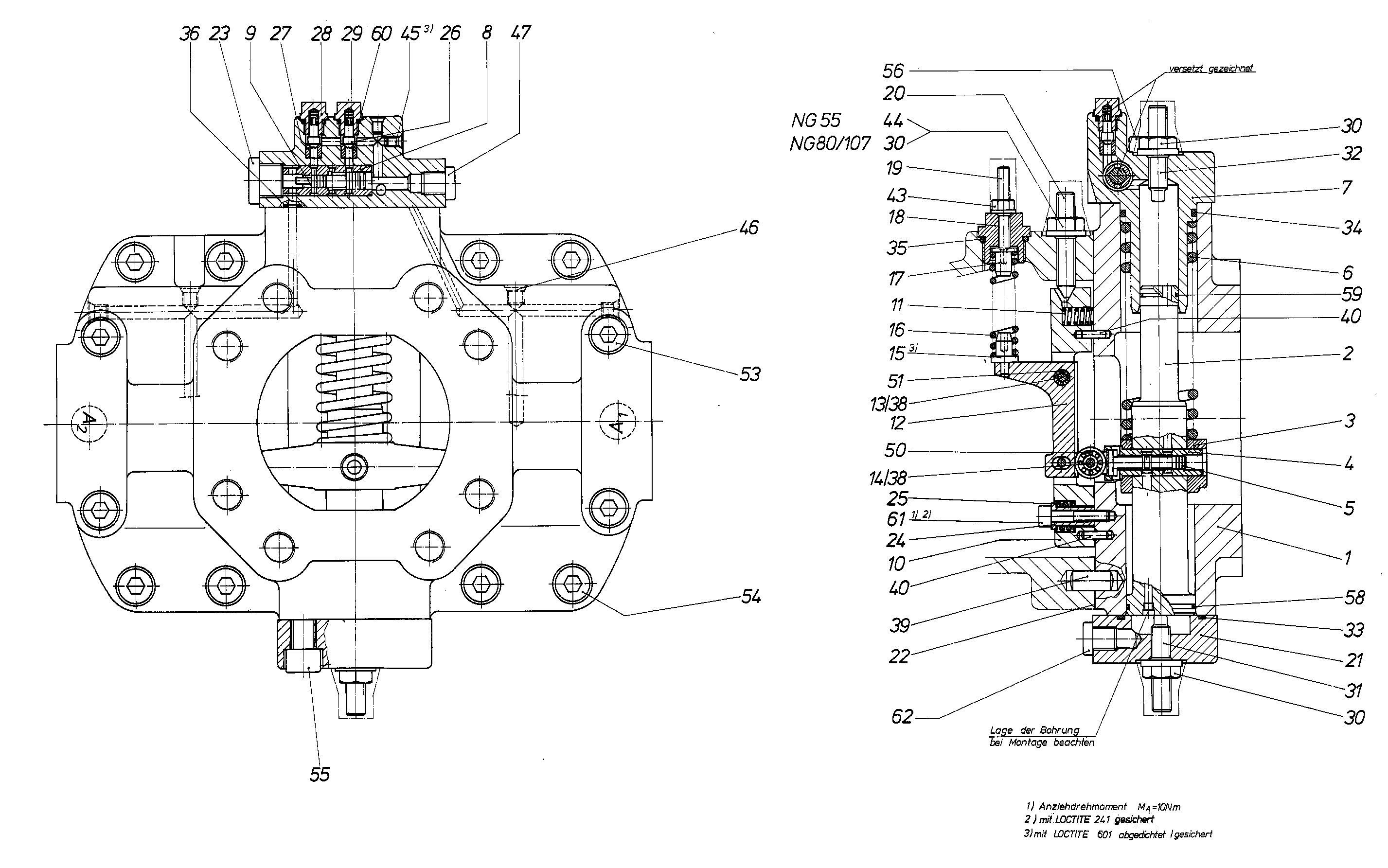

Assembly
CONTROLR909412157
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909419292 | CONTROL HOUSING | 1 | ||
| R909412860 | POSITIONING PISTON | 1 | ||
| R909415117 | SWIVEL FORK | 1 | ||
| R909412862 | CONTROL SLEEVE | 1 | ||
| R909412863 | CONTROL PISTON | 1 | ||
| R909410807 | COMPRESSION SPRING | 1 | ||
| R909412363 | PRESS. AVERAGING VALVE HOUSING | 1 | ||
| R909412333 | CONTROL SLEEVE | 1 | ||
| R909412334 | CONTROL PISTON | 1 | ||
| R909418674 | BEARING PEDESTAL | 1 | ||
| R909073211 | COMPRESSION SPRING | 1 | ||
| R909419628 | REGULATOR LEVER | 1 | ||
| R909415924 | BOLT | 2 | ||
| R909411231 | BOLT | 1 | ||
| R909411224 | SPRING DISK | 1 | ||
| R909419643 | COMPRESSION SPRING | 1 | ||
| R909410247 | SPRING DISK | 1 | ||
| R909430549 | SCREW PLUG | 1 | ||
| R909430546 | SETSCREW | 1 | ||
| R909412161 | SETSCREW | 1 | ||
| R909410811 | COVER | 1 | ||
| R909650390 | SEALD | 1 | ||
| R909412335 | SCREW PLUG | 1 | ||
| R909418581 | BACK-UP BUSHING | 1 | ||
| R909418577 | COMPRESSION SPRING | 1 | ||
| R909415579 | VALVE CONE | 2 | ||
| R909415815 | BUSHING | 2 | ||
| R909415580 | SCREW PLUG | 2 | ||
| R909060519 | COMPRESSION SPRING | 2 | ||
| R909152426 | SEALING NUTD | 2 | ||
| R909447150 | SETSCREW Assembly parts list →L | 1 | ||
| R909447150 | SETSCREW Assembly parts list →L | 1 | ||
| R909085684 | O-RINGD | 1 | ||
| R909086730 | O-RINGD | 1 | ||
| R909083758 | O-RINGD | 1 | ||
| R909086380 | O-RINGD | 2 | ||
| R909085810 | LOCKING WASHER | 6 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| 2917890095 | STRAIGHT PIN | 2 | ||
| R909157764 | SEALING NUT | 1 | ||
| R909152707 | SEALING NUTD | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 3 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 2 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909087327 | DEEP-GROOVE BALL BEARING | 1 | ||
| R909156271 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083065 | SOCKET HEAD CAP SCREW | 8 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083063 | SOCKET HEAD CAP SCREW | 2 | ||
| R902602841 | STEEL SEALING RINGD | 1 | ||
| R909156358 | R-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909083024 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 |
