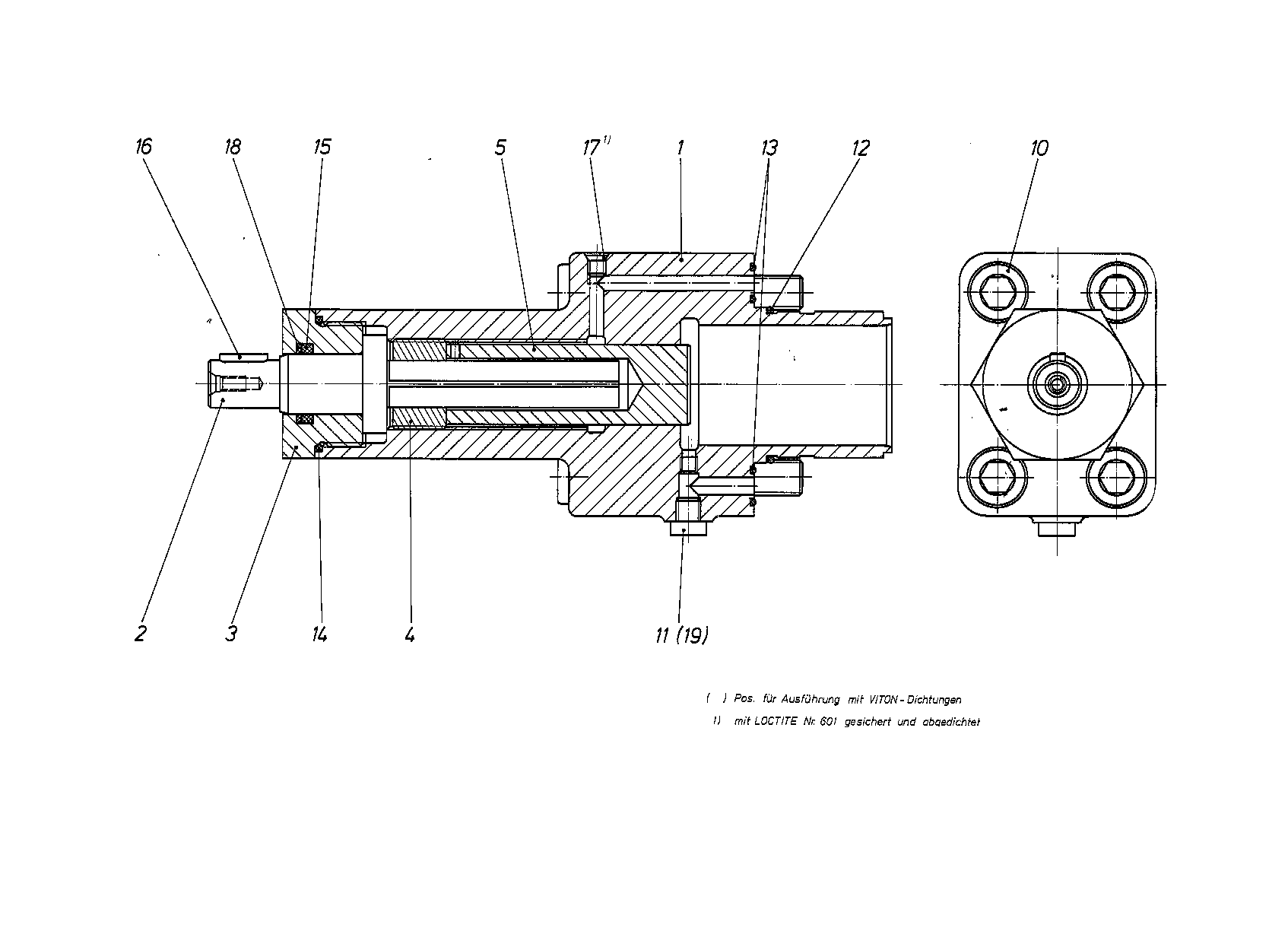

Assembly
STROKE LIMITERR909413090
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909413086 | GUIDE COVER | 1 | ||
| R909413088 | CARRIER | 1 | ||
| R909413087 | SCREW PLUG | 1 | ||
| R909419714 | DRIVER SCREW | 1 | ||
| R909413089 | PISTON | 1 | ||
| R909083099 | SOCKET HEAD CAP SCREW | 4 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909084889 | O-RINGD | 1 | ||
| R909085709 | O-RINGD | 2 | ||
| R909085545 | O-RINGD | 1 | ||
| R909083794 | O-RINGD | 1 | ||
| R909083968 | PARALLEL KEY | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909153977 | BACKUP RINGD | 1 |
