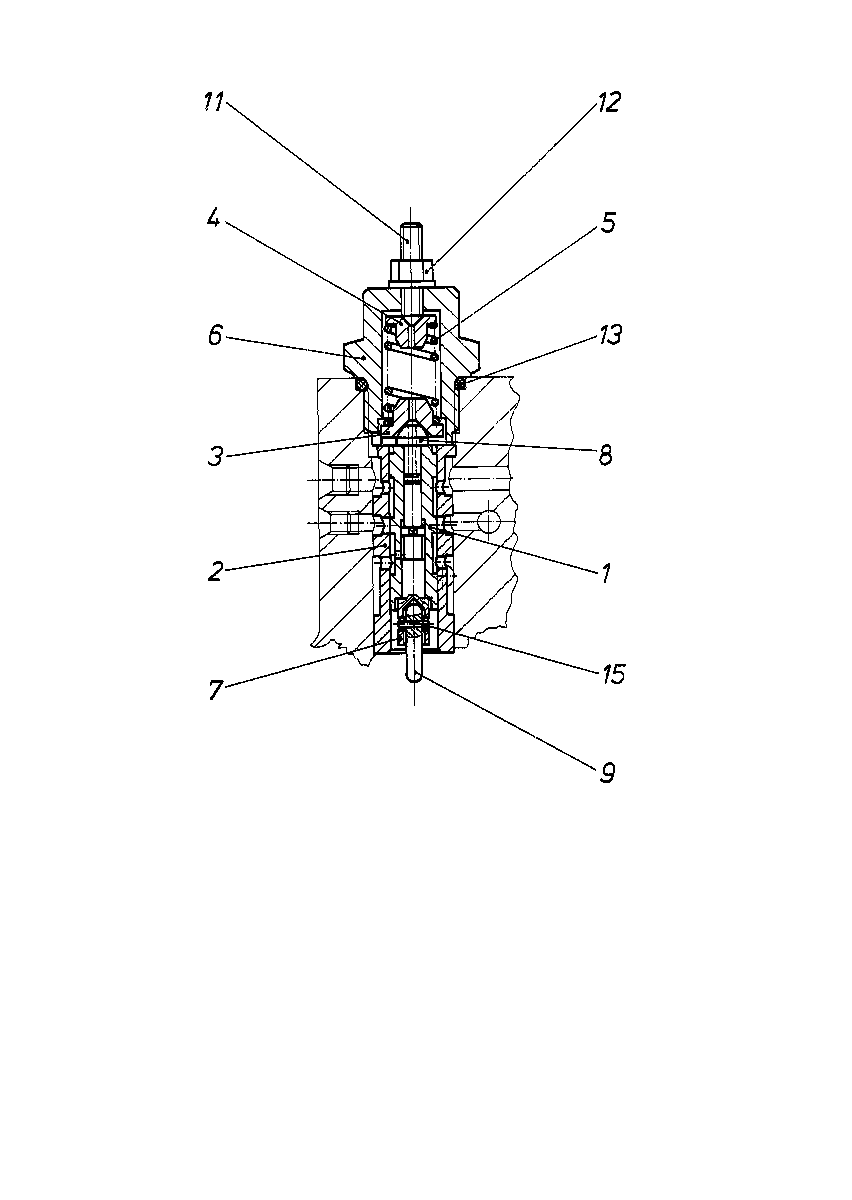

Assembly
CONTROL PARTR909413713
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420396 | CONTROL SLEEVE | 1 | ||
| R909413030 | CONTROL SLEEVE | 1 | ||
| 3 | R909421369 | SPRING DISK | 1 | |
| R909413038 | SPRING DISK | 1 | ||
| 5 | R909413138 | COMPRESSION SPRING | 1 | |
| 6 | R909412349 | SCREW PLUG | 1 | |
| 7 | R909425607 | POSITIONING PISTON | 1 | |
| 8 | R909420397 | BOLT | 1 | |
| 9 | R909426511 | PIN | 1 | |
| 11 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909157511 | SLOTTED SPRING PIN | 1 |
