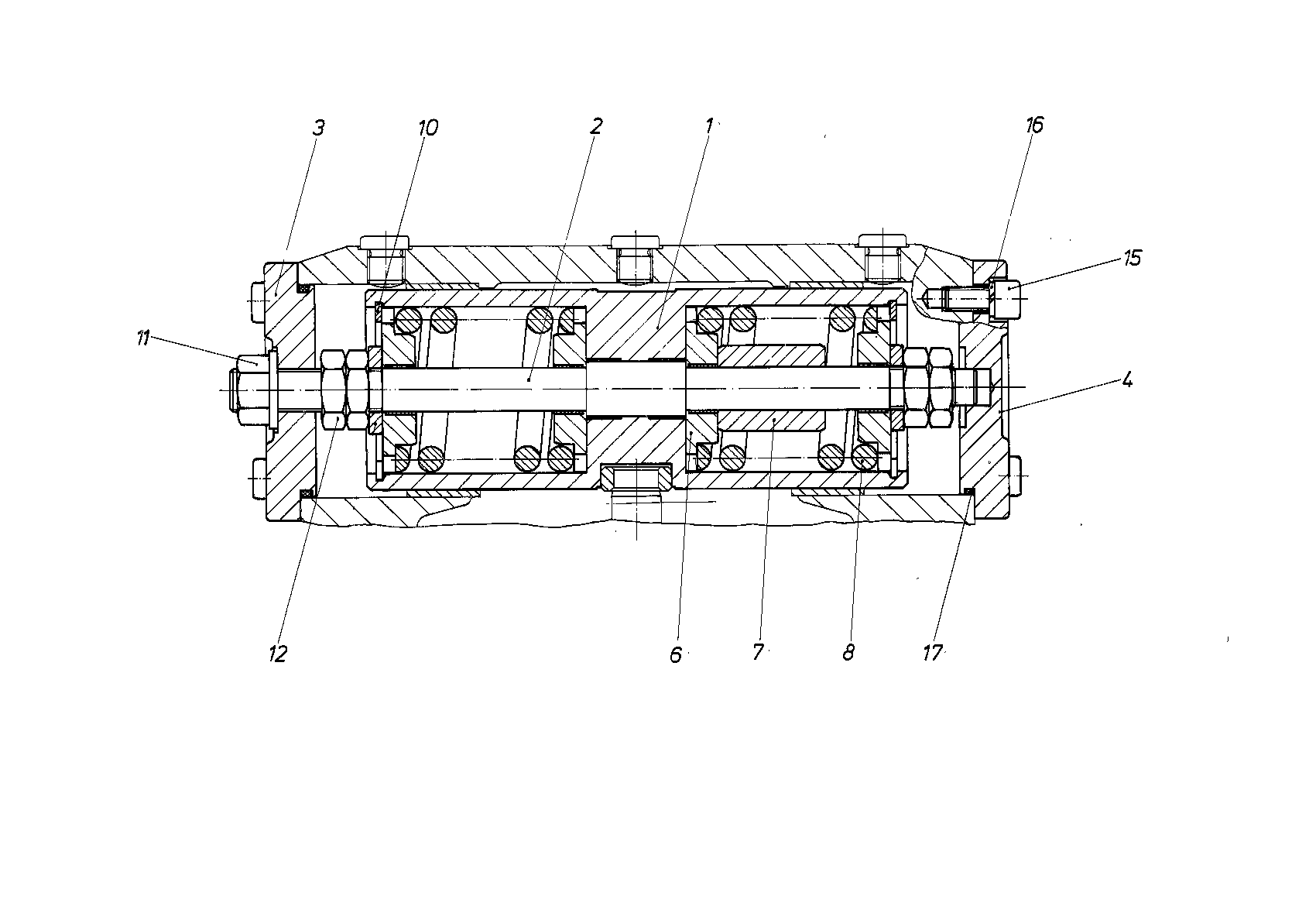

Assembly
CONTROLR909414470
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R902002649 | POSITIONING PISTON | 1 | ||
| R909431703 | ROD | 1 | ||
| R909400431 | COVER | 1 | ||
| R909414458 | COVER | 1 | ||
| R909408001 | SPRING DISK | 4 | ||
| R909078358 | SPACER BUSHING | 2 | ||
| R909078359 | SPACER BUSHING | 1 | ||
| R909078360 | SPACER BUSHING | 1 | ||
| 8 | R909418169 | COMPRESSION SPRING | 2 | |
| R909156216 | V-RING | 2 | ||
| 11 | R909152975 | SEALING NUTD | 1 | |
| R909156199 | HEXAGON NUT | 4 | ||
| 15 | R909083034 | SOCKET HEAD CAP SCREW | 8 | |
| R909083250 | SPRING LOCK WASHER | 8 | ||
| 17 | R909150068 | O-RINGD | 2 |
