Assembly

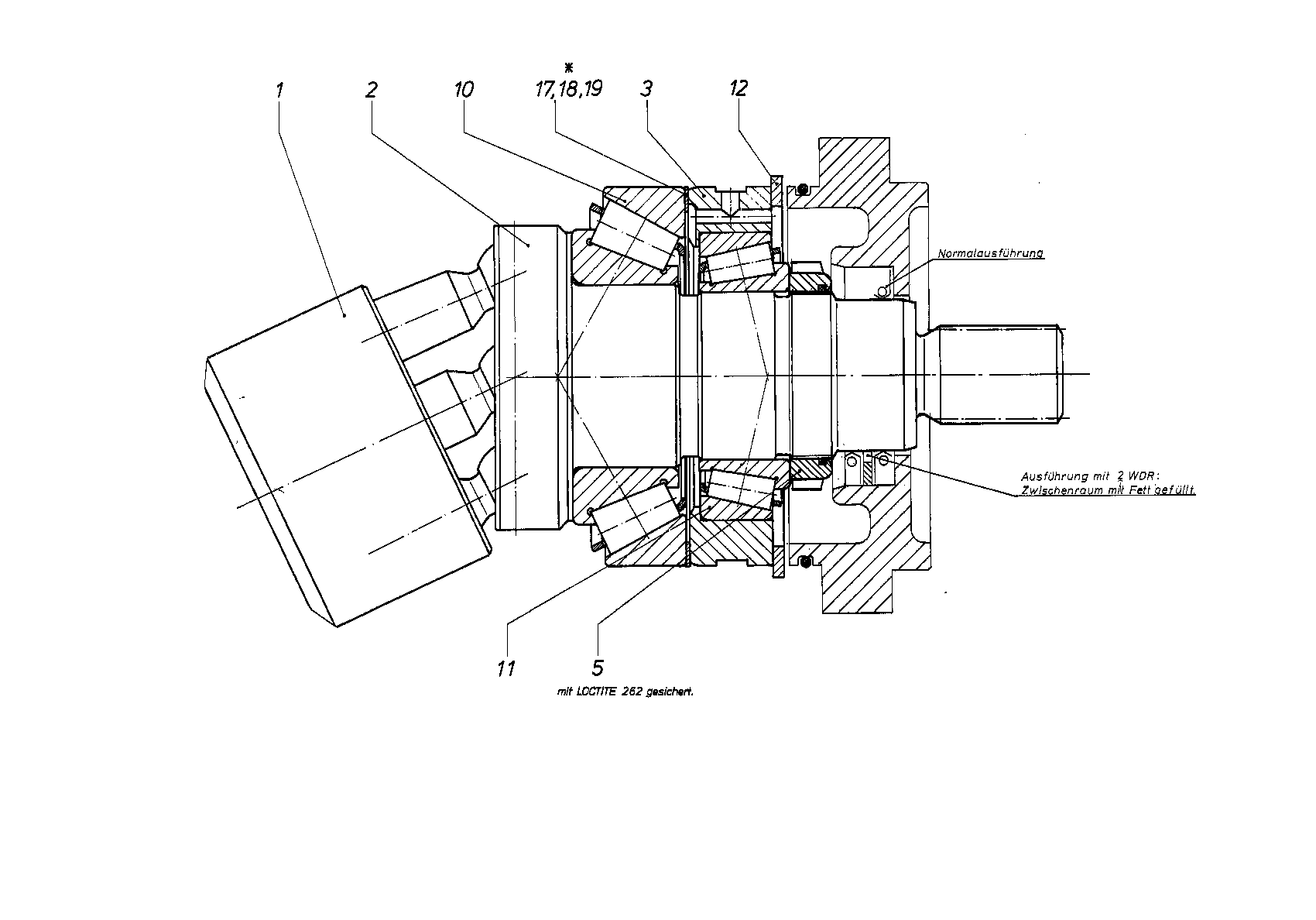

ROTARY GROUPR909414615
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909429554 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909425753 | DRIVE SHAFT | 1 | |
| 3 | R909408872 | BEARING RING | 1 | |
| 5 | R913037932 | SLOTTED ROUND NUT | 1 | |
| R909154382 | TAPERED-ROLLER BEARING | 1 | ||
| 11 | R909154293 | TAPERED-ROLLER BEARING | 1 | |
| R909152143 | RETAINING RING | 1 | ||
| 17 | R909154359 | SHIM RING | 2 | |
| 18 | R909154360 | SHIM RING | 1 | |
| 19 | R909156296 | SHIM RING | 1 |
