Assembly

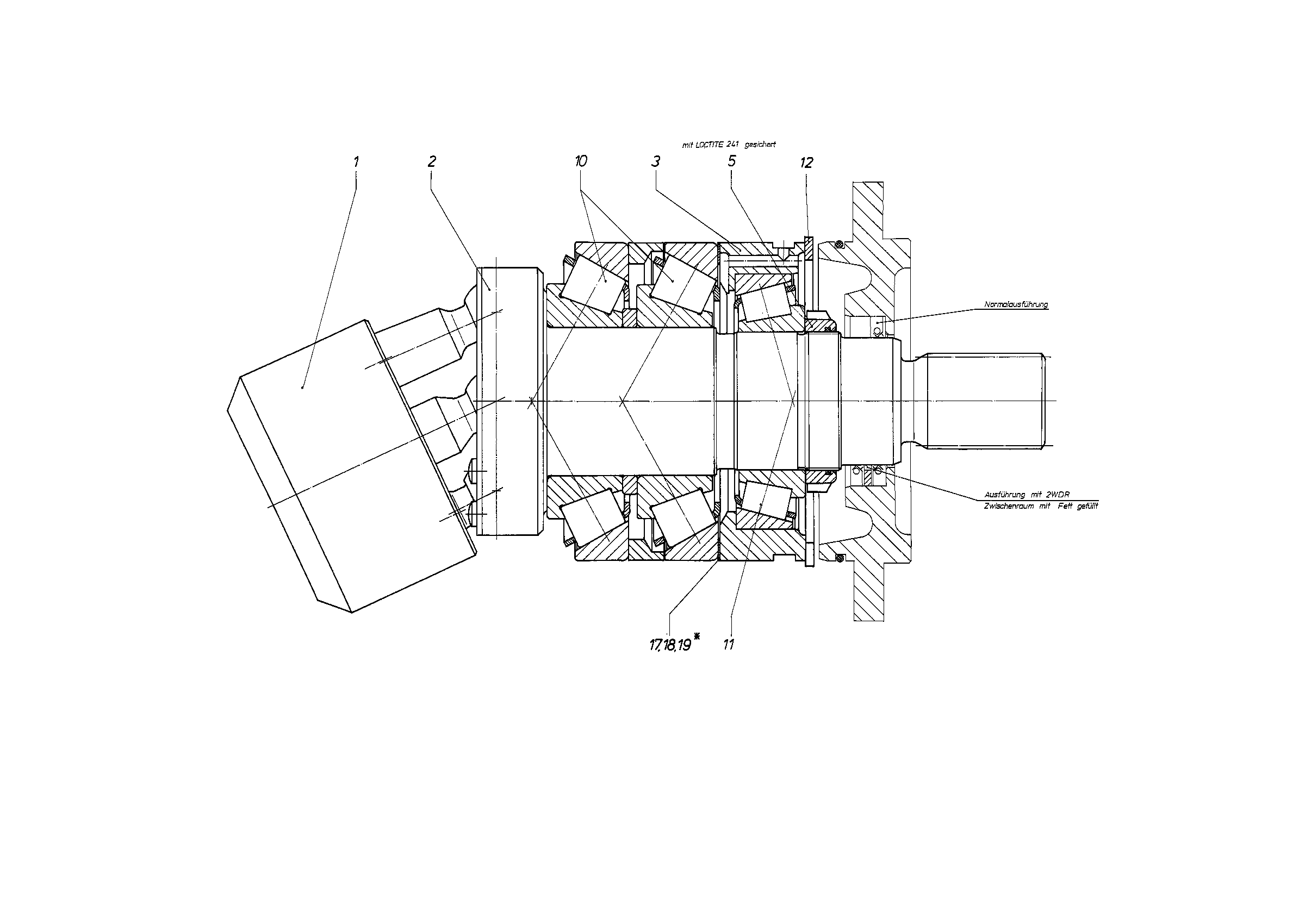

ROTARY GROUPR909414856
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909438818 | ROTARY GROUP Assembly parts list →L | 1 | ||
| 2 | R909425778 | DRIVE SHAFT | 1 | |
| R909411336 | BEARING RING | 1 | ||
| 5 | R913037933 | SLOTTED ROUND NUT | 1 | |
| R909156629 | TAPERED-ROLLER BEARING UNIT | 1 | ||
| 11 | R909151116 | TAPERED-ROLLER BEARING | 1 | |
| R909085127 | RETAINING RING | 1 | ||
| 17 | R909150087 | SHIM RING | 2 | |
| 18 | R909156388 | SHIM RING | 2 | |
| 19 | R909156389 | SHIM RING | 2 |
