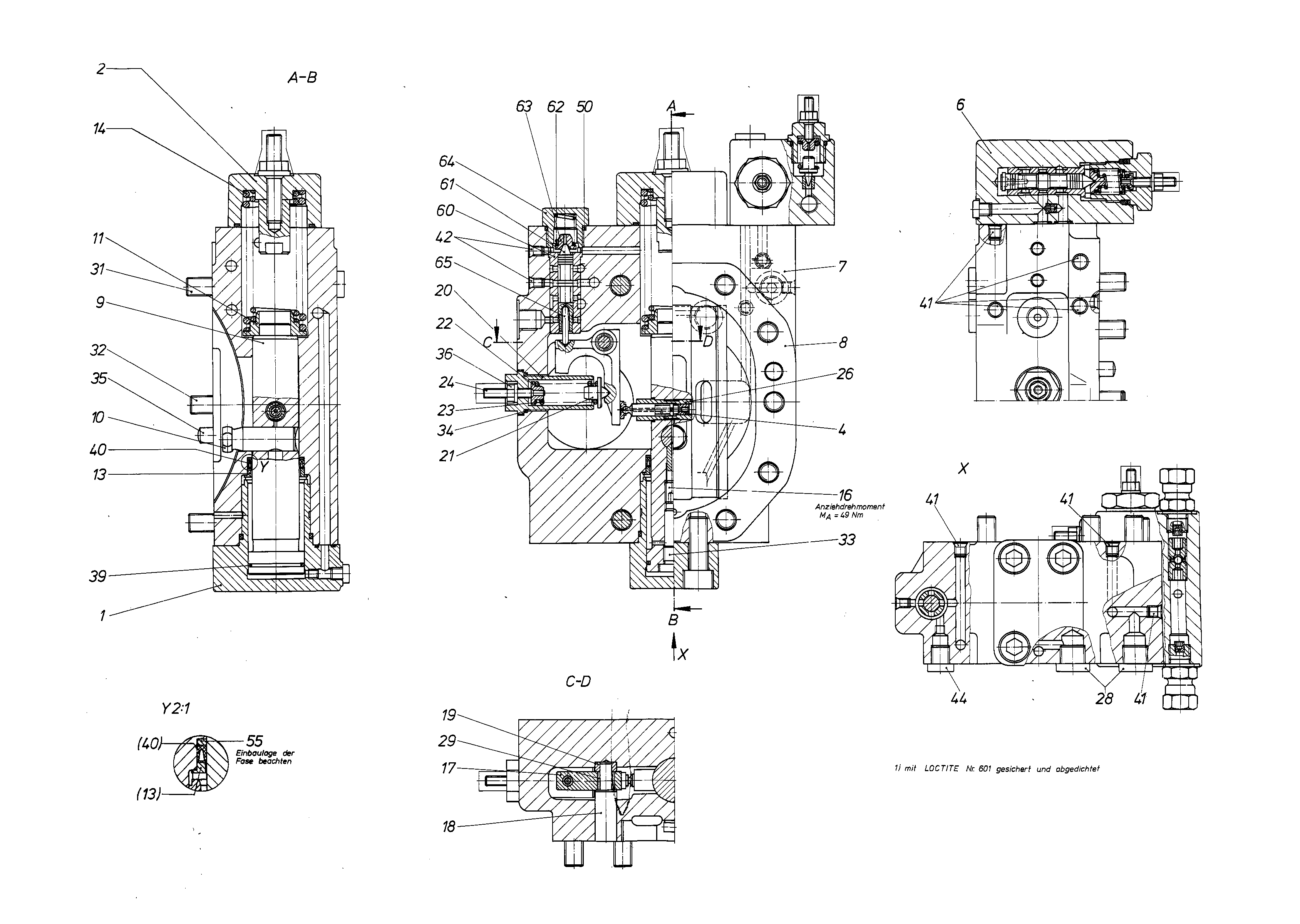

Assembly
CONTROLR909415981
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909433872 | COVER Assembly parts list →L | 1 | ||
| R909433733 | COVER Assembly parts list →L | 1 | ||
| R909419352 | PISTON PAD | 1 | ||
| R909424308 | SEQUENCE VALVE Assembly parts list →L | 1 | ||
| R909431745 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425502 | POSITIONING PISTON | 1 | ||
| R909425503 | POSITIONING STUD | 1 | ||
| R909431712 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909425746 | COMPRESSION SPRING | 1 | ||
| R909651970 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909413698 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909412931 | SCREW PLUG | 1 | ||
| R909435516 | SPRING DISK | 1 | ||
| R909435517 | SPRING DISK | 1 | ||
| R909413035 | COMPRESSION SPRING | 1 | ||
| R909421402 | SETSCREW | 1 | ||
| R909425555 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R909153815 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909152425 | SEALING NUTD | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| — | DOUBLE BREAK-OFF PLUG | 5 | ||
| — | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909151692 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R909424361 | BACKUP RING | 1 | ||
| R909431873 | CONTROL SLEEVE | 1 | ||
| R909431874 | CONTROL PISTON | 1 | ||
| R909415760 | COMPRESSION SPRING | 1 | ||
| R909065031 | SPRING DISK | 1 | ||
| R909412929 | SCREW PLUG | 1 | ||
| R909421354 | PIN | 1 |
