Assembly

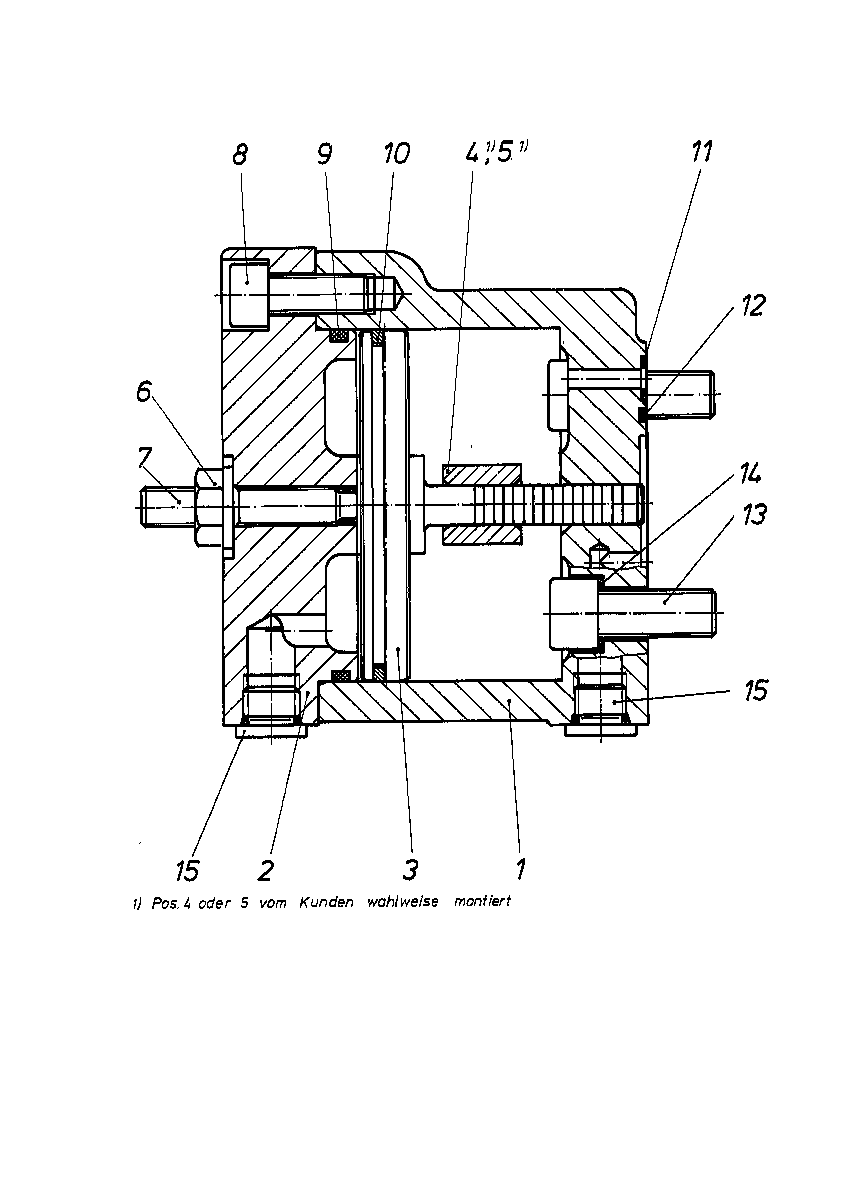

STROKE LIMITERR909416405
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909422048 | HOUSING | 1 | ||
| R909422410 | COVER | 1 | ||
| R909419128 | PISTON | 1 | ||
| 6 | R909152426 | SEALING NUTD | 1 | |
| 7 | R909152983 | SETSCREW | 1 | |
| R909083060 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083822 | O-RINGD | 1 | ||
| R909156827 | R-RINGD | 1 | ||
| 11 | R909086498 | O-RINGD | 1 | |
| R909086375 | O-RINGD | 1 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 4 | ||
| 14 | R909156900 | SEAL RINGD | 4 | |
| R909153371 | SCREW PLUGD | 2 |
