Assembly

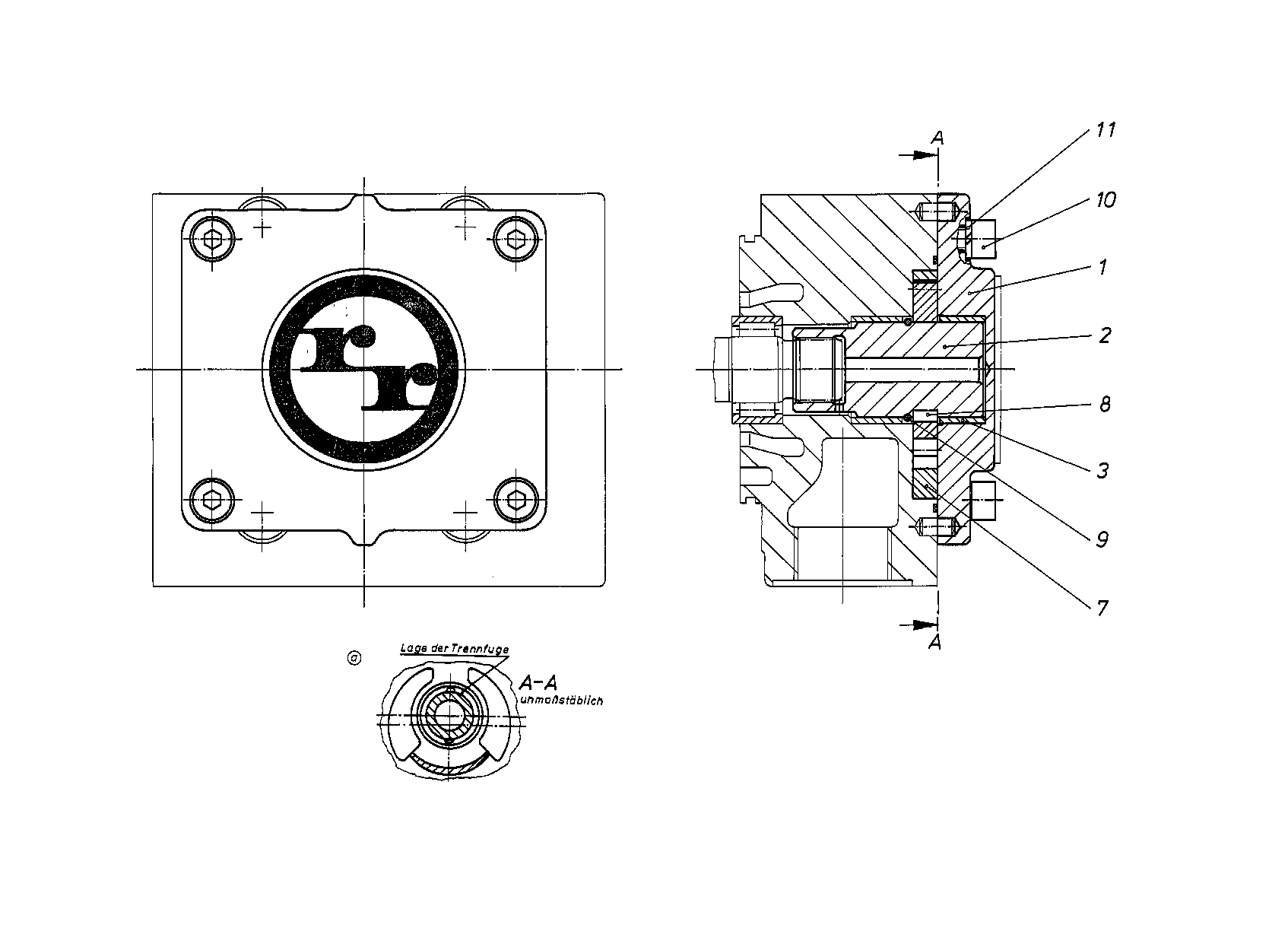

INTERNAL GEAR PUMPR909416447
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909415267 | BEARING COVER | 1 | ||
| R909416427 | PLUG-IN SHAFT | 1 | ||
| R902260545 | BUSHING | 1 | ||
| R909156850 | WHEEL SET | 1 | ||
| R902025647 | PARALLEL KEY | 1 | ||
| R909156741 | SNAP RING | 1 | ||
| R909083036 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083250 | SPRING LOCK WASHER | 4 |
