Assembly

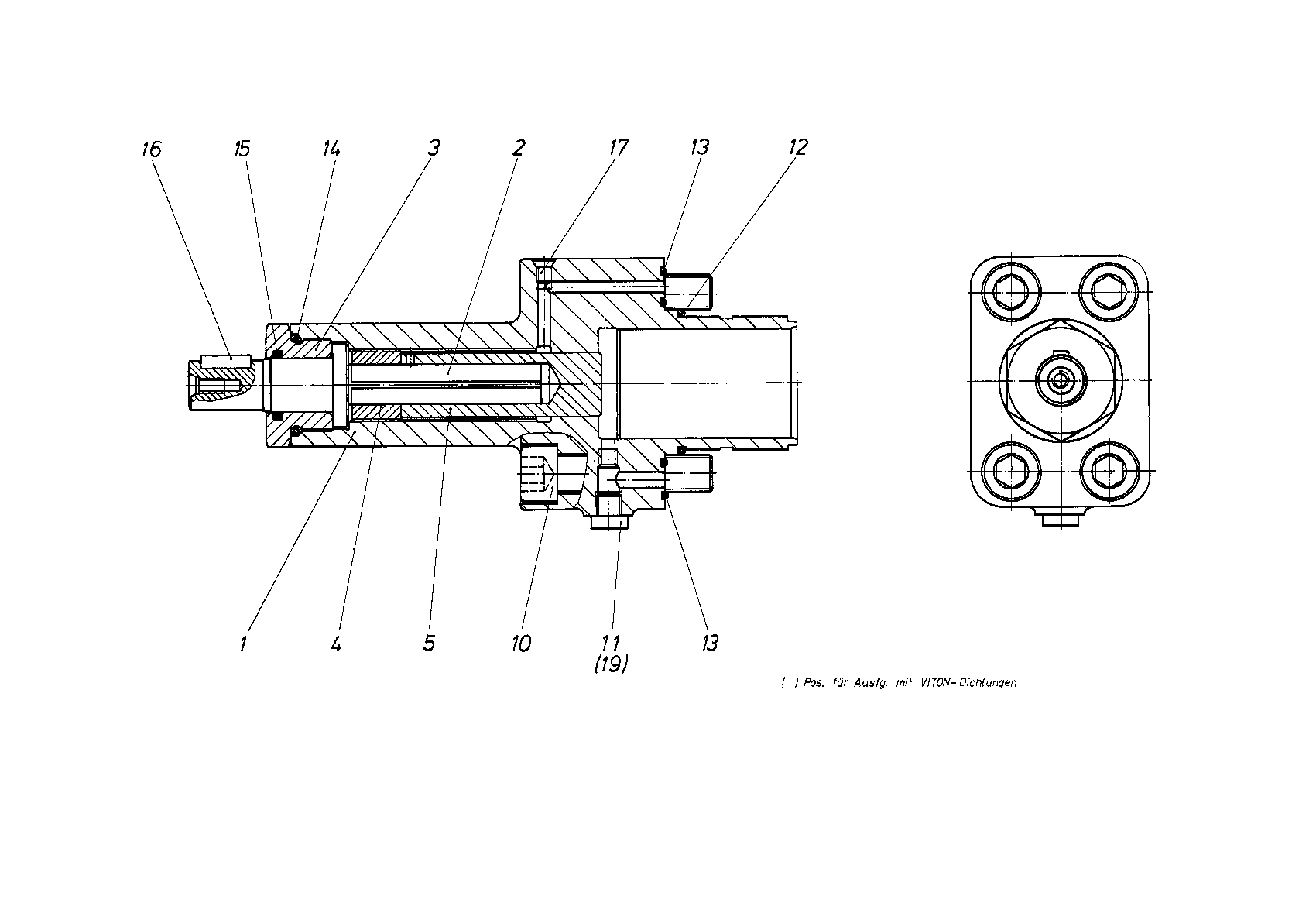

STROKE LIMITERR909417022
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416950 | GUIDE COVER | 1 | ||
| R909417021 | CARRIER | 1 | ||
| R909417019 | SCREW PLUG | 1 | ||
| R909417018 | DRIVER SCREW | 1 | ||
| R909417020 | PISTON | 1 | ||
| R909083067 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909154024 | SCREW PLUGD | 1 | |
| R909085545 | O-RINGD | 1 | ||
| R909086498 | O-RINGD | 2 | ||
| R909083764 | O-RINGD | 1 | ||
| 15 | R909083753 | O-RINGD | 1 | |
| R909083959 | PARALLEL KEY | 1 | ||
| R909831317 | DOUBLE BREAK-OFF PLUG | 1 |
