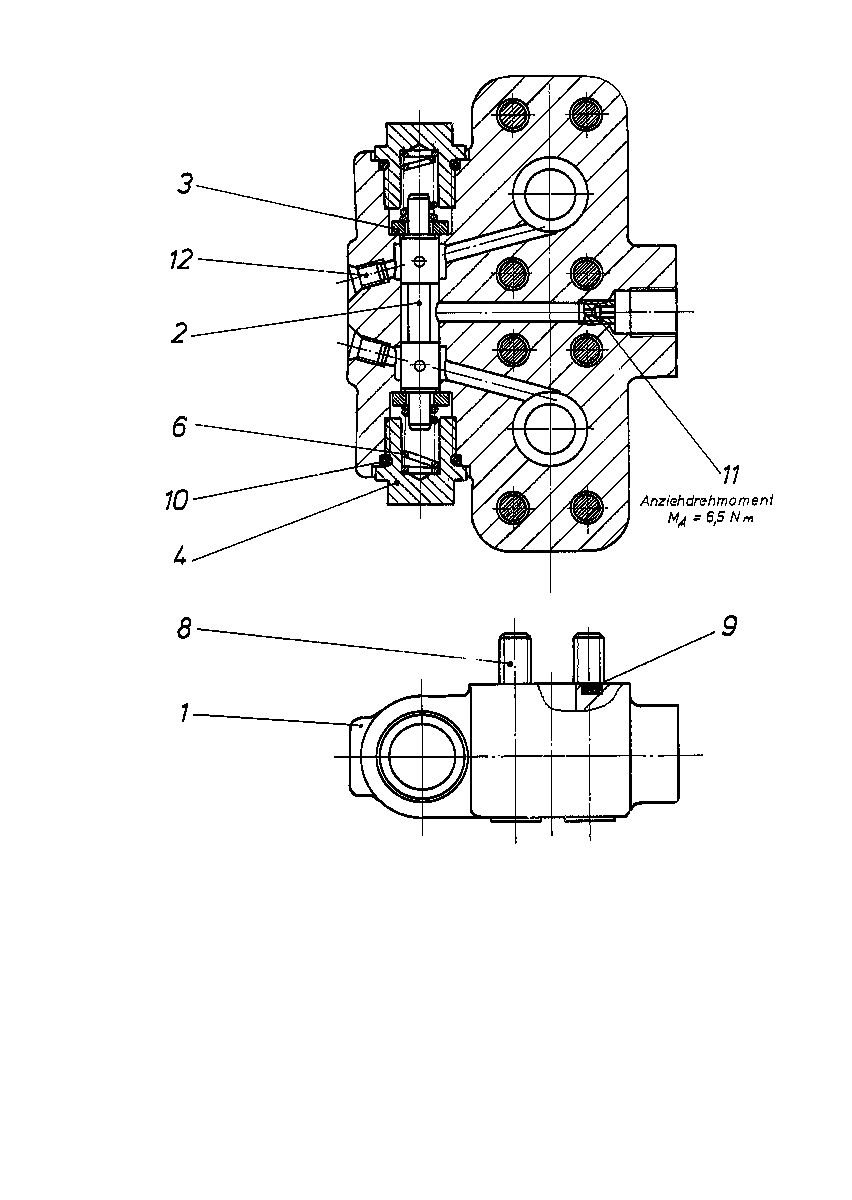

Assembly
FLUSHING VALVER909417176
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909424962 | HOUSING | 1 | |
| 2 | R909417175 | FLUSHING PISTON | 1 | |
| 3 | R909417112 | WASHER | 2 | |
| 4 | R909417111 | SCREW PLUG | 2 | |
| 6 | R909417113 | COMPRESSION SPRING | 2 | |
| 8 | R909083042 | SOCKET HEAD CAP SCREW | 8 | |
| 9 | R909085680 | O-RINGD | 2 | |
| 10 | R909086435 | O-RINGD | 2 | |
| 11 | R909156494 | NOZZLE | 1 | |
| 12 | R909831318 | DOUBLE BREAK-OFF PLUG | 1 |
