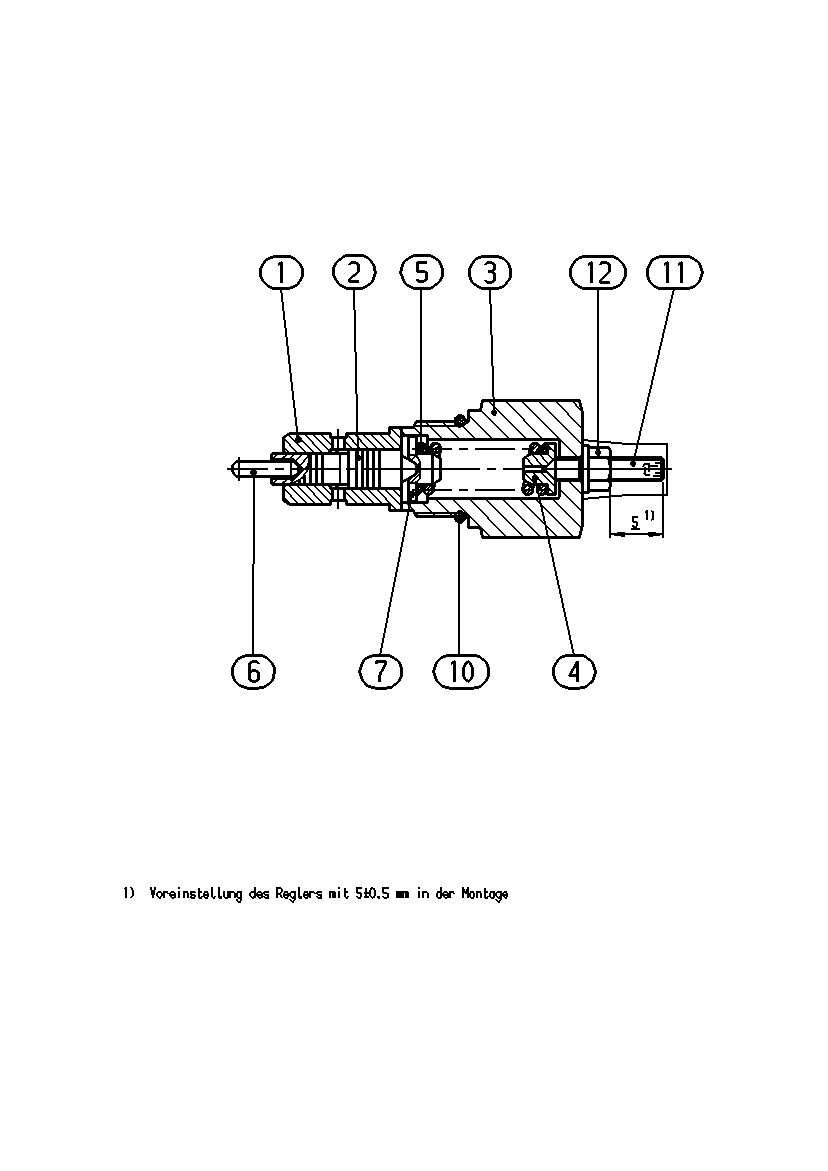

Assembly
ADJUSTING PARTR909418659
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418766 | GUIDE BUSHING | 1 | ||
| R909421690 | CONTROL PISTON | 1 | ||
| 3 | R909425333 | SCREW PLUG | 1 | |
| 4 | R909421368 | SPRING DISK | 1 | |
| R909418769 | COMPRESSION SPRING | 1 | ||
| R909421351 | PIN | 1 | ||
| 7 | R909439029 | SPRING DISK | 1 | |
| 10 | R909086517 | O-RINGD | 1 | |
| 11 | R909420991 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 |
