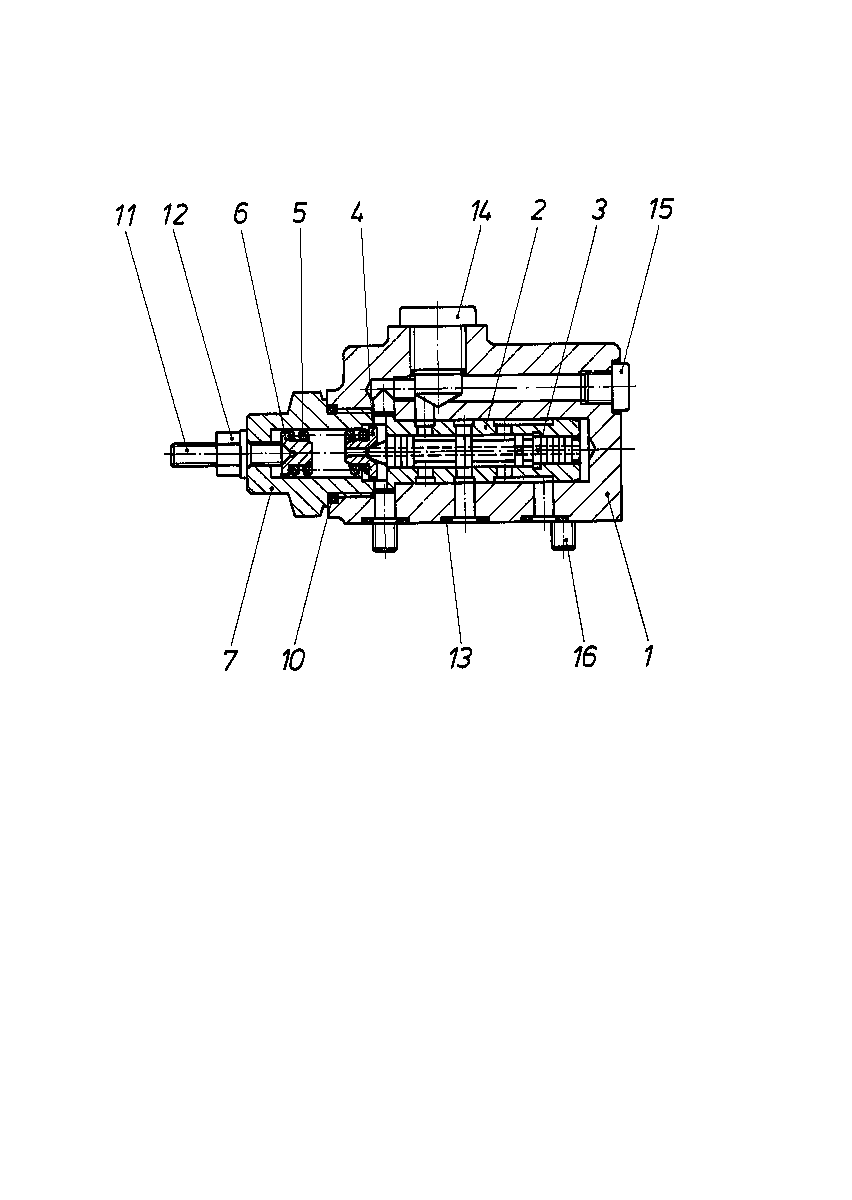

Assembly
SEQUENCE VALVER909418660
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909418905 | HOUSING | 1 | |
| 2 | R909421543 | CONTROL SLEEVE | 1 | |
| 3 | R909421544 | CONTROL PISTON | 1 | |
| R909418908 | SPRING DISK | 1 | ||
| R909418909 | COMPRESSION SPRING | 1 | ||
| R909416961 | SPRING DISK | 1 | ||
| 7 | R909416959 | SCREW PLUG | 1 | |
| R909083758 | O-RINGD | 1 | ||
| 11 | R909420991 | SETSCREW | 1 | |
| 12 | R909152425 | SEALING NUTD | 1 | |
| 13 | R909086498 | O-RINGD | 3 | |
| 14 | R909151979 | SCREW PLUGD | 1 | |
| R909154024 | SCREW PLUGD | 1 | ||
| R909083027 | SOCKET HEAD CAP SCREW | 4 |
