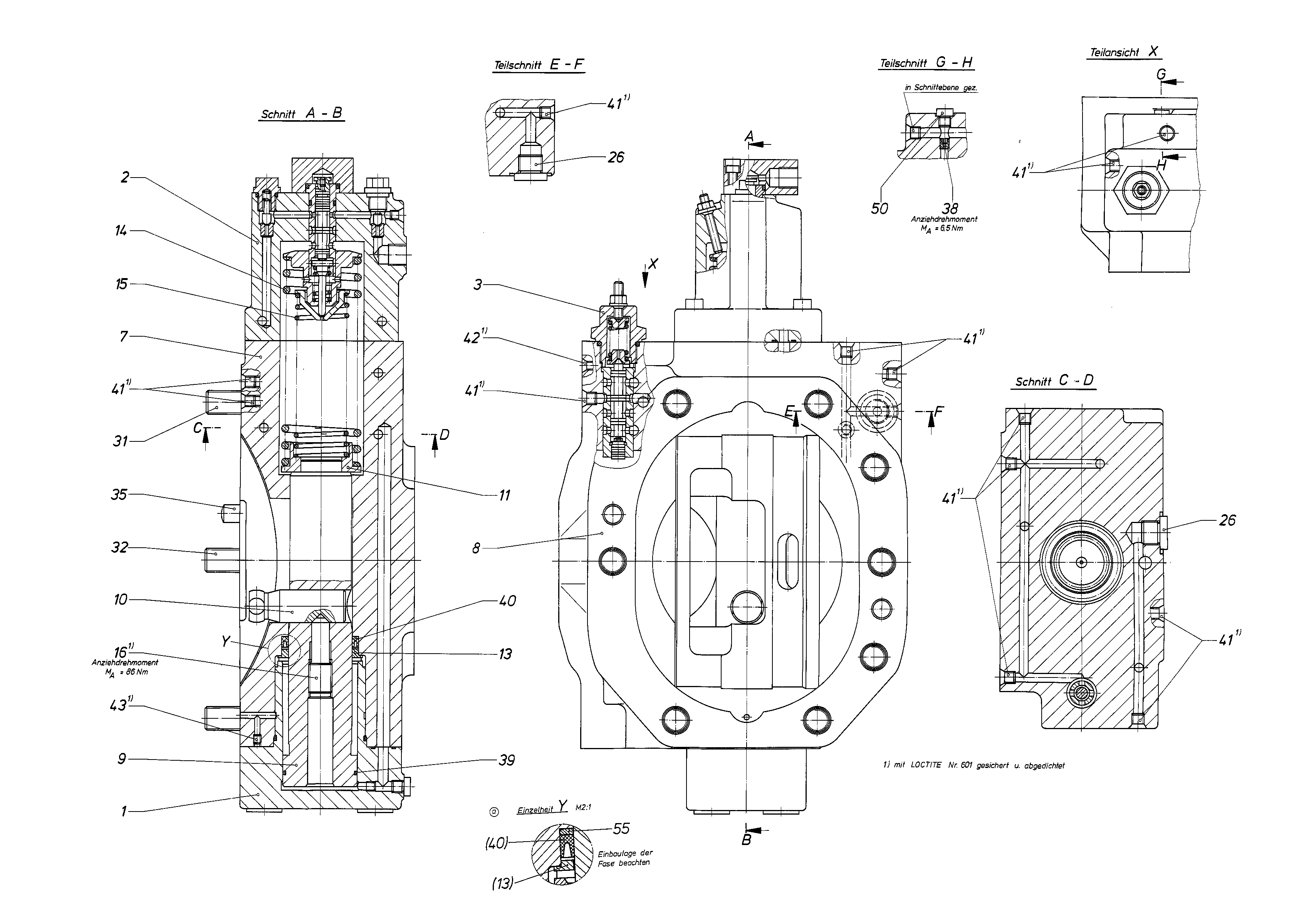

Assembly
CONTROLR909418934
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909418613 | COVER Assembly parts list →L | 1 | ||
| R909424733 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909416172 | CONTROL PART Assembly parts list →L | 1 | ||
| R909418503 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024645 | SEALD | 1 | ||
| R909425453 | POSITIONING PISTON | 1 | ||
| R909425450 | POSITIONING STUD | 1 | ||
| R909418627 | SPRING DISK | 1 | ||
| R909424412 | RING | 1 | ||
| R909418517 | COMPRESSION SPRING | 1 | ||
| R909418518 | COMPRESSION SPRING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909083144 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083131 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009666 | STRAIGHT PIN | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156777 | R-RINGD | 1 | ||
| R909157036 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909424410 | BACKUP RING | 1 |
