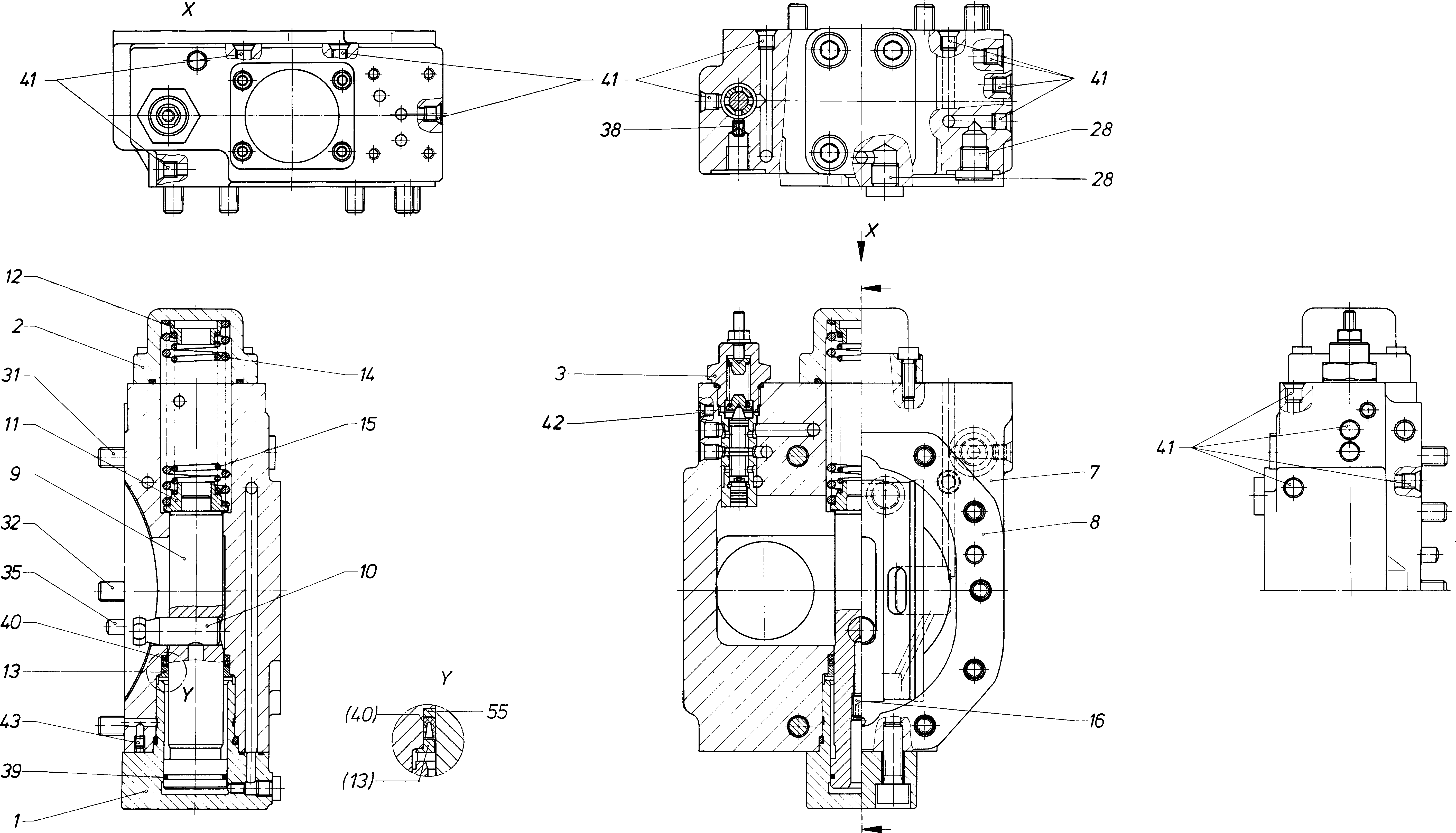

Assembly
CONTROLR909419249
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909414177 | COVER Assembly parts list →L | 1 | ||
| R909428117 | COVER Assembly parts list →L | 1 | ||
| R909419250 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419240 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| R902024642 | SEAL | 1 | ||
| R909425517 | POSITIONING PISTON | 1 | ||
| R909425519 | POSITIONING STUD | 1 | ||
| R909416594 | SPRING DISK | 1 | ||
| R909416593 | SPRING DISK | 1 | ||
| R909422951 | RING | 1 | ||
| R909416021 | COMPRESSION SPRING | 1 | ||
| R909416333 | COMPRESSION SPRING | 1 | ||
| R909409590 | SETSCREW | 1 | ||
| R909151979 | SCREW PLUG | 2 | ||
| R909083070 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083061 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R902602841 | STEEL SEALING RING | 1 | ||
| R909156544 | ROD SEAL | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 7 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909422952 | WASHER | 1 |
