Assembly

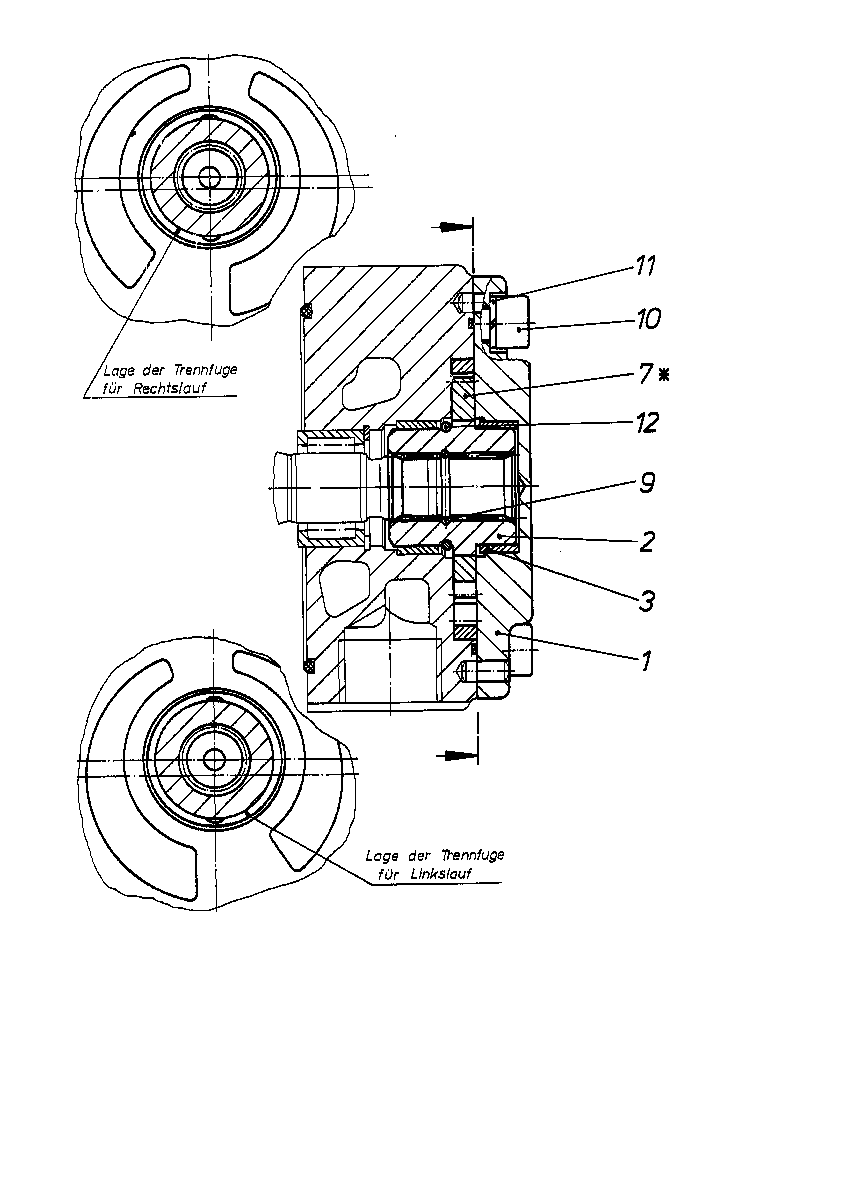

INTERNAL GEAR PUMP ASSEMBLYR909419541
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909419124 | BEARING COVER | 1 | |
| 2 | R909419170 | PLUG-IN SHAFT | 1 | |
| 3 | R909432238 | BUSHING | 1 | |
| 7 | R909157180 | WHEEL SET | 1 | |
| 9 | R902601470 | SNAP RING | 1 | |
| R909083034 | SOCKET HEAD CAP SCREW | 4 | ||
| 11 | R909083250 | SPRING LOCK WASHER | 4 | |
| R909153834 | SNAP RING | 1 |
