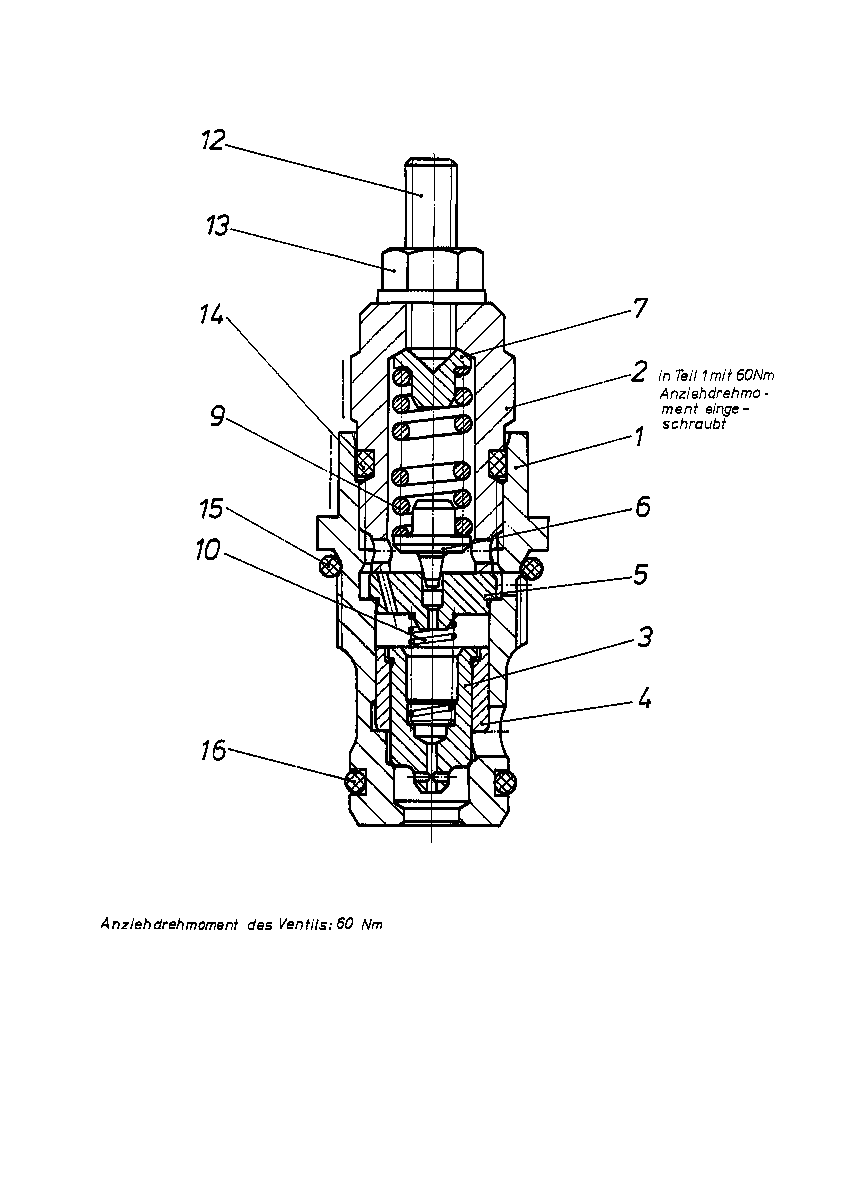

Assembly
PRESSURE RELIEF VALVER909419675
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909422484 | VALVE BUSHING | 1 | ||
| 2 | R909419677 | SPRING SLEEV | 1 | |
| 3 | R909419678 | PISTON | 1 | |
| 4 | R909415675 | RING PISTON | 1 | |
| 5 | R909420968 | VALVE PLATE | 1 | |
| 6 | R909443701 | VALVE CONE | 1 | |
| 7 | R909415678 | SPRING DISK | 1 | |
| 9 | R909415687 | COMPRESSION SPRING | 1 | |
| R909419679 | COMPRESSION SPRING | 1 | ||
| 12 | R909153284 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909083753 | O-RINGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| 16 | R909083753 | O-RINGD | 1 |
