Assembly

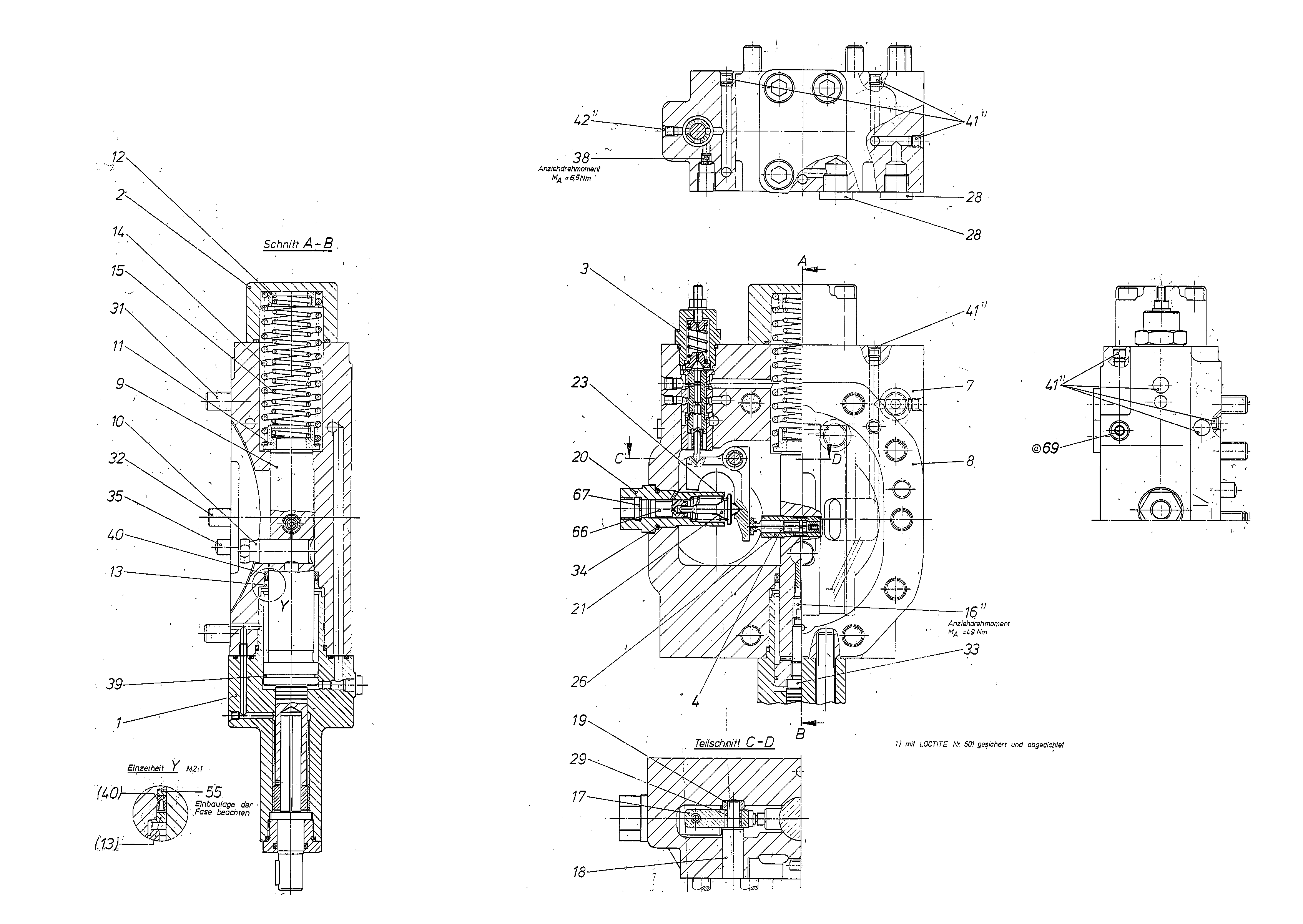

CONTROLR909419795
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909413015 | STROKE LIMITER Assembly parts list →L | 1 | ||
| R909412456 | COVER Assembly parts list →L | 1 | ||
| R909413031 | CONTROL PART Assembly parts list →L | 1 | ||
| R909419351 | PISTON PAD | 1 | ||
| R909430776 | COVER PLATE, CLOCKWISE ROTATION | 1 | ||
| R902024643 | SEALD | 1 | ||
| R909425504 | POSITIONING PISTON | 1 | ||
| R909425505 | POSITIONING STUD | 1 | ||
| R909412402 | SPRING DISK | 1 | ||
| R909412450 | SPRING DISK | 1 | ||
| R909422953 | RING | 1 | ||
| R909412452 | COMPRESSION SPRING | 1 | ||
| R909412451 | COMPRESSION SPRING | 1 | ||
| R909413014 | SETSCREW | 1 | ||
| R909415563 | LEVER | 1 | ||
| R909412688 | BEARING BOLT | 1 | ||
| R909412689 | BUSHING | 1 | ||
| R909419610 | SCREW PLUG | 1 | ||
| R909419244 | SPRING BOLT | 1 | ||
| R909408271 | COMPRESSION SPRING | 1 | ||
| R909425554 | ADJUSTING BUSH | 1 | ||
| R909153816 | SCREW PLUGD | 2 | ||
| R909156588 | NEEDLE-ROLLER ASSEMBLY | 1 | ||
| R909083100 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083087 | SOCKET HEAD CAP SCREW | 1 | ||
| R909151979 | SCREW PLUGD | 1 | ||
| R909086517 | O-RINGD | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156493 | NOZZLE | 1 | ||
| R909156647 | R-RINGD | 1 | ||
| R909156541 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 5 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909422954 | WASHER | 1 | ||
| R909419611 | PISTON | 1 | ||
| R909156539 | SNAP RING | 1 | ||
| R909154024 | SCREW PLUGD | 1 |
