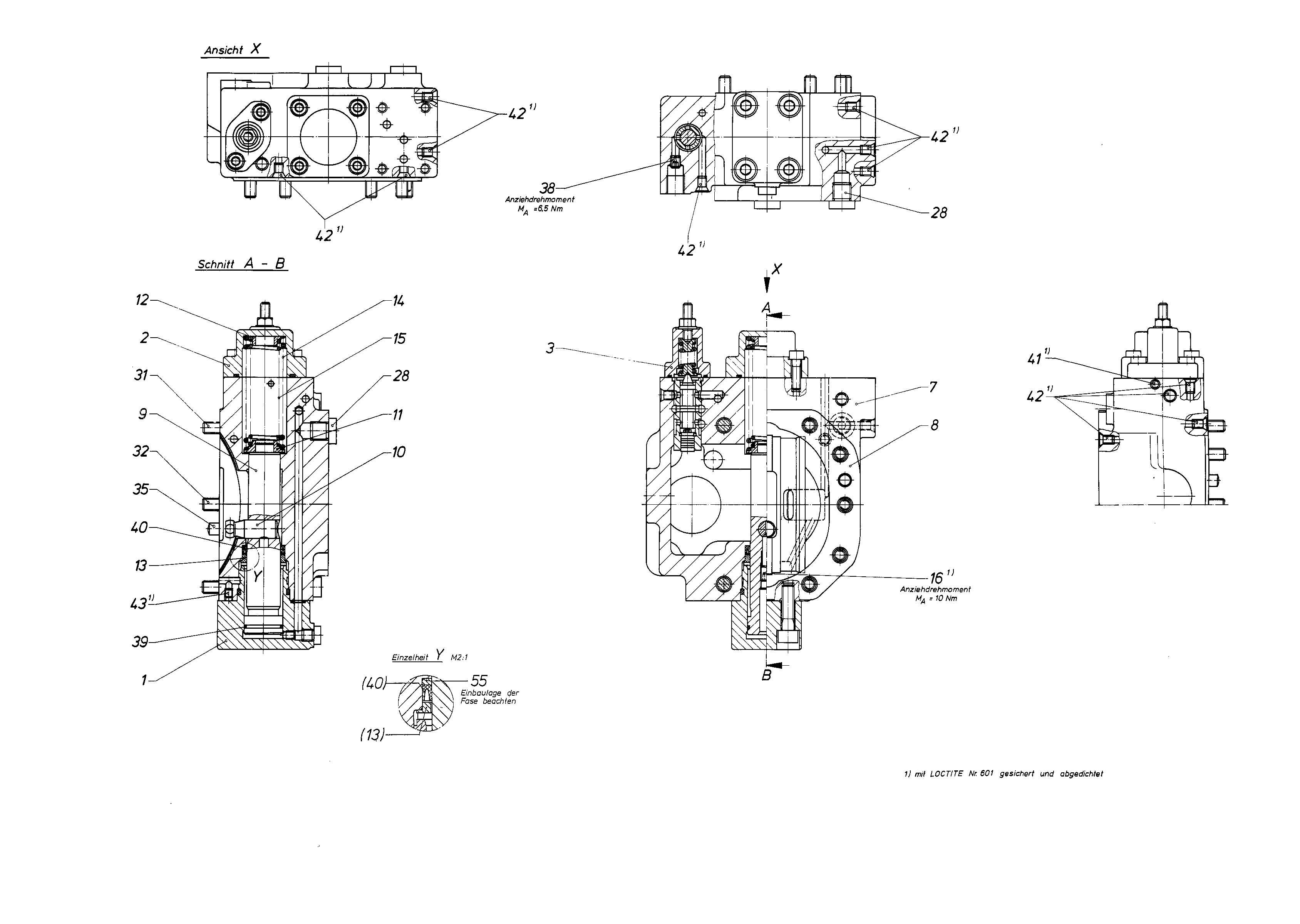

Assembly
CONTROLR909419852
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909416967 | COVER Assembly parts list →L | 1 | ||
| R909428310 | COVER Assembly parts list →L | 1 | ||
| 3 | R909419809 | CONTROL PART Assembly parts list →L | 1 | |
| R909419705 | COVER PLATE, COUNTER CLOCKWISE | 1 | ||
| 8 | R902024641 | SEALD | 1 | |
| 9 | R909425513 | POSITIONING PISTON | 1 | |
| R909425515 | POSITIONING STUD | 1 | ||
| 11 | R909417663 | SPRING DISK | 1 | |
| 12 | R909417662 | SPRING DISK | 1 | |
| 13 | R909424385 | RING | 1 | |
| R909417738 | COMPRESSION SPRING | 1 | ||
| R909417739 | COMPRESSION SPRING | 1 | ||
| 16 | R909409589 | SETSCREW | 1 | |
| R909151692 | SCREW PLUGD | 2 | ||
| 31 | R909083049 | SOCKET HEAD CAP SCREW | 7 | |
| 32 | R909083036 | SOCKET HEAD CAP SCREW | 1 | |
| 35 | R913009667 | STRAIGHT PIN | 2 | |
| 38 | R909156492 | NOZZLE | 1 | |
| R909156962 | R-RINGD | 1 | ||
| R909156545 | ROD SEALD | 1 | ||
| R900078091 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 6 | ||
| 43 | R909083489 | SETSCREW | 1 | |
| R909424386 | BACKUP RING | 1 |
