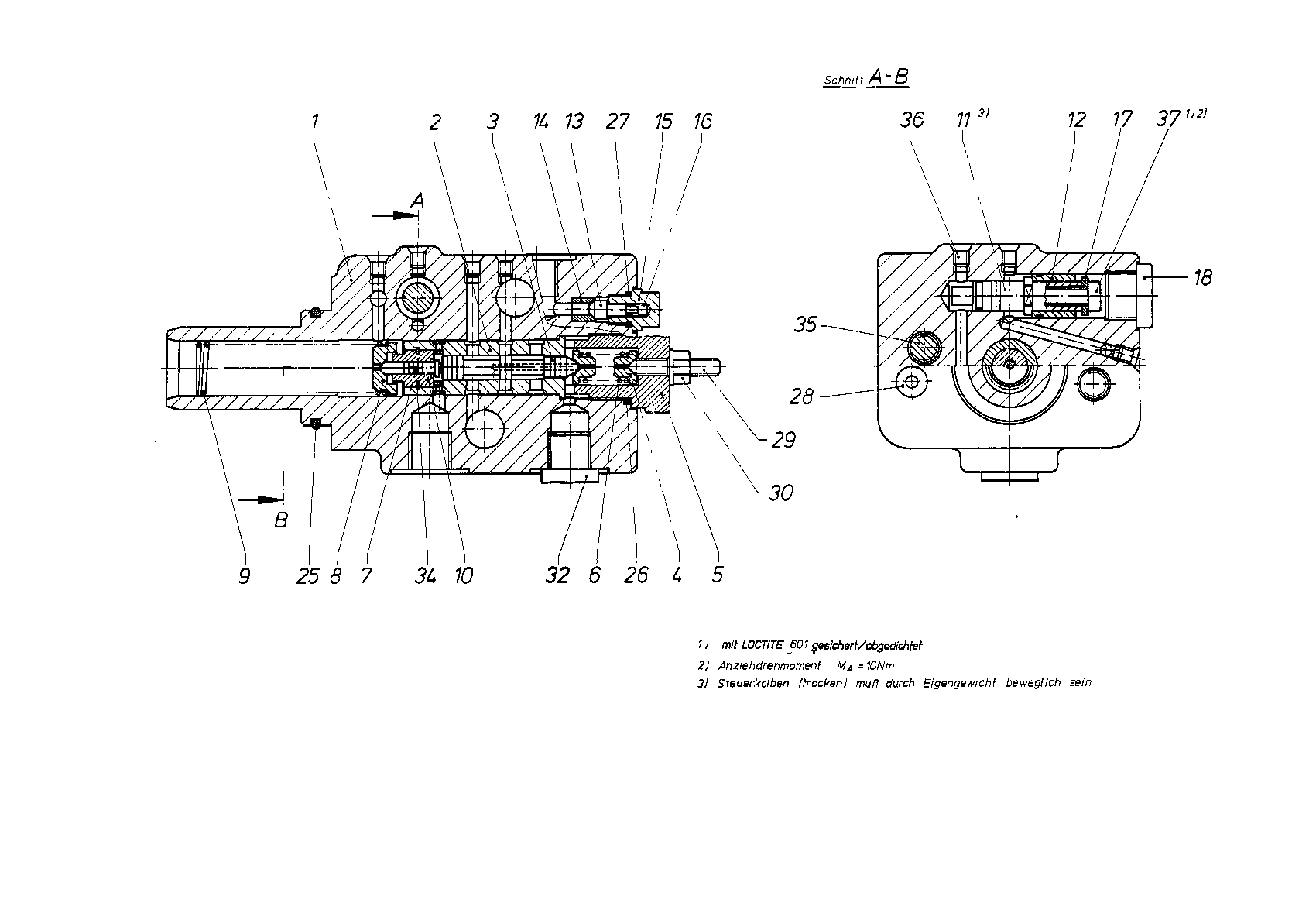

Assembly
CONTROL MODULER909420202
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R902196734 | HOUSING | 1 | |
| 2 | R909425436 | CONTROL SLEEVE | 1 | |
| R909425437 | CONTROL PISTON | 1 | ||
| 4 | R909417378 | SPRING DISK | 2 | |
| 5 | R909417379 | SCREW PLUG | 1 | |
| 6 | R909650863 | COMPRESSION SPRING | 1 | |
| R909426556 | PIN | 1 | ||
| 8 | R909420205 | SPRING DISK | 1 | |
| R909420430 | COMPRESSION SPRING | 1 | ||
| 10 | R909426555 | GUIDE BUSHING | 1 | |
| 11 | R909421486 | CONTROL PISTON | 1 | |
| R909422252 | INDEXING BUSHING | 1 | ||
| 13 | R909415579 | VALVE CONE | 1 | |
| 14 | R909415815 | BUSHING | 1 | |
| 15 | R909415580 | SCREW PLUG | 1 | |
| R909060519 | COMPRESSION SPRING | 1 | ||
| 17 | R909421487 | WASHER | 1 | |
| R909425894 | SCREW PLUG | 1 | ||
| 25 | R909086730 | O-RINGD | 1 | |
| 26 | R909083758 | O-RINGD | 1 | |
| 27 | R909086498 | O-RINGD | 1 | |
| R909086380 | O-RINGD | 2 | ||
| 29 | R909154140 | SETSCREW | 1 | |
| 30 | R909152425 | SEALING NUTD | 1 | |
| 32 | R909151979 | SCREW PLUGD | 1 | |
| 34 | R909157000 | SNAP RING | 1 | |
| 35 | R909083066 | SOCKET HEAD CAP SCREW | 2 | |
| 36 | R909831317 | DOUBLE BREAK-OFF PLUG | 7 | |
| 37 | R909083188 | SOCKET HEAD CAP SCREW | 1 |
