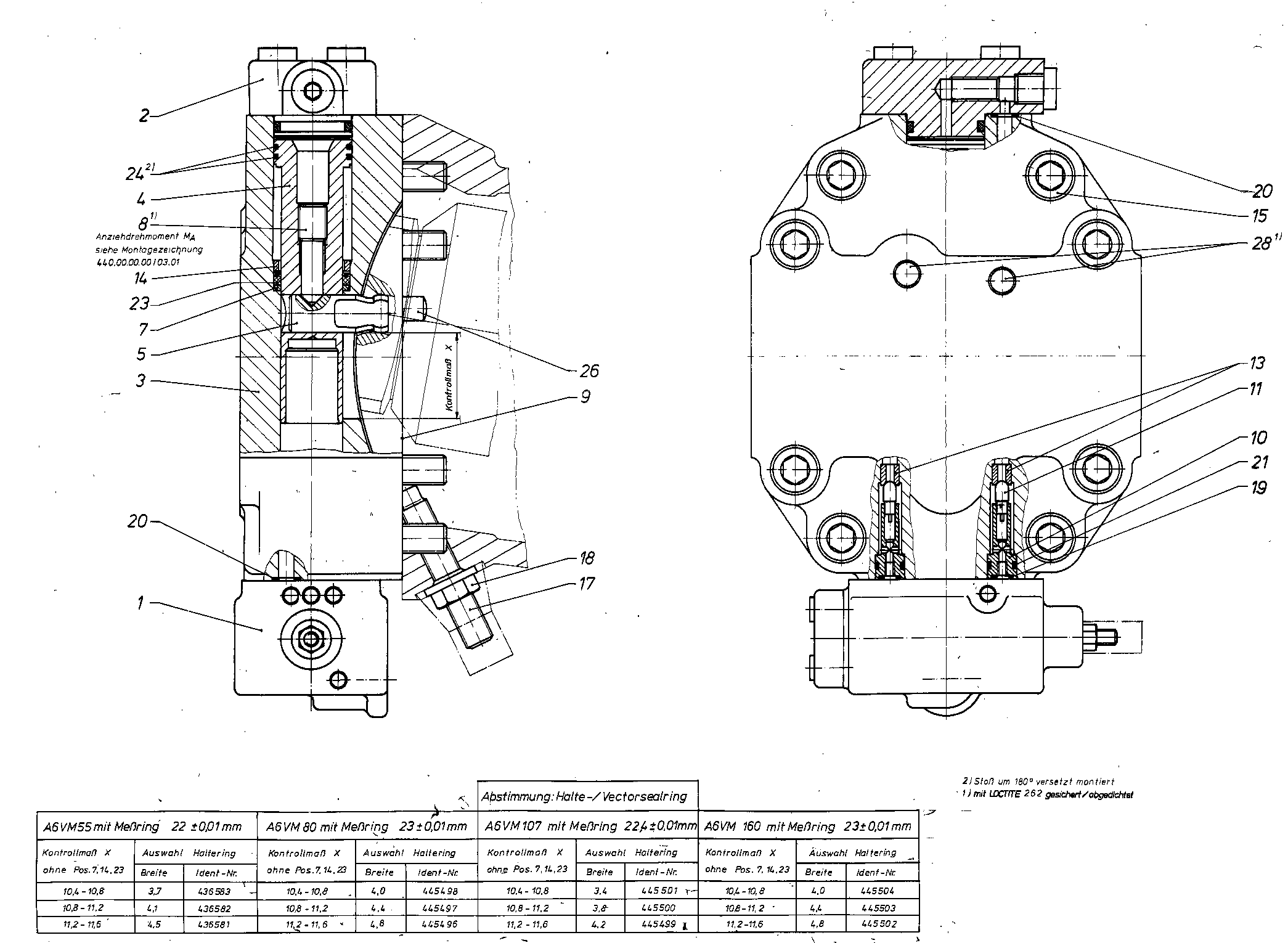

Assembly
CONTROLR909420244
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909420235 | CONTROL PART Assembly parts list →L | 1 | ||
| R909423397 | COVER Assembly parts list →L | 1 | ||
| R909422933 | COVER PLATE | 1 | ||
| R909422939 | POSITIONING PISTON | 1 | ||
| R909422940 | POSITIONING STUD | 1 | ||
| R909435814 | BACKUP RING | 1 | ||
| R909445015 | SETSCREW | 1 | ||
| R902011852 | SEALD | 1 | ||
| R909422896 | VALVE GUIDE | 2 | ||
| R909426662 | BOLT | 2 | ||
| R902209845 | BUSHING | 2 | ||
| R909436581 | RETAINING RING | 1 | ||
| R909436582 | RETAINING RING | 1 | ||
| R909436583 | RETAINING RING | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 8 | ||
| R909447003 | SETSCREW Assembly parts list →L | 1 | ||
| R909152426 | SEALING NUTD | 1 | ||
| R909157248 | O-RINGD | 2 | ||
| R909085577 | O-RINGD | 3 | ||
| R909087877 | O-RINGD | 2 | ||
| R909830346 | ROD SEALD | 1 | ||
| R902602840 | STEEL SEALING RINGD | 2 | ||
| R913009667 | STRAIGHT PIN | 2 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 1 |
