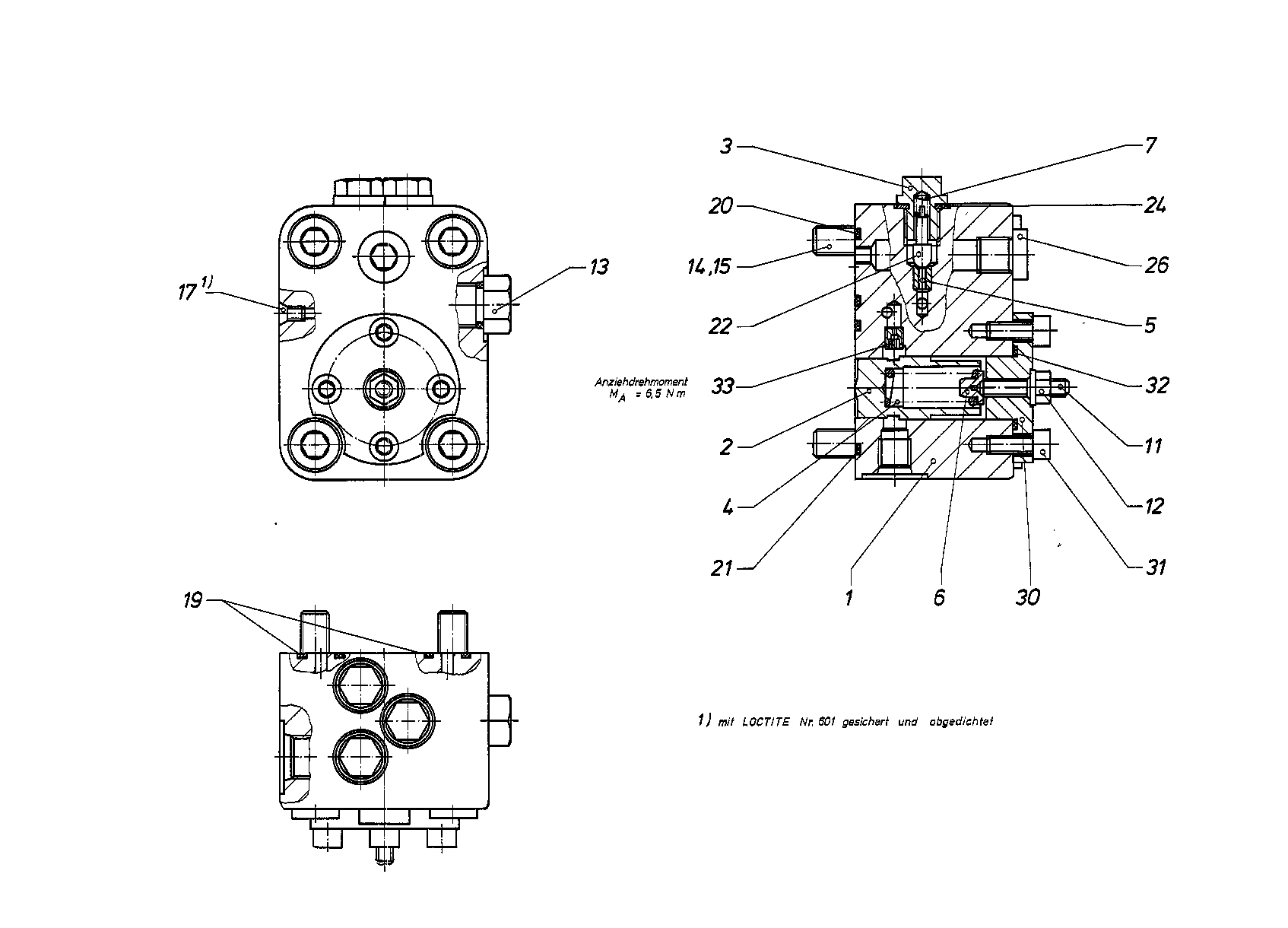

Assembly
COVERR909420325
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909420286 | COVER | 1 | |
| 2 | R909420288 | CONTROL PISTON | 1 | |
| 3 | R902035187 | SCREW PLUG | 3 | |
| R909077200 | COMPRESSION SPRING | 1 | ||
| 5 | R909076095 | BUSHING | 3 | |
| R909417605 | SPRING DISK | 1 | ||
| 7 | R909060383 | COMPRESSION SPRING | 3 | |
| 11 | R909420992 | SETSCREW | 1 | |
| R909152425 | SEALING NUTD | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909083068 | SOCKET HEAD CAP SCREW | 4 | ||
| R909083251 | SPRING LOCK WASHER | 4 | ||
| 17 | R909831317 | DOUBLE BREAK-OFF PLUG | 1 | |
| R909086729 | O-RINGD | 2 | ||
| R909083760 | O-RINGD | 1 | ||
| R909085545 | O-RINGD | 1 | ||
| R909426662 | BOLT | 3 | ||
| 24 | R909150665 | SEAL RINGD | 3 | |
| R909151692 | SCREW PLUGD | 1 | ||
| R909420287 | COVER | 1 | ||
| 31 | R909083019 | SOCKET HEAD CAP SCREW | 4 | |
| R909086517 | O-RINGD | 1 | ||
| 33 | R909156492 | NOZZLE | 1 |
