Assembly

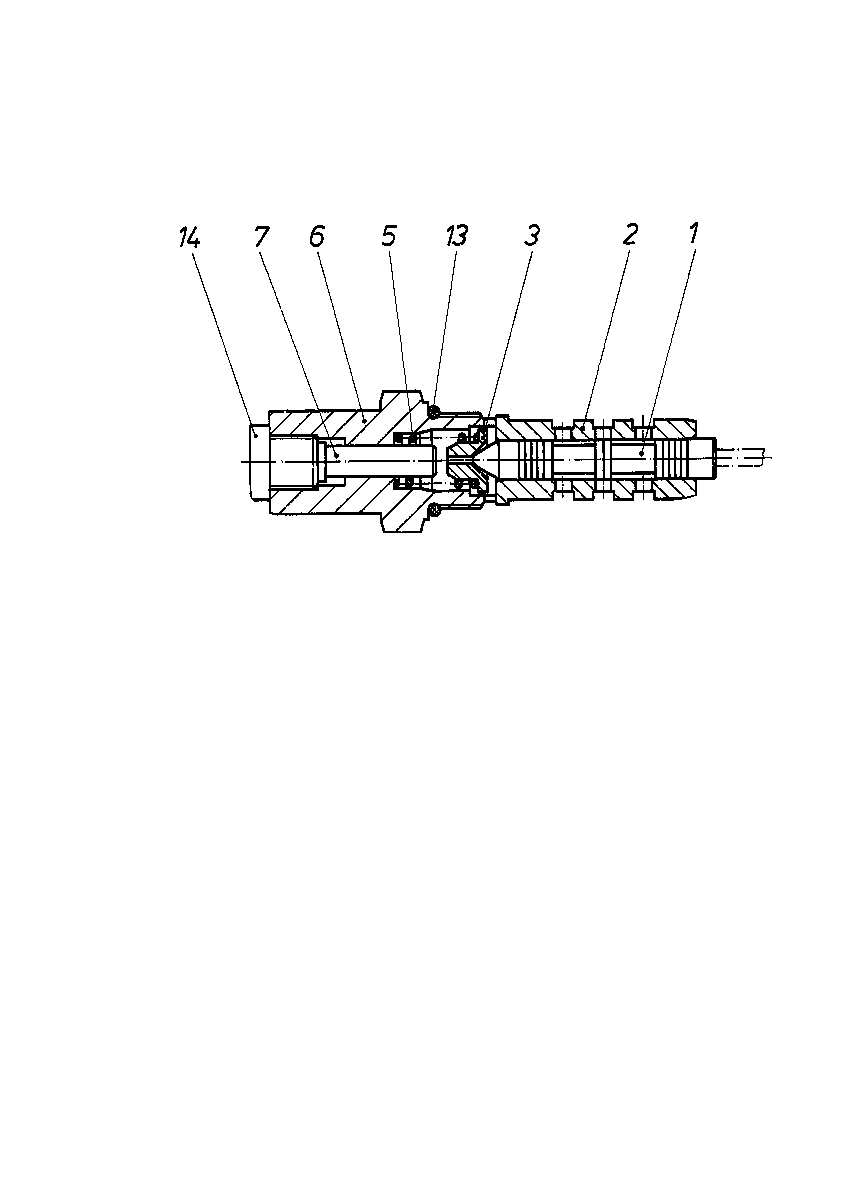

CONTROL PARTR909420345
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 1 | R909418639 | CONTROL PISTON | 1 | |
| 2 | R909418638 | CONTROL SLEEVE | 1 | |
| 3 | R909421369 | SPRING DISK | 1 | |
| 5 | R909413138 | COMPRESSION SPRING | 1 | |
| 6 | R909421693 | SCREW PLUG | 1 | |
| 7 | R909421692 | COMMAND PISTON | 1 | |
| 13 | R909086517 | O-RINGD | 1 | |
| R909151979 | SCREW PLUGD | 1 |
