Assembly

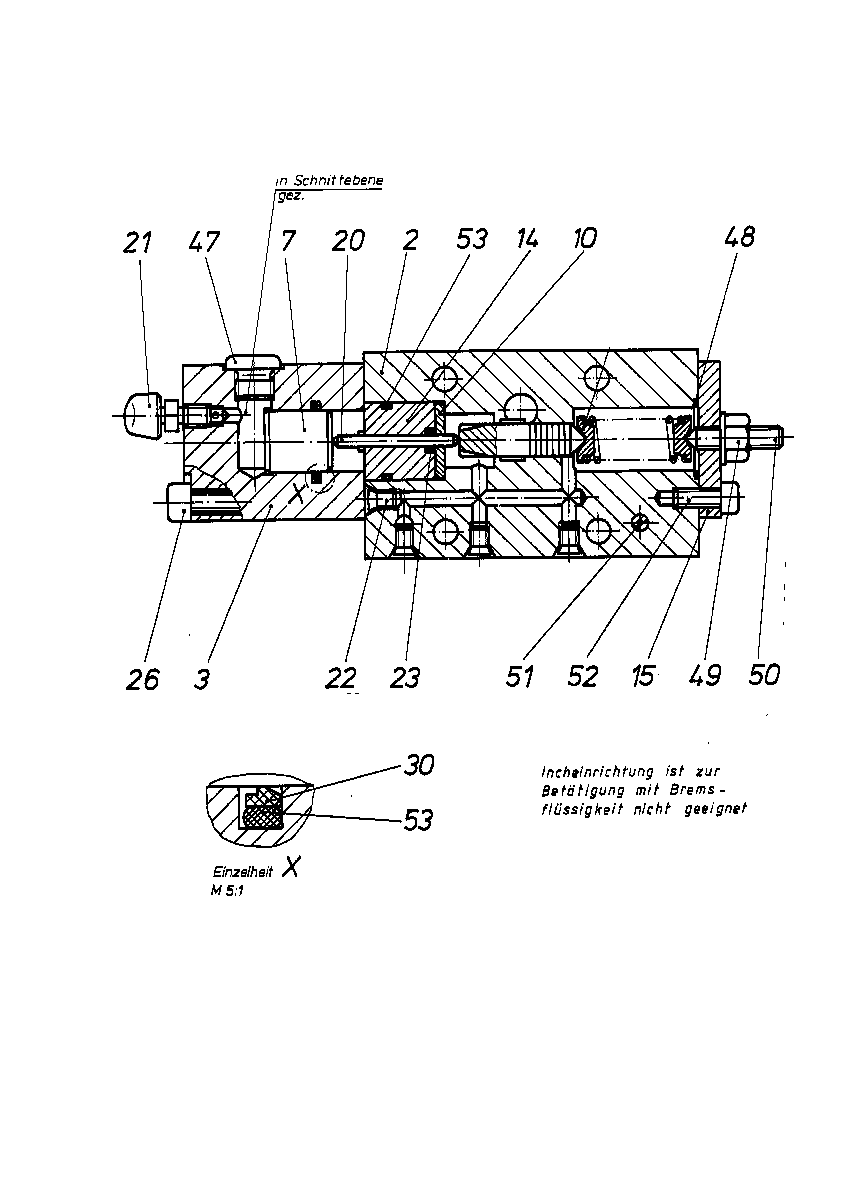

INCHING DEVICER909420353
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| 2 | R909419957 | INCHING HOUSING | 1 | |
| 3 | R902015075 | HOUSING COVER | 1 | |
| 7 | R909401708 | PISTON | 1 | |
| R909404505 | WASHER | 1 | ||
| 14 | R909445044 | SEAL BUSHING | 1 | |
| 15 | R909404507 | COVER | 1 | |
| 17 | R909445036 | STOP DISC | 1 | |
| 20 | R909439854 | STRAIGHT PIN | 1 | |
| R909831012 | BLEEDER VALVE | 1 | ||
| 22 | — | DOUBLE BREAK-OFF PLUG | 2 | |
| 23 | R902600639 | O-RINGD | 1 | |
| 26 | R909083028 | SOCKET HEAD CAP SCREW | 2 | |
| R909153892 | ROD SEALD | 1 | ||
| R902602203 | SEAL SCREW | 1 | ||
| R909083734 | O-RINGD | 1 | ||
| 49 | R909152425 | SEALING NUTD | 1 | |
| 50 | R909153284 | SETSCREW | 1 | |
| 51 | R909156494 | NOZZLE | 1 | |
| 52 | R909083009 | SOCKET HEAD CAP SCREW | 2 | |
| R909084939 | O-RINGD | 2 |
