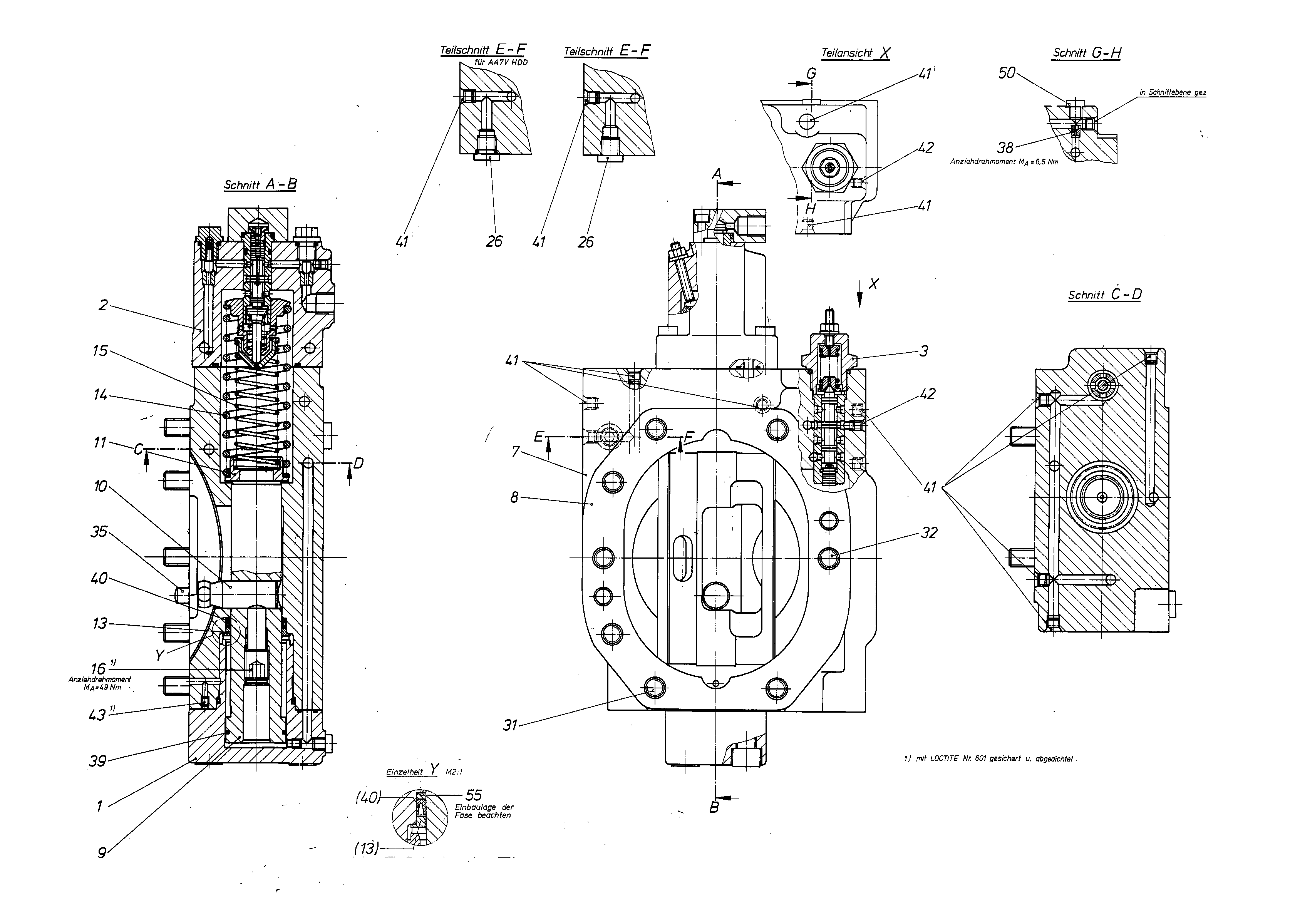

Assembly
CONTROLR909420503
| Pos. | Number | Name | Qty | Add to inquiry |
|---|---|---|---|---|
| R909413253 | COVER Assembly parts list →L | 1 | ||
| R909424742 | CONTROL MODULE Assembly parts list →L | 1 | ||
| R909416172 | CONTROL PART Assembly parts list →L | 1 | ||
| R909420504 | COVER PLATE, COUNTER CLOCKWISE Assembly parts list →L | 1 | ||
| R902011851 | SEALD | 1 | ||
| R909425471 | POSITIONING PISTON | 1 | ||
| R909425459 | POSITIONING STUD | 1 | ||
| R909413241 | SPRING DISK | 1 | ||
| R909424360 | RING | 1 | ||
| R909413494 | COMPRESSION SPRING | 1 | ||
| R909414332 | COMPRESSION SPRING | 1 | ||
| R909408958 | SETSCREW | 1 | ||
| R909153371 | SCREW PLUGD | 1 | ||
| R909083101 | SOCKET HEAD CAP SCREW | 7 | ||
| R909083090 | SOCKET HEAD CAP SCREW | 1 | ||
| R913009669 | STRAIGHT PIN | 2 | ||
| R909156492 | NOZZLE | 1 | ||
| R909156479 | R-RINGD | 1 | ||
| R909156543 | ROD SEALD | 1 | ||
| R909831319 | DOUBLE BREAK-OFF PLUG | 6 | ||
| R909831318 | DOUBLE BREAK-OFF PLUG | 1 | ||
| R909083489 | SETSCREW | 1 | ||
| R909154024 | SCREW PLUGD | 1 | ||
| R909424361 | BACKUP RING | 1 |
